Schneider Electric SURT002

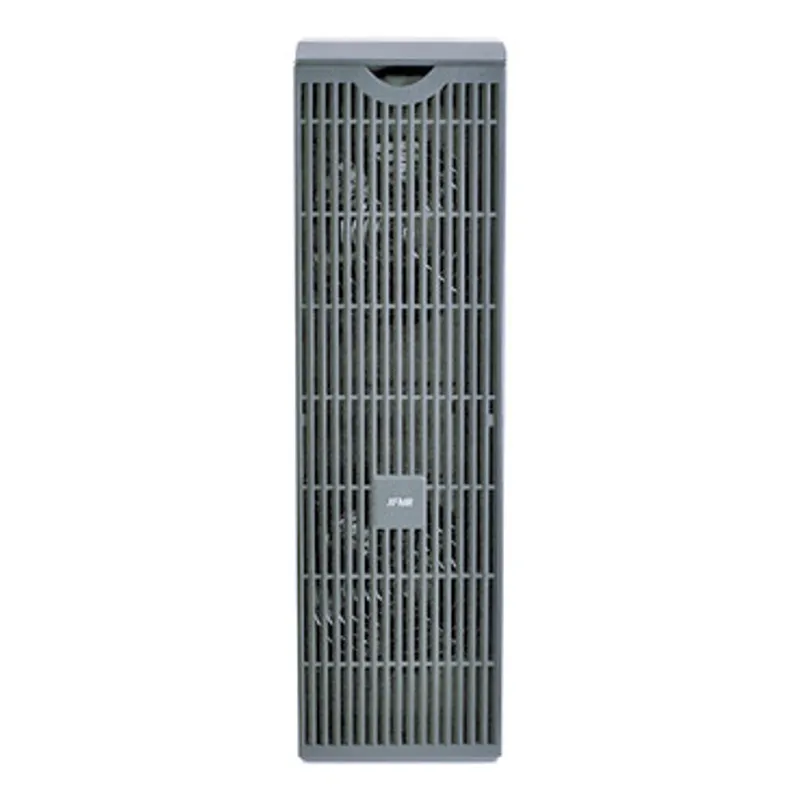

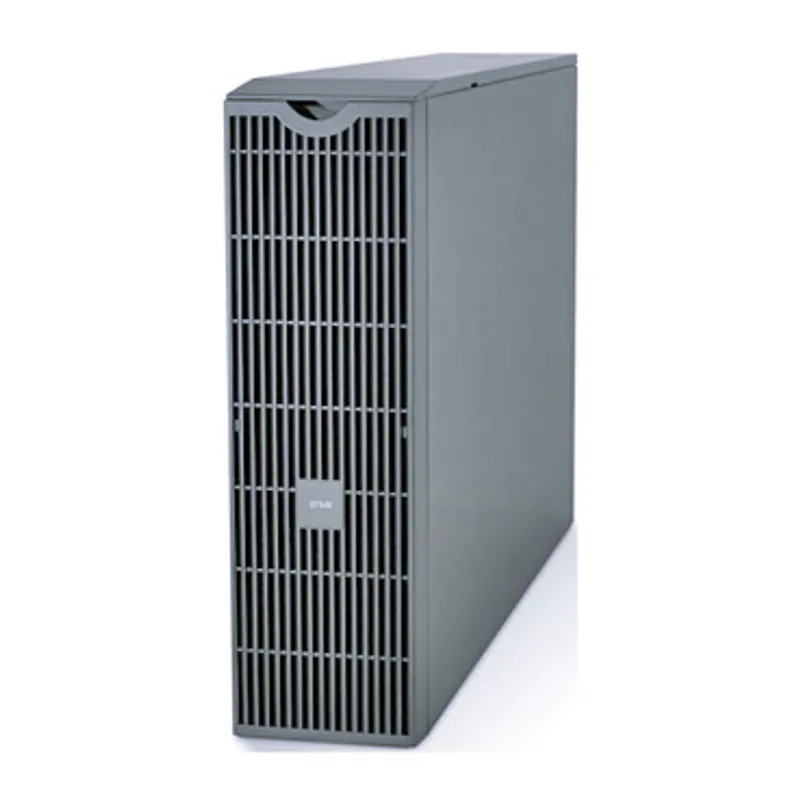

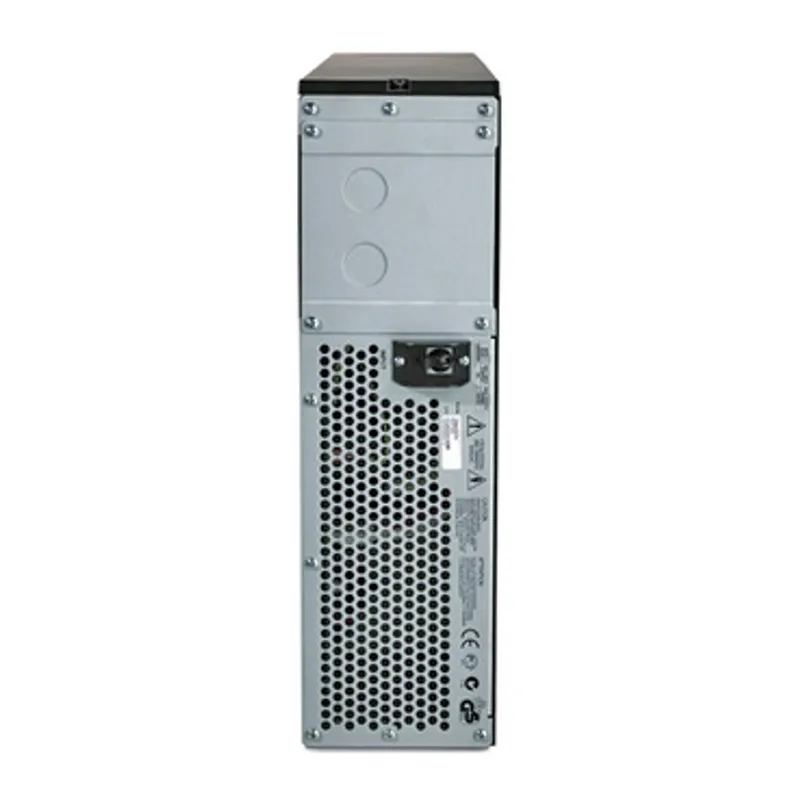

APC Smart-UPS RT Isolation Transformer, 5000VA, 230V In/Out, 1x hard wire 3-wire (H N + E)
- MPN
- SURT002
- EAN
- 0731304217794
- Category
- Smart-UPS Accessories
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric SURT002?
This accessory solution SURT002 to tailor the Smart-UPS to meet your specific needs.
Specifications
Specifications
| Presentation | Accessory solutions to tailor the Smart-UPS to meet your specific needs. |
| Main Input Voltage | 230 V |
| Product or component type | Transformer |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V, 240 V |
| Output connector type | Hard wire 3-wire (H N + E) for 1 zone(s) |
| Number of rack unit | 3U |
| Number of cables | 1 |
| Provided equipment | Installation guide, Mounting hardware, User manual |
| Range of product | Smart-UPS Accessories |
| Colour | Black |
| Height | 130 mm |
| Width | 432 mm |
| Depth | 660 mm |
| Net weight | 56.82 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted with kit |
| Input current limits | 30 A |
| Load capacity | 5000 VA |
| Network frequency | 50/60 Hz |
| Number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| Product certifications | C-Tick, CE |
| Standards | EN 50091-1, EN 55022 class B, EN 55024, EN 60950, EN 61000-3-2 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -25…65 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…15240 m |
| SCC14 | 10731304217791 |
Packaging
| Package 1 | 1 PCE, 60.3 cm × 98 cm × 34.7 cm (L × W × H), 63.64 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
SURT002: frequently asked questions
When can SURT002 be shipped?
SURT002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SURT002 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SURT002 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SURT002, subject to availability and destination.
