What is the Schneider Electric SSL1D03BDPR?

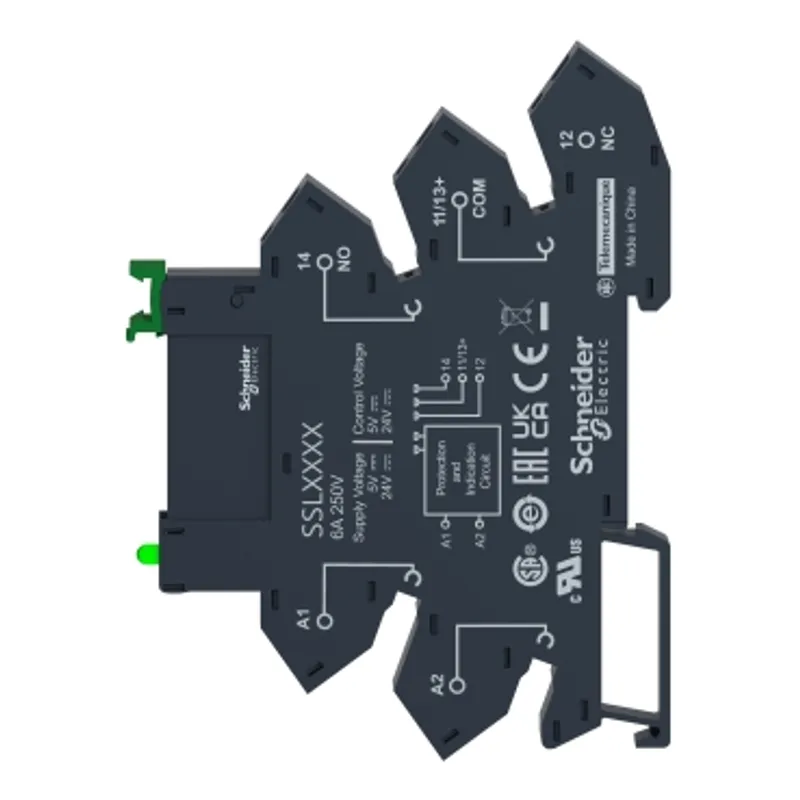

This slim interface solid state relay belongs to the Schneider Electric Harmony solid state relays range. This is a pre-assembled relay mounted on a socket that has a built-in reverse polarity protection circuit and a LED indicator. This is a 3.5A DC switching slim relay with 16Vdc to 30Vdc input and 1Vdc to 24Vdc output. This pre-assembled relay is a ready-to-go package saving assembly time. This 6mm relay has an IP67 water resistant encapsulation and a IP20 socket protection. The relay socket connection is by spring terminal type with a lever for locking or releasing the relay. This SSL weighs 0.033Kg. It is the ideal solution for packaging, HVAC, injection molding, textile machines, medical equipment, and heating control applications. It conforms to international standard and certifications like IEC, UL, CSA, CE, ROHS, GOST, EN, and REACH. It is sold in lots of 30. Thiss is a complete range of control input and load output configurations for both AC and DC switching applications. The pre-assembled range in SSL brings you easier selection, time-saving in installation and robustness.

Specifications

Specifications

Range of productHarmony Solid State Relays
Device short nameSSL
Network number of phases1 phase
[Uc] control circuit voltage16...30 V DC
Connections - terminalsFlexible cable with cable end,clamping capacity: 0.2...1.5 mm² (AWG 24...AWG 16), Solid cable with cable end,clamping capacity: 0.2...1.5 mm² (AWG 24...AWG 16)
Output switching modeDC switching
Mounting supportSpring socket
[In] rated current3.5 A
Output voltage1...24 V DC
CLAMPING FORCE10...40 N.m
Capacitance unbalance1.5 pF input/output
Minimum switching voltage16 V DC turn-on
Maximum switching voltage5 V DC turn-off
Input impedance2.67 kOhm
Solid state output typeMosfet output, DC switching
Load current0.001…3.5 A
Transient Overvoltage30 V DC
Surge current9 A for 10 ms
Maximum voltage drop<0.5 V on-state
Maximum leakage current0.001 mA off-state
Response time0.25 ms (turn-on), 0.12 ms (turn-off)
Overvoltage categoryIII

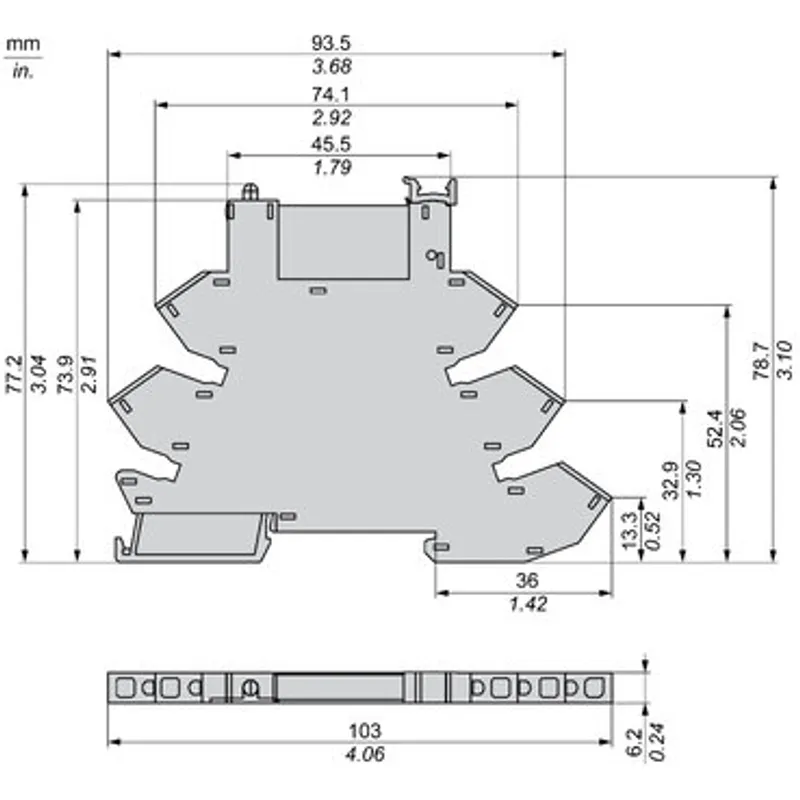

Width6.2 mm
Height104.6 mm
Depth79.5 mm
Net weight0.0285 kg
Device presentationComplete product
Flame retardanceV0 conforming to UL 94
Dielectric strength2500 V for input/output
Pollution degree2
StandardsIEC 60950-1, IEC 61000, IEC 62314, IEC 61984, EN 61984
Product certificationsUL, CSA, CE, UL 508, CSA22.2 No. 14-10, GOST
MarkingCURus, CSA, CE, EAC
IP degree of protectionIP20
Ambient air temperature for operation-20…70 °C
Ambient air temperature for storage-20…85 °C

Packaging

Package 11 PCE, 10.500 cm × 8.000 cm × 0.700 cm (L × W × H), 27.000 g
Package 230 BB1, 20.000 cm × 11.000 cm × 9.200 cm (L × W × H), 892.000 g
Package 3270 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 8.730 kg
