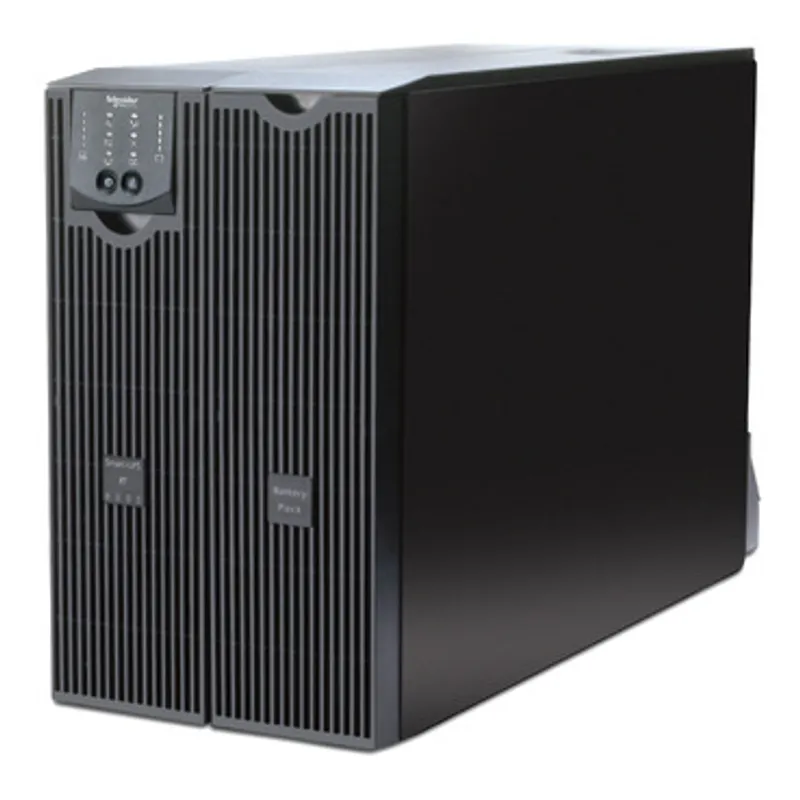

Schneider Electric SR18KXIET
On-Line UPS 8000VA, 230/400V, 4x IEC 60320 C13 & 6x IEC Jumpers & 4x IEC 60320 C19 outlets
- MPN
- SR18KXIET
- EAN
- 0731304315810
- Category
- Smart-UPS On-Line SR1
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric SR18KXIET?
Proven Industrial UPS SR18KXIET provides power protection for control applications and harsh environments.
Specifications
Specifications
| Presentation | Proven Industrial UPS power protection for control applications and harsh environments. |
| Max. Capacity Used | |
| Main Input Voltage | 230 V, 400 V 3 phases |
| Input voltage | 220 V, 240 V |
| Input harmonic distortion | Less than 7 % for full load |
| Input voltage limits | 160...280 V |
| Number of input connectors | 1 hard wire 3-wire (1P + N + E), 1 hard wire 5-wire (3P + N + E) |
| Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
| Output voltage | 220 V, 240 V |
| Rated power in W | 6400 W |
| rated power in VA | 8000 VA |
| Output connection type | 4 IEC 60320 C13, 6 IEC Jumpers, 4 IEC 60320 C19 |
| Output connector type | Hard wire 3-wire (H N + E) for 1 zone(s) |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 3 % |
| Maximum configurable power in VA | 8000 VA |
| Maximum configurable power in W | 6400 W |
| UPS type | On-Line |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Emergency power off | Yes |
| Free slots | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rate | 1265 J |
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 6U |
| Colour | Black |
| Height | 432 mm |
| Width | 263 mm |
| Depth | 736 mm |
| Net weight | 110.68 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Provided equipment | CD with software, Service manual, Smart UPS signalling RS-232 cable, User manual |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certifications | C-Tick, CE, GOST, VDE |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
| Acoustic level | 55 dBA |
| Heat dissipation | 1603 Btu/h |
| Operating altitude | 0...10000 ft |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery type | Lead-acid battery |
| Extended runtime | 1 |
| Number of battery filled slots | 4 |
| Battery recharge time | 2.2 h |
| Number of battery replacement quantity | 2 |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC140 |
| Battery charger power | 782 W rated |
Packaging
| Package 1 | 1 PCE, 99.100 cm × 59.700 cm × 55.200 cm (L × W × H), 128.820 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
SR18KXIET: frequently asked questions
When can SR18KXIET be shipped?
SR18KXIET is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SR18KXIET in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SR18KXIET and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SR18KXIET, subject to availability and destination.
