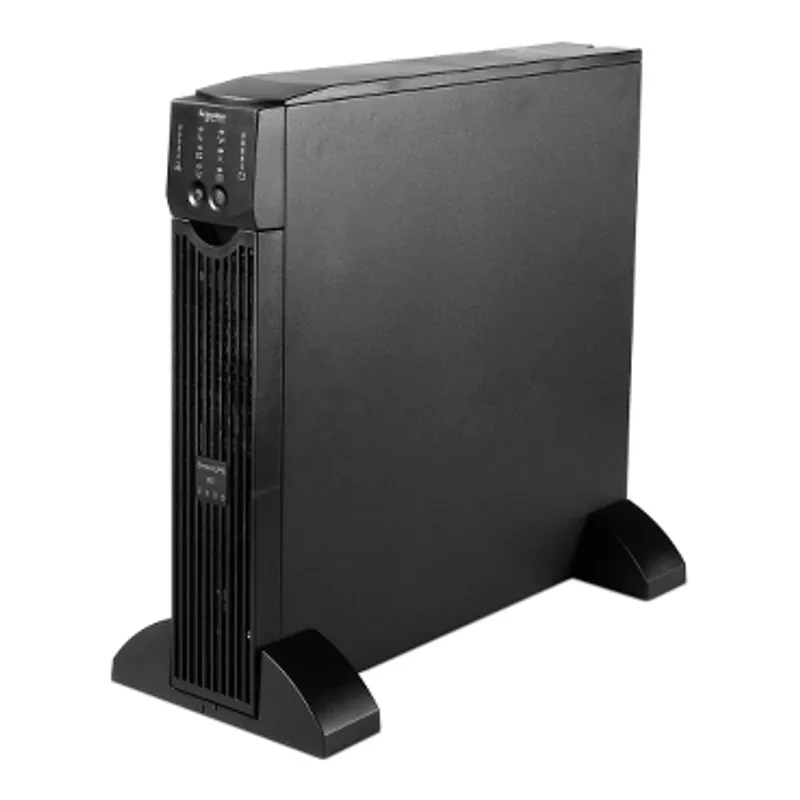

On-Line UPS 2000VA, 230V, 6x IEC 60320 C13 & 2x IEC Jumpers outlets
Proven Industrial UPS power protection for control applications and harsh environments.
| Presentation | Proven Industrial UPS power protection for control applications and harsh environments. |
| Max. Capacity Used | |
| Main Input Voltage | 230 V |
| Input voltage | 220 V, 240 V |
| Input Connection Type | BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P |
| Input voltage limits | 160...280 V |
| Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
| Output voltage | 220 V, 240 V |
| Rated power in W | 1400 W |
| rated power in VA | 2000 VA |
| Output connection type | 6 IEC 60320 C13, 2 IEC Jumpers |
| Bypass type | Built-in bypass |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 3 % |
| Maximum configurable power in VA | 2000 VA |
| Maximum configurable power in W | 1400 W |
| UPS type | On-Line |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Emergency power off | Optional |
| Free slots | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rate | 420 J |
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 2U |
| Cable length | 2.4 m |
| Number of cables | 1 |
| Colour | Black |
| Height | 432 mm |
| Width | 85 mm |
| Depth | 483 mm |
| Net weight | 25 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Provided equipment | CD with software, Smart UPS signalling RS-232 cable, User manual |
| Number of power module | 1400 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certifications | C-Tick, CE, GOST, VDE |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -20…50 °C |
| Storage altitude | 0…15240 m |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
| Acoustic level | 50 dBA |
| Heat dissipation | 543 Btu/h |
| Operating altitude | 0...10000 ft |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery type | Lead-acid battery |
| Extended runtime | 1 |
| Number of battery filled slots | 1 |
| Number of battery free slots | 0 |
| Battery recharge time | 4 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | RBC31 |
| Battery charger power | 79 W rated |
| Package 1 | 1 PCE, 63.000 cm × 59.400 cm × 28.600 cm (L × W × H), 29.820 kg |
| Package 2 | 6 P12, 120.000 cm × 80.000 cm × 117.000 cm (L × W × H), 225.000 kg |
