Schneider Electric SR11KXIET

On-Line UPS 1000VA, 230V, 6x IEC 60320 C13 & 2x IEC Jumpers outlets

MPN
SR11KXIET
EAN
0731304315841
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

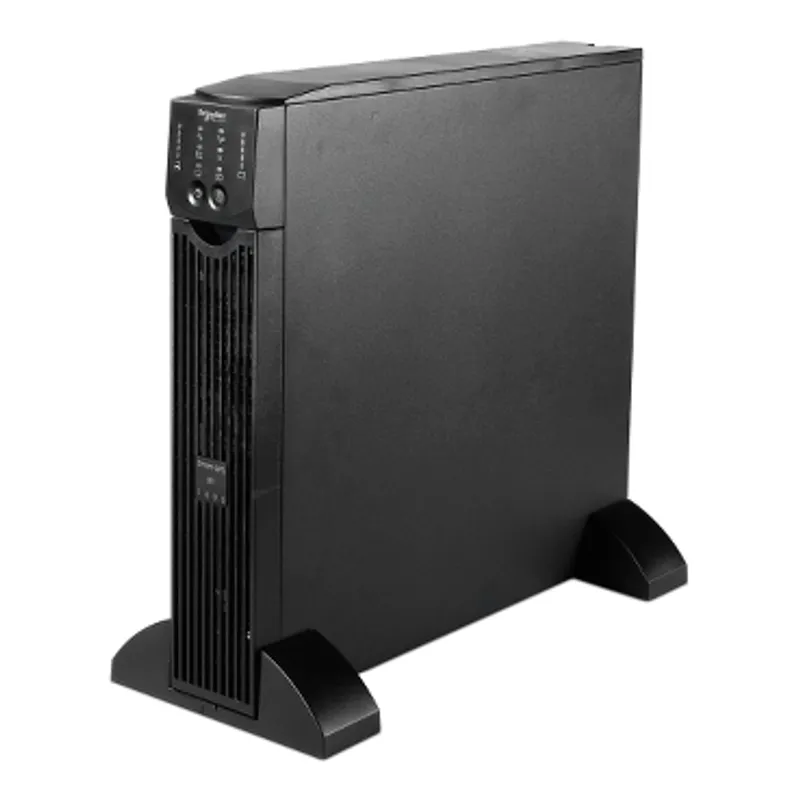

What is the Schneider Electric SR11KXIET?

It is a double conversion online UPS with a power rating of 1000VA and output power capacity of 700 watts. It operates at a nominal voltage of 230V and includes multiple output connections such as 6 IEC 60320 C13 and 2 IEC jumpers. The UPS features double conversion online technology and sine wave output.

Specifications

Specifications

PresentationProven Industrial UPS power protection for control applications and harsh environments.
Max. Capacity Used
Main Input Voltage230 V
Input voltage220 V, 240 V
Input Connection TypeIEC 60320 C14
Input voltage limits160...280 V
Network frequency50/60 Hz +/- 5 Hz auto-sensing
Output voltage220 V, 240 V
Rated power in W700 W
rated power in VA1000 VA
Output connection type6 IEC 60320 C13, 2 IEC Jumpers
Bypass typeBuilt-in bypass
Crest factor3 : 1
Harmonic distortionLess than 3 %
Maximum configurable power in VA1000 VA
Maximum configurable power in W700 W
UPS typeOn-Line
Wave typeSine wave
Output frequency50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains
Additional informationConfigurable for 220 : 230 or 240 nominal output voltage
Emergency power offOptional
Free slots1
AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge energy rate420 J
Noise suppressionFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Number of rack unit2U
Number of cables1
ColourBlack
Height432 mm
Width85 mm
Depth483 mm
Net weight23 kg
Mounting locationFront
Mounting preferenceLower
Mounting modeNot rack-mountable
Two post mountable0
USB compatibleNo
Provided equipmentCD with software, Smart UPS signalling RS-232 cable, User manual
Number of power module700
Number of power module filled slots0
Number of power module free slots0
RedundantNo
Product or component typeUninterruptible power supply (UPS)
Product certificationsC-Tick, CE, GOST, VDE
StandardsEN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation0…40 °C
Ambient air temperature for storage-20…50 °C
Storage altitude0…15240 m
IP degree of protectionIP20
Relative humidity0…95 % non-condensing
Storage Relative Humidity0…95 % non-condensing
Acoustic level50 dBA
Heat dissipation324 Btu/h
Operating altitude0...10000 ft
Run TimeView Runtime Graph
EfficiencyView Efficiency Graph
Battery typeLead-acid battery
Extended runtime1
Number of battery filled slots1
Number of battery free slots0
Battery recharge time3 h
Number of battery replacement quantity1
Battery life3…5 year(s)
Replacement batteryRBC31RBC57JRBC57
Battery charger power109 W rated

Packaging

Package 11 PCE, 59.400 cm × 63.000 cm × 28.600 cm (L × W × H), 27.800 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

SR11KXIET: frequently asked questions

When can SR11KXIET be shipped?

SR11KXIET is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SR11KXIET in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SR11KXIET and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SR11KXIET, subject to availability and destination.
