Home / Schneider Electric / Zelio Logic SR2/SR3 / Schneider Electric SR2A201E
Schneider Electric

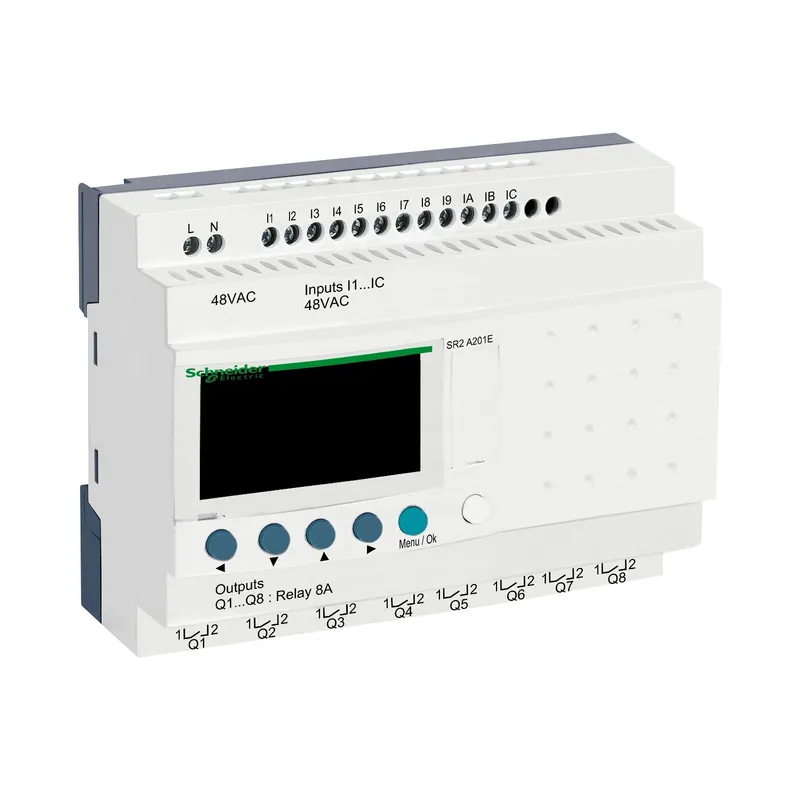

Schneider Electric SR2A201E

Compact smart relay Zelio Logic - 20 I O - 48 V AC - no clock - display

MPN
SR2A201E
EAN
3389119204040
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via

What is the Schneider Electric SR2A201E?

This Zelio Logic SR2 compact smart relay / programmable controller uses a supply voltage of 48V alternating current. It has 20 inputs / outputs with screw-clamp terminals and has an integrated LCD display. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productZelio Logic
Product or component typeCompact smart relay

Complementary

Local displayWith
Number or control scheme lines0…240 with ladder programming
[Us] rated supply voltage48 V AC
Supply voltage limits40.8…52.8 V
Supply frequency50/60 Hz
Maximum supply current110 mA (without extension)
Power consumption in VA5.7 VA without extension
Isolation voltage1780 V
Discrete input number12
Discrete input voltage48 V AC
Discrete input current1.2 mA
Discrete input frequency57...63 Hz; 47...53 Hz
Voltage state 1 guaranteed>= 20 V
Voltage state 0 guaranteed<= 17 V
Current state 1 guaranteed>= 0.5 mA
Current state 0 guaranteed<= 0.4 mA
Analogue input number0
Input impedance24 kOhm
Number of outputs8 relay
Output voltage limits24...250 V AC; 5...30 V DC
Contacts type and compositionNO
Output thermal current8 A for all 8 outputs
Electrical durabilityAC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1; AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1; DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1; DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1
Switching capacity in mA>= 10 mA at 12 V
Operating rate in Hz0.1 Hz (at Ie) for relay output; 10 Hz (no load) for relay output
[Uimp] rated impulse withstand voltage4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
ClockWithout
Response time48 ms with ladder programming (from state 0 to state 1) for discrete input; 50 ms with ladder programming (from state 1 to state 0) for discrete input; 10 ms (from state 0 to state 1) for relay output; 5 ms (from state 1 to state 0) for relay output
Net weight0.38 kg

Environment

Immunity to microbreaks10 ms repeated 20 times

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

SR2A201E: frequently asked questions

When can SR2A201E be shipped?

SR2A201E is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SR2A201E in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SR2A201E and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SR2A201E, subject to availability and destination.

More Schneider Electric parts

Schneider Electric SR18KXIET – On-Line UPS 8000VA, 230/400V, 4x IEC 60320 C13 & 6x IEC Jumpers & 4x IEC 60320 C19 outlets
Schneider Electric
SR18KXIET

On-Line UPS 8000VA, 230/400V, 4x IEC 60320 C13 & 6x IEC Jumpers & 4x IEC 60320 C19 outlets

Schneider Electric SR2A101BD – Compact smart relay, Zelio Logic SR2 SR3, 10 IO, 24V DC, no clock, display
Schneider Electric
SR2A101BD

Compact smart relay, Zelio Logic SR2 SR3, 10 IO, 24V DC, no clock, display

Schneider Electric SR2A101FU – Compact smart relay, Zelio Logic SR2 SR3, 10 IO, 100 to 240V AC, no clock, display
Schneider Electric
SR2A101FU

Compact smart relay, Zelio Logic SR2 SR3, 10 IO, 100 to 240V AC, no clock, display

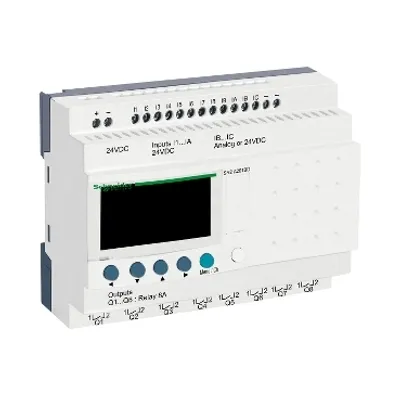

Schneider Electric SR2A201BD – Compact smart relay, Zelio Logic SR2 SR3, 20 IO, 24V DC, no clock, display
