Schneider Electric SBP3000RMI

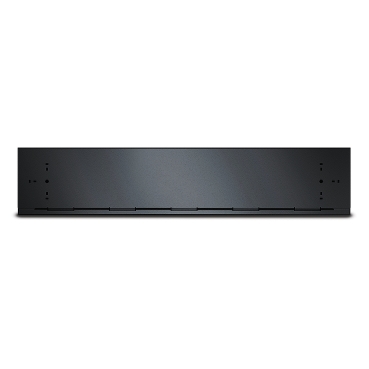

APC SERVICE BYPASS PDU, 230V 16AMP W/ (6) IEC C13 AND (1) C19
- MPN
- SBP3000RMI
- EAN
- 0731304266747
- Category
- Maintenance Bypass Panels
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SBP3000RMI?
The APC SBP3000RMI Service Bypass Panel is a reliable solution designed to ensure uninterrupted power to your critical equipment during UPS maintenance or upgrades. Engineered for compatibility with APC Smart-UPS and Smart-UPS On-Line, this panel requires IEC C20 input and offers (6) IEC C13, (1) IEC C19 outlets. The panel is 2U in height with 230V input and output voltage. This panel comes with a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
Specifications
Specifications
| Main Input Voltage | 230 V |
| Product or component type | Bypass kit |
| Main Output Voltage | 230 V |
| Input Connection Type | IEC 60320 C20 |
| Number of rack unit | 2U |
| Cable length | 2.5 m |
| Number of cables | 1 |
| Provided equipment | User manual, Rack mounting brackets |
| Range of product | Maintenance Bypass Panels |
| Colour | Black |
| Height | 89 mm |
| Width | 432 mm |
| Depth | 76 mm |
| Net weight | 2.09 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| Network frequency | 50/60 Hz |
| permissible voltage | 220…240 V |
| Max line current | 16 A |
| Input current limits | 16 A |
| Load capacity | 3000 VA |
| Power factor | 0…1 |
| Max current draw | 16 A |
| Number of power socket outlets | 7 |
| Protection type | Circuit breaker |
| Power cable length | 1.00 m |
| Efficiency | 99 % |
| Product certifications | VDE |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...15000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…15240 m |
Packaging
| Package 1 | 1 PCE, 46.3 cm × 29.5 cm × 15.1 cm (L × W × H), 3.91 kg |
