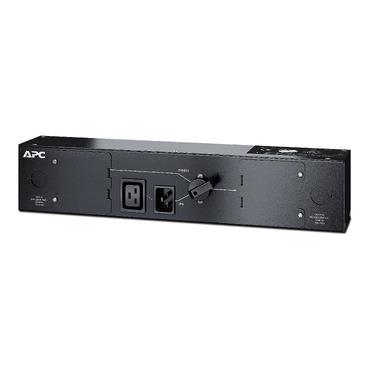

Schneider Electric SBP3000RMHW
APC SERVICE BYPASS PDU, 230V 16AMP Hardwire
- MPN
- SBP3000RMHW
- EAN
- 0731304283225
- Category
- Maintenance Bypass Panels
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SBP3000RMHW?
The APC Service Bypass supports a load capacity of 3000VA. It has a nominal input and output voltage of 230V. The unit is rack-mounted, occupying 2U of rack space, and includes a circuit breaker for protection. It features a hardwire 3-wire (H N + E) connection.
Specifications
Specifications
| Main Input Voltage | 230 V |
| Product or component type | Bypass kit |
| Main Output Voltage | 230 V |
| Output connector type | Hard wire 3-wire (H N + E) for 1 zone(s) |
| Number of rack unit | 2U |
| Provided equipment | User manual, Rack mounting brackets |
| Range of product | Maintenance Bypass Panels |
| Colour | Black |
| Height | 89 mm |
| Width | 432 mm |
| Depth | 76 mm |
| Net weight | 2.27 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| Network frequency | 50/60 Hz |
| permissible voltage | 220…240 V |
| Max line current | 16 A |
| Input current limits | 16 A |
| Load capacity | 3000 VA |
| Power factor | 0…1 |
| Max current draw | 16 A |
| Number of power socket outlets | 1 IEC Jumpers |
| Protection type | Circuit breaker |
| Power cable length | 1.00 m |
| Efficiency | 99 % |
| Product certifications | VDE |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...15000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…15240 m |
Packaging
| Package 1 | 1 PCE, 29.5 cm × 46.3 cm × 15.1 cm (L × W × H), 3.45 kg |
| Package 2 | 64 PAL, 120 cm × 100 cm × 135 cm (L × W × H), 225.28 kg |
