Schneider Electric SBP20KRMI4U

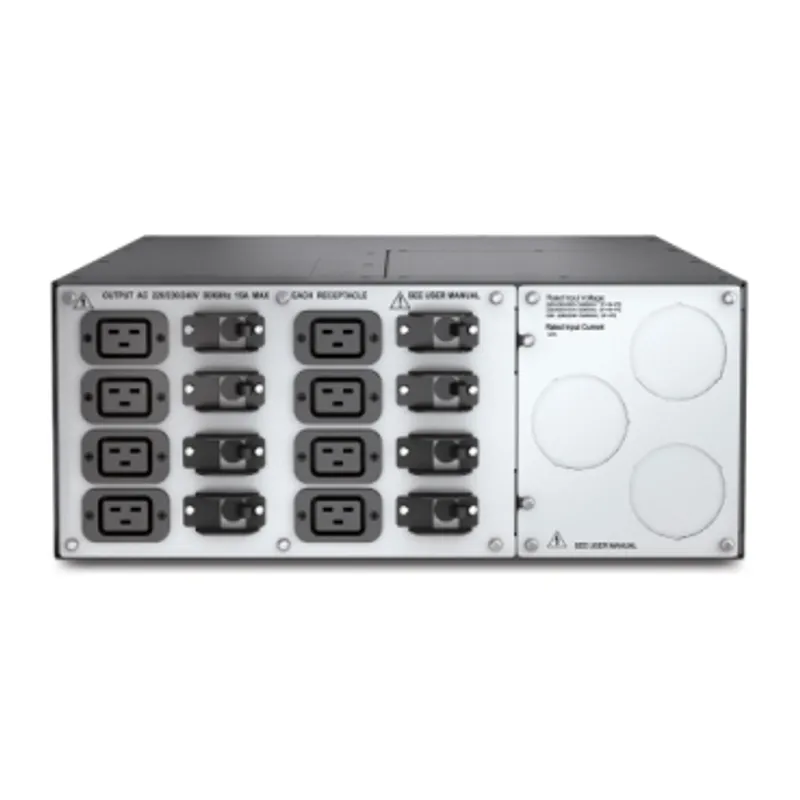

APC Service Bypass Panel, 230V, 125A, 2x hardwire input connectors, 8x IEC 60320 C19 outlets
- MPN
- SBP20KRMI4U
- EAN
- 0731304266969
- Category
- Smart-UPS Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SBP20KRMI4U?
Schneider Electric APC Service Bypass Panel, 230V, 125A, 2x hardwire input connectors, 8x IEC 60320 C19 outlets, manufacturer part number SBP20KRMI4U. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Main Input Voltage | 220 V, 230 V, 240 V, 380 V 3 phases, 400 V 3 phases, 415 V 3 phases |
| Product or component type | Bypass kit |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V, 240 V |
| Number of rack unit | 4U |
| Number of cables | 1 |
| Provided equipment | Installation guide, Rack mounting brackets, User manual |
| Range of product | Smart-UPS Accessories |
| Colour | Black |
| Height | 178 mm |
| Width | 432 mm |
| Depth | 572 mm |
| Net weight | 18.78 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Network frequency | 50/60 Hz |
| Number of input connectors | 1 hard wire 3-wire (1P + N + E), 1 hard wire 5 wire (3P + N + E) |
| Max line current | 125 A |
| Input current limits | 125 A |
| Load capacity | 20000 VA |
| Power factor | 0…1 |
| Max current draw | 125 A |
| Number of power socket outlets | 8 IEC 60320 C19 |
| Protection type | Circuit breaker |
| Efficiency | 99 % |
| Product certifications | CSA, GOST |
| Ambient air temperature for operation | -20…50 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...15000 ft |
| Ambient air temperature for storage | -40…65 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…15240 m |
Packaging
| Package 1 | 1 PCE, 61 cm × 84.3 cm × 30.5 cm (L × W × H), 31.36 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
SBP20KRMI4U: frequently asked questions
When can SBP20KRMI4U be shipped?
SBP20KRMI4U is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SBP20KRMI4U in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SBP20KRMI4U and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SBP20KRMI4U, subject to availability and destination.
