Schneider Electric SBP6KRMI2U

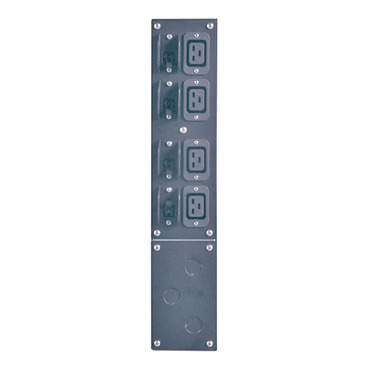

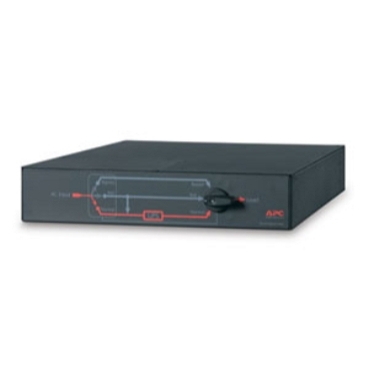

APC Service Bypass Panel- 230V; 32A; MBB; Hardwire input; (4) IEC-320 C19 Output
- MPN
- SBP6KRMI2U
- EAN
- 0731304212614
- Category
- Maintenance Bypass Panels
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SBP6KRMI2U?
The APC SBP6KRMI2U Service Bypass Panel is a reliable solution designed to ensure uninterrupted power to your critical equipment during UPS maintenance or upgrades. Engineered for compatibility with APC Smart-UPS and Smart-UPS On-Line, this panel requires hardwired input and offers (4) IEC C19 outlets. The panel is 2U in height with 230V input and output voltage. This panel comes with a 2-year warranty.
Specifications
Specifications
| Main Input Voltage | 230 V |
| Product or component type | Bypass kit |
| Main Output Voltage | 230 V |
| Number of rack unit | 2U |
| Provided equipment | Installation guide, Rack mounting brackets, User manual |
| Range of product | Maintenance Bypass Panels |
| Colour | Black |
| Height | 89 mm |
| Width | 432 mm |
| Depth | 660 mm |
| Net weight | 11.36 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Network frequency | 50/60 Hz |
| Number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| Max line current | 32 A |
| Input current limits | 32 A |
| Load capacity | 7680 VA |
| Power factor | 0…1 |
| Max current draw | 32 A |
| Number of power socket outlets | 4 IEC 60320 C19 |
| Protection type | Circuit breaker |
| Efficiency | 99 % |
| Product certifications | CSA, GOST |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | -20…50 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0...15000 ft |
| Ambient air temperature for storage | -40…65 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…15240 m |
Packaging
| Package 1 | 1 PCE, 61 cm × 99.1 cm × 20.3 cm (L × W × H), 22.72 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
SBP6KRMI2U: frequently asked questions
When can SBP6KRMI2U be shipped?
SBP6KRMI2U is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SBP6KRMI2U in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SBP6KRMI2U and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SBP6KRMI2U, subject to availability and destination.
