Home / Schneider Electric / Harmony, Socket, Harmony Relay, RXZ, mixed contact, 29 mm, 4 C/O, 7 A

Available on request

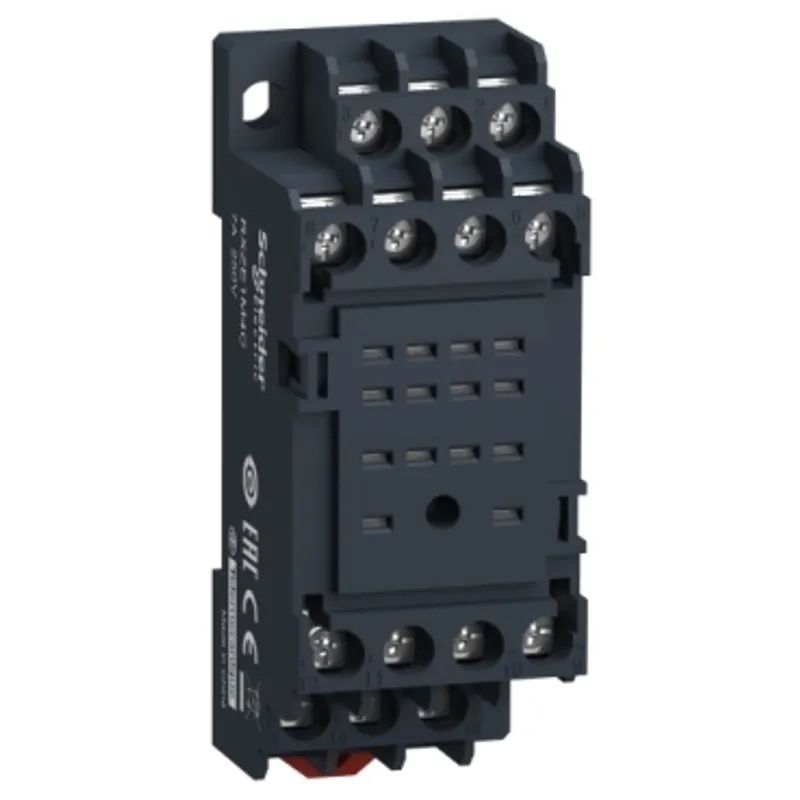

Harmony, Socket, Harmony Relay, RXZ, mixed contact, 29 mm, 4 C/O, 7 A

Name: Harmony, Socket, Harmony Relay, RXZ, mixed contact, 29 mm, 4 C/O, 7 A
Brand: Schneider Electric
SKU: RXZE2M4N

MPN: RXZE2M4N · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Harmony Electromechanical Relays
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.06 kg

Shipping & availability

When can RXZE2M4N be shipped?

RXZE2M4N is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RXZE2M4N in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RXZE2M4N and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RXZE2M4N, subject to availability and destination.

Specifications

Range of product	Harmony Electromechanical Relays
Product compatibility	Plug-in relay RXM with 4 C/O contact
Device short name	RXZ
[Ith] conventional free air thermal current	7 A
Product or component type	Socket
Contacts type and composition	4 C/O
[Ui] rated insulation voltage	250 V
[Ue] rated operational voltage	< 250 V
Connections - terminals	Connector, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, Connector, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end
Tightening torque	< 0.8 N.m for M3 screw(s)
Fixing mode	By screw (panel), Clip-on (35 mm symmetrical DIN rail)
[Uimp] rated impulse withstand voltage	3.6 kV
Overvoltage category	III
Pollution degree	3
Sale per indivisible quantity	10
Width	27 mm
Net weight	0.056 kg
Dielectric strength	2500 V
Standards	IEC 61984
Marking	CE
Ambient air temperature for storage	-40…85 °C
Ambient air temperature for operation	-40…55 °C
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3 cm
Package 1 Width	2.9 cm
Package 1 Length	7.5 cm
Package 1 Weight	56 g
Warranty (in months)	18
