Schneider Electric RXZE2S111M
Socket, Harmony Electromechanical Relays, for RXM3 relays, screw connec to rs, separate contact
- MPN
- RXZE2S111M
- EAN
- 3389119404273
- Category
- Harmony Electromechanical Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

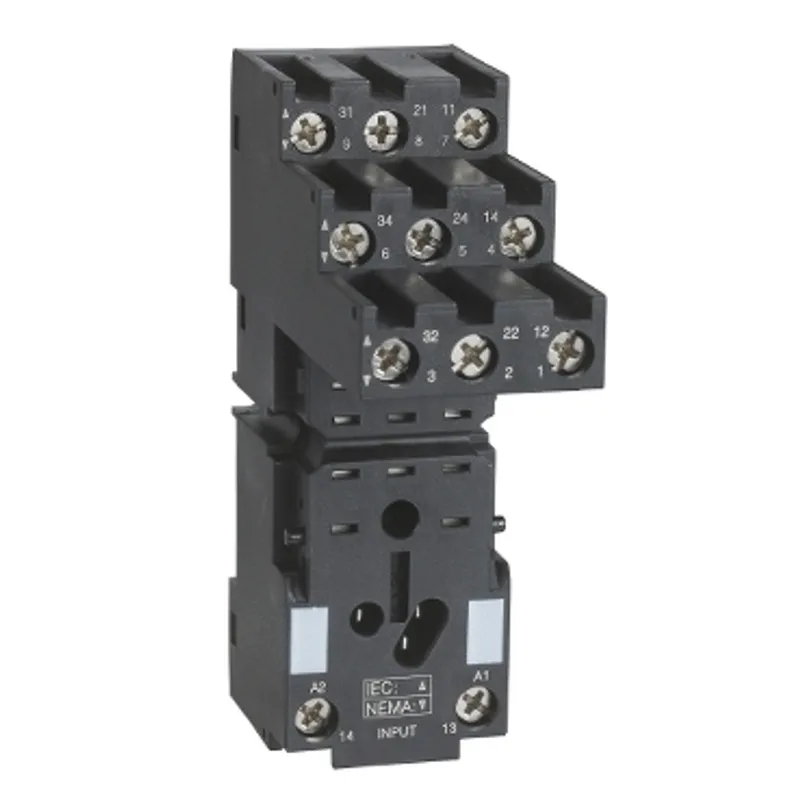

What is the Schneider Electric RXZE2S111M?
"This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 3 changeover contacts 3PDT (triple pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)."
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Product compatibility | Plug-in relay RXM with 3 C/O contact |
| Device short name | RXZ |
| [Ith] conventional free air thermal current | 10 A |
| Product or component type | Socket |
| Contacts type and composition | 3 C/O |
| [Ue] rated operational voltage | < 250 V conforming to IEC, < 300 V conforming to UL |
| Connections - terminals | Screw connectors, 1 x 0.34...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end, Screw connectors, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end, Screw connectors, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, Screw connectors, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Shape of pin | Flat |
| Tightening torque | < 1 N.m for M3 screw(s) |
| Fixing mode | By screw (panel), Clip-on (35 mm symmetrical DIN rail) |
| Wire stripping length | 8 mm |
| Contact terminal arrangement | Separate |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |

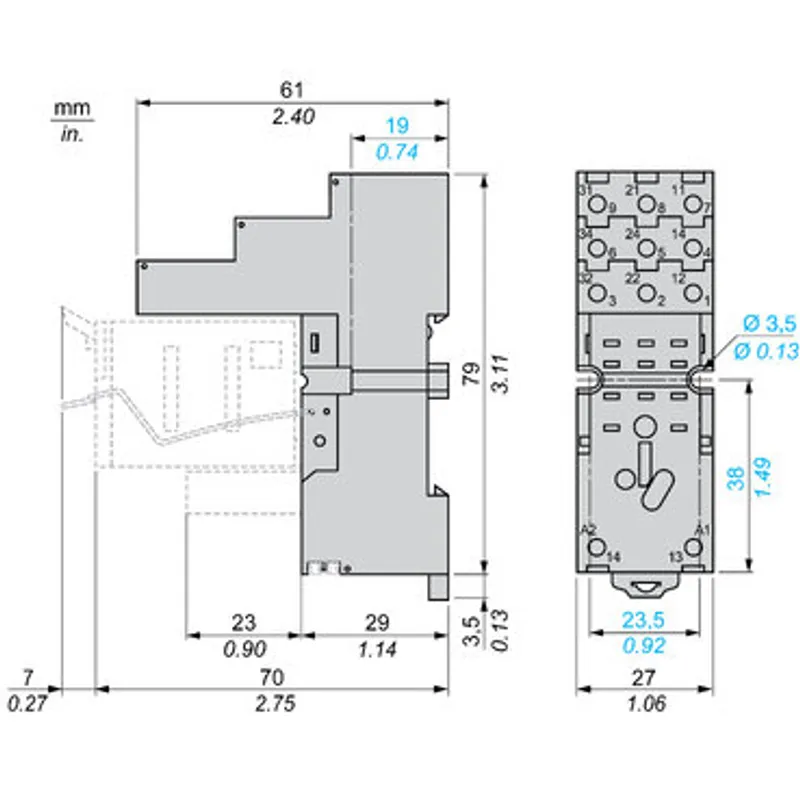

| Width | 27 mm |
| Net weight | 0.058 kg |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Dielectric strength | 2500 V |
| Standards | IEC 61984 |
| Product certifications | UL, Lloyd's, CSA |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
Packaging
| Package 1 | 1 PCE, 7.500 cm × 2.700 cm × 6.100 cm (L × W × H), 60.000 g |
| Package 2 | 10 BB1, 11.000 cm × 13.600 cm × 6.600 cm (L × W × H), 646.000 g |
| Package 3 | 200 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 13.412 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
RXZE2S111M: frequently asked questions
When can RXZE2S111M be shipped?
RXZE2S111M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RXZE2S111M in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RXZE2S111M and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RXZE2S111M, subject to availability and destination.
