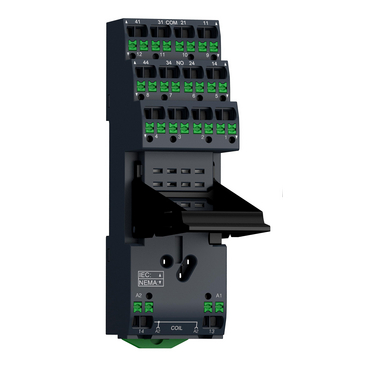

Schneider Electric RXZE14P
Push in socket with clamp, Harmony Electromechanical Relays, for RXM relays, 12A 2CO, 6A 4CO, push in terminals, separate contact
- MPN
- RXZE14P
- EAN
- 3606481465764
- Category
- Harmony Electromechanical Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric RXZE14P?
This Harmony RXZ range is a plug-in socket. It has a rated voltage of 250V AC with an output rating of 7A. It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere It is compatible with plug in control relay. It enables easy installation and connect to relay from its socket. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). It is a green premium product and conforms to international standard and certifications. This Push-in relay socket is compatible with interface plug-in relay RXM range.
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays, Harmony Timer Relays |
| Product compatibility | Plug-in relay RXM with 2 C/O contact, Plug-in relay RXM with 4 C/O contact |
| Device short name | RXZ |
| [Ith] conventional free air thermal current | 12 A 2 C/O relays, 6 A 4 C/O relays |
| Product or component type | Socket |
| Contacts type and composition | 4 C/O |
| [Ui] rated insulation voltage | 250 V |
| [Ue] rated operational voltage | 250 V conforming to IEC, 300 V conforming to UL |
| Connections - terminals | Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) flexible with cable end, Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Shape of pin | Flat |
| Fixing mode | Clip-on (35 mm symmetrical DIN rail) |

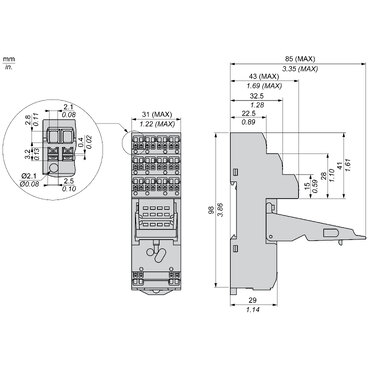

| Length | 98 mm |
| Contact terminal arrangement | Separate |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Width | 31 mm |
| Height | 85 mm |
| Net weight | 0.080 kg |
| IP degree of protection | IP20 |
| Dielectric strength | 2500 V |
| Standards | IEC 61984 |
| Product certifications | CSA, Lloyd's, UL, EAC |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
Packaging
| Package 1 | 1 PCE, 9.900 cm × 7.800 cm × 3.000 cm (L × W × H), 72.000 g |
| Package 2 | 10 BB1, 20.700 cm × 16.200 cm × 9.200 cm (L × W × H), 828.000 g |
| Package 3 | 70 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 6.360 kg |
