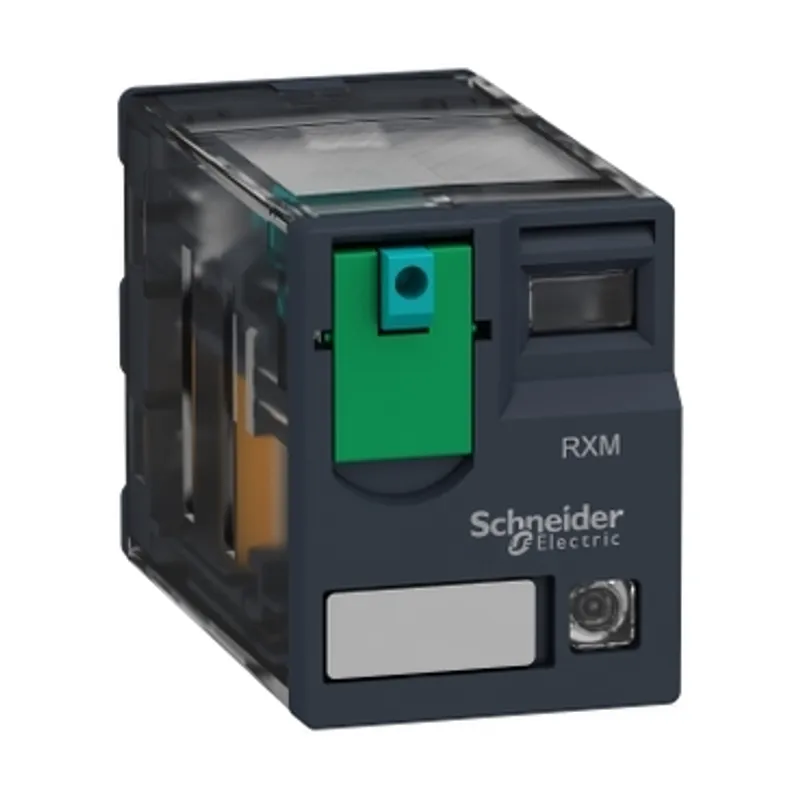

Harmony, Miniature plug-in relay, 3 A, 4 CO, with LED, with lockable test button, 220 V DC
MPN: RXM4GB2MD · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Harmony Electromechanical Relays |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.04 kg |
Shipping & availability
When can RXM4GB2MD be shipped?
RXM4GB2MD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RXM4GB2MD in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RXM4GB2MD and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RXM4GB2MD, subject to availability and destination.
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Series name | RXM series |
| Product or component type | Plug-in relay |
| Relay type | Miniature relay |
| Contacts type and composition | 4 C/O |
| Status LED | With |
| Control type | Lockable test button |
| [Uc] control circuit voltage | 220 V DC |
| [Ithe] conventional enclosed thermal current | 3 A at -40…55 °C |
| [Uimp] rated impulse withstand voltage | 2.5 kV during 1.2/50 µs |
| [Ie] rated operational current | 2 A at 28 V (DC) NO conforming to IEC, 2 A at 250 V (AC) NO conforming to IEC, 1 A at 28 V (DC) NC conforming to IEC, 1 A at 250 V (AC) NC conforming to IEC, 3 A at 28 V (DC) conforming to UL, 3 A at 277 V (AC) conforming to UL |
| Minimum switching capacity | 15 mW at 3 mA, 5 V |
| Electrical durability | 100000 cycles for resistive load depending on mounting position and working environment |
| Rated operational voltage limits | 176...242 V DC |
| [Ui] rated insulation voltage | 250 V conforming to IEC, 300 V conforming to CSA, 300 V conforming to UL |
| Maximum switching voltage | 250 V conforming to IEC |
| Drop-out voltage threshold | >= 0.1 Uc |
| Load current | 3 A at 250 V AC, 3 A at 28 V DC |
| Operating time | 20 ms |
| Maximum switching capacity | 750 VA/84 W |
| Average resistance | 48400 Ohm at 20 °C +/- 10 % |
| Average coil consumption | 0.9 W |
| Mechanical durability | 10000000 cycles |
| Operating rate | <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| reset time | 20 ms |
| Dielectric strength | 1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact, 2000 V AC between poles |
| Compatibility code | RXM |
| Protection category | RT I |
| Pollution degree | 2 |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | Gold plated bifurcated silver |
| Shape of pin | Flat (faston type) |
| Net weight | 0.037 kg |
| Ambient air temperature for operation | -40…55 °C |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Standards | IEC 61810-1, UL 508, CSA C22.2 No 14 |
| Product certifications | UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation, 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| Shock resistance | 10 gn for in operation, 30 gn for not operating |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.100 cm |
| Package 1 Width | 2.700 cm |
| Package 1 Length | 4.800 cm |
| Package 1 Weight | 35.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.200 cm |
| Package 2 Width | 10.200 cm |
| Package 2 Length | 12.600 cm |
| Package 2 Weight | 389.000 g |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 120 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 15.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.943 kg |
| Warranty (in months) | 18 |
