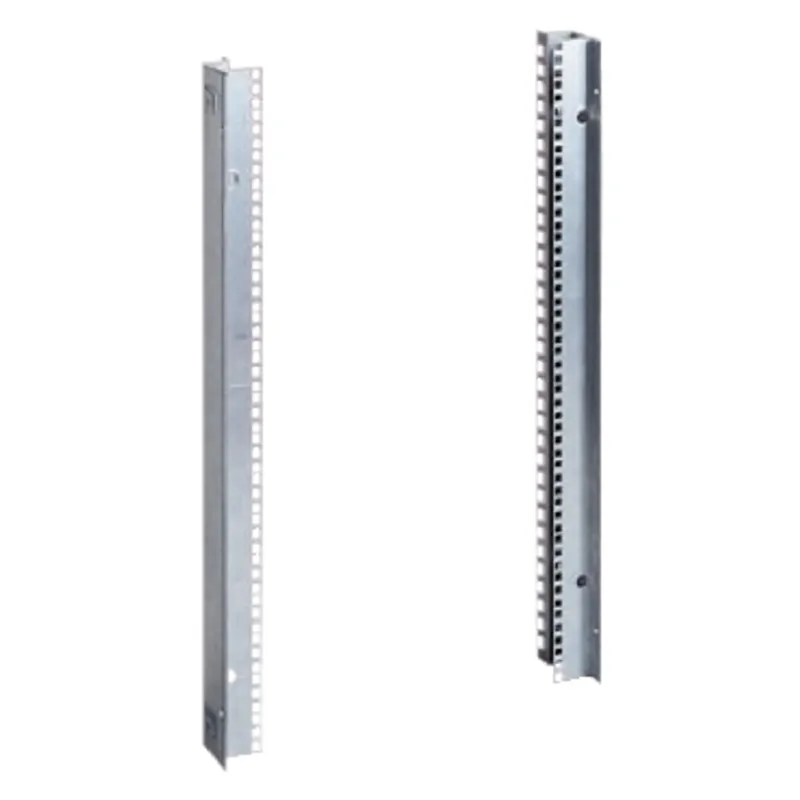

Schneider Electric NSYVDM17UF
19" fixed chassis 17U PanelSeT
- MPN
- NSYVDM17UF
- EAN
- 3606480174780
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYVDM17UF?
Fixed chassis allow mounting rackable electronic equipment with 19" server racks in PanelSeT S3D, PanelSeT S3X, PanelSeT VDM, PanelSeT CRN and PanelSeT CRNG enclosures The nominal width is 600mm The nominal height is 800mm The depth is 830mm Supports mounting of 17 units Depth adjustable in steps of 12mm The kit supplied with fixing elements and 2 19" uprights The strips are manufactured from 2mm grey galvanised steel (RAL 7035) The product is be mounted on front of enclosure and step slide The permanent permissible load is 3kg per unit Net weight is 4,72kg
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | 19" rack |
| Application | Multi-purpose, Electronic application |
| For enclosure nominal dimensions | - H: 800 mm W: 600 mm D: 200 mm, - H: 800 mm W: 600 mm D: 250 mm, - H: 800 mm W: 600 mm D: 300 mm, - H: 800 mm W: 600 mm D: 400 mm |
| Rack type | Fixed |
| Mounting location | Front of enclosure, Step slide |
| Range compatibility | PanelSeT PanelSeT S3D, PanelSeT PanelSeT S3X, PanelSeT PanelSeT VDM, PanelSeT PanelSeT CRN, PanelSeT PanelSeT CRNG |
| Device composition | Fixing elements, 2 19" uprights |
| Number of units 19" | 17 |
| Material | Galvanised steel |
| Enclosure/cubicle description | Wall-mounted enclosure |
| fixing mode | By fixing element |
| Adjustment | Adjustable in depth, pitch 12.5 mm, on the step slide |
| Colour | Grey (RAL 7035) |
| Permanent permissible load | 3 kg per unit |
| Height | Nominal: 800 mm |
| Width | Nominal: 600 mm |
| Depth | 830 mm |
| thickness | 2 mm |
| Net weight | 4.72 kg |
Packaging
| Package 1 | 1 PCE, 82.500 cm × 10.500 cm × 7.000 cm (L × W × H), 4.724 kg |
| Package 2 | 100 PAM, 120.000 cm × 100.000 cm × 83.000 cm (L × W × H), 485.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYVDM17UF: frequently asked questions
When can NSYVDM17UF be shipped?
NSYVDM17UF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYVDM17UF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYVDM17UF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYVDM17UF, subject to availability and destination.
