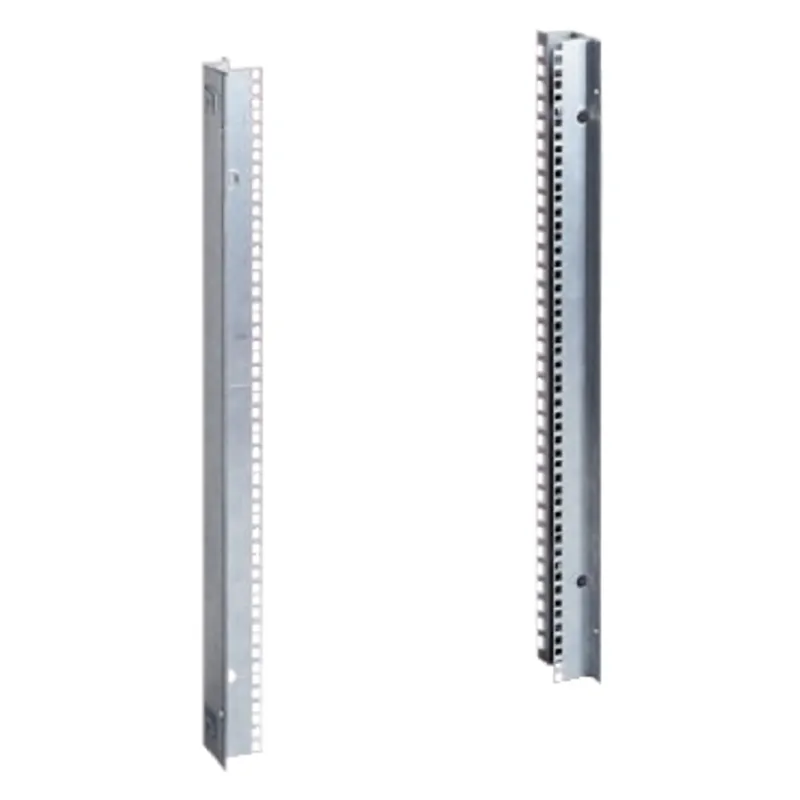

Schneider Electric NSYVDM12UF
19" fixed chassis 12U PanelSeT
- MPN
- NSYVDM12UF
- EAN
- 3606480174773
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYVDM12UF?
Fixed chassis allow mounting rackable electronic equipment with 19" server racks in PanelSeT S3D, PanelSeT S3X, PanelSeT VDM and PanelSeT CRN enclosures The nominal width is 600mm The nominal height is 600mm The depth is 700mm Supports mounting of 12 units Depth adjustable in steps of 12mm The kit supplied with fixing elements and 2 19" uprights The strips are manufactured from 2mm grey galvanised steel (RAL 7035) The product is be mounted on step slide and front of enclosure The permanent permissible load is 3kg per unit Net weight is 4,36kg
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | 19" rack |
| Application | Electronic application, Multi-purpose |
| For enclosure nominal dimensions | - H: 600 mm W: 600 mm D: 200 mm, - H: 600 mm W: 600 mm D: 250 mm, - H: 600 mm W: 600 mm D: 300 mm, - H: 600 mm W: 600 mm D: 400 mm |
| Rack type | Fixed |
| Mounting location | Step slide, Front of enclosure |
| Range compatibility | PanelSeT PanelSeT S3D, PanelSeT PanelSeT S3X, PanelSeT PanelSeT VDM, PanelSeT PanelSeT CRN |
| Device composition | Fixing elements, 2 19" uprights |
| Number of units 19" | 12 |
| Material | Galvanised steel |
| Enclosure/cubicle description | Wall-mounted enclosure |
| fixing mode | By fixing element |
| Adjustment | Adjustable in depth, pitch 12.5 mm, on the step slide |
| Colour | Grey (RAL 7035) |
| Permanent permissible load | 3 kg per unit |
| Height | Nominal: 600 mm |
| Width | Nominal: 600 mm |
| Depth | 700 mm |
| thickness | 2 mm |
| Net weight | 4.36 kg |
Packaging
| Package 1 | 1 PCE, 60.000 cm × 10.500 cm × 7.000 cm (L × W × H), 3.370 kg |
| Package 2 | 100 PAM, 120.000 cm × 100.000 cm × 41.000 cm (L × W × H), 350.000 kg |
