Schneider Electric NSYVDM11UP

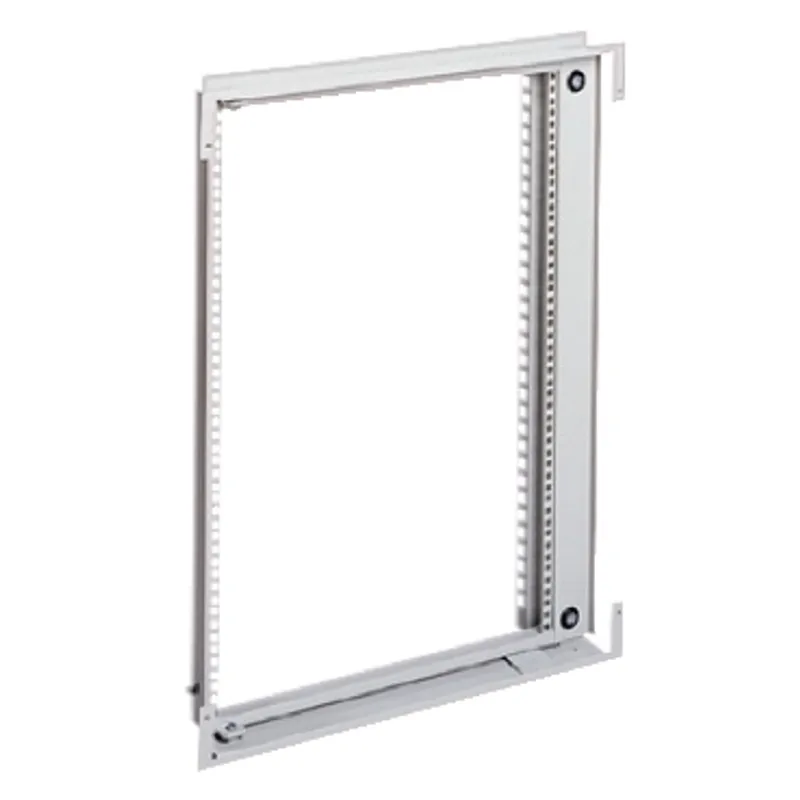

19" swing chassis 11U PanelSeT
- MPN
- NSYVDM11UP
- EAN
- 3606480174711
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYVDM11UP?
Swing chassis allow mounting rackable electronic equipment with 19" server racks in PanelSeT S3D, PanelSeT S3X, PanelSeT VDM and PanelSeT CRN enclosures The nominal width is 600mm The nominal height is 600mm The depth is 630mm Supports mounting of 11 units Opening is reversible, opening angle is 120 ° The kit supplied with fixing elements, 1 19" swing chassis and 2 locks The chassis is made from steel Anti-corrosion protection is ensured by epoxy-polyester powder coating The permanent permissible load is 3kg per unit Net weight is 5,41kg
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | 19" rack |
| Application | Multi-purpose, Electronic application |
| For enclosure nominal dimensions | - H: 600 mm W: 600 mm D: 200 mm, - H: 600 mm W: 600 mm D: 250 mm, - H: 600 mm W: 600 mm D: 300 mm, - H: 600 mm W: 600 mm D: 400 mm |
| Rack type | Swing |
| Mounting location | Front of enclosure |
| Range compatibility | PanelSeT PanelSeT S3D, PanelSeT PanelSeT S3X, PanelSeT PanelSeT VDM, PanelSeT PanelSeT CRN |
| Device composition | Fixing elements, 1 19" swing chassis, 2 lock |
| Number of units 19" | 11 |
| Material | Chassis: steel |
| Enclosure/cubicle description | Wall-mounted enclosure |
| Surface finish | Epoxy-polyester powder |
| Lock type | Lock with 3 mm double bar insert |
| fixing mode | By fixing element |
| Colour | Grey (RAL 7035) |
| Permanent permissible load | 3 kg per unit |
| Opening of the 19" racks | Reversible 120 ° |
| Height | Nominal: 600 mm |
| Width | Nominal: 600 mm |
| Depth | 630 mm |
| Net weight | 5.41 kg |
Packaging
| Package 1 | 1 PCE, 61.000 cm × 55.000 cm × 13.500 cm (L × W × H), 5.410 kg |
| Package 2 | 20 PAM, 120.000 cm × 100.000 cm × 135.000 cm (L × W × H), 121.000 kg |
