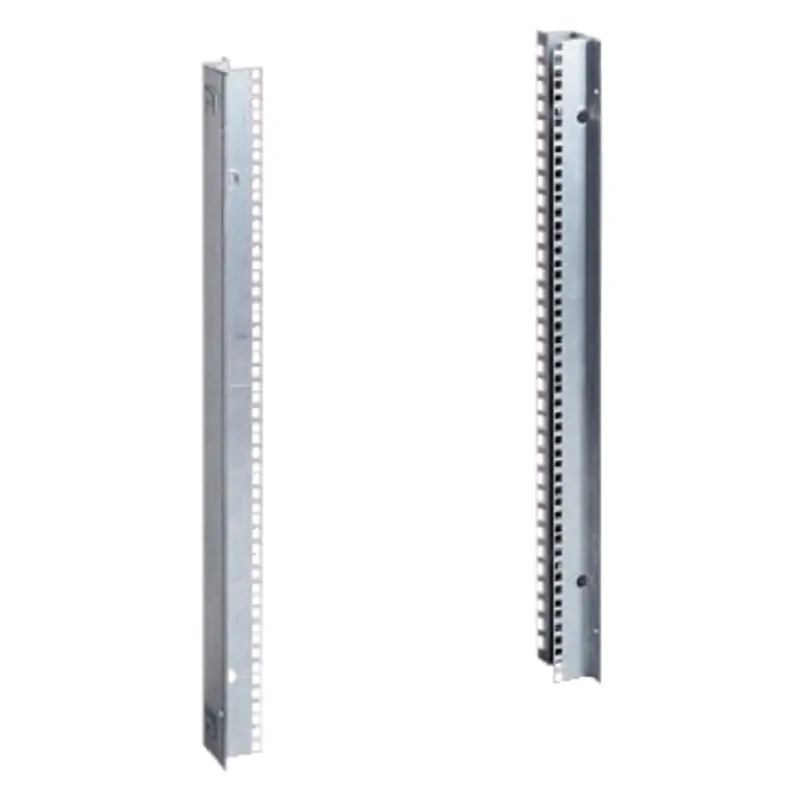

Schneider Electric NSYVDM21UF
19" fixed chassis 21U PanelSeT
- MPN
- NSYVDM21UF
- EAN
- 3606480174797
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYVDM21UF?
Fixed chassis allow mounting rackable electronic equipment with 19" server racks in PanelSeT S3D, PanelSeT S3X, PanelSeT VDM, PanelSeT CRN and PanelSeT CRNG enclosures The nominal width is 600mm The nominal height is 1000mm The depth is 70mm Supports mounting of 21 units Depth adjustable in steps of 12mm The kit supplied with fixing elements and 2 19" uprights The strips are manufactured from 2mm grey galvanised steel (RAL 7035) The product is be mounted on step slide and front of enclosure The permanent permissible load is 3kg per unit Net weight is 5,7kg
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | 19" rack |
| Application | Multi-purpose, Electronic application |
| For enclosure nominal dimensions | - H: 1000 mm W: 600 mm D: 250 mm, - H: 1000 mm W: 600 mm D: 400 mm |
| Rack type | Fixed |
| Mounting location | Step slide, Front of enclosure |
| Range compatibility | PanelSeT PanelSeT S3D, PanelSeT PanelSeT S3X, PanelSeT PanelSeT VDM, PanelSeT PanelSeT CRN, PanelSeT PanelSeT CRNG |
| Device composition | Fixing elements, 2 19" uprights |
| Number of units 19" | 21 |
| Material | Galvanised steel |
| Enclosure/cubicle description | Wall-mounted enclosure |
| fixing mode | By fixing element |
| Adjustment | Adjustable in depth, pitch 12.5 mm, on the step slide |
| Colour | Grey (RAL 7035) |
| Permanent permissible load | 3 kg per unit |
| Height | Nominal: 1000 mm |
| Width | Nominal: 600 mm |
| Depth | 70 mm |
| thickness | 2 mm |
| Net weight | 5.7 kg |
Packaging
| Package 1 | 1 PCE, 100.500 cm × 11.000 cm × 7.000 cm (L × W × H), 5.700 kg |
| Package 2 | 50 PAM, 120.000 cm × 100.000 cm × 45.000 cm (L × W × H), 303.200 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYVDM21UF: frequently asked questions
When can NSYVDM21UF be shipped?
NSYVDM21UF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYVDM21UF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYVDM21UF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYVDM21UF, subject to availability and destination.
