Schneider Electric NSYTLDFL

With 1 FL21 cutouts for S3D encl. RAL7035. L345xW130

MPN: NSYTLDFL
EAN: 3606480168413
Category: PanelSeT CRN

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

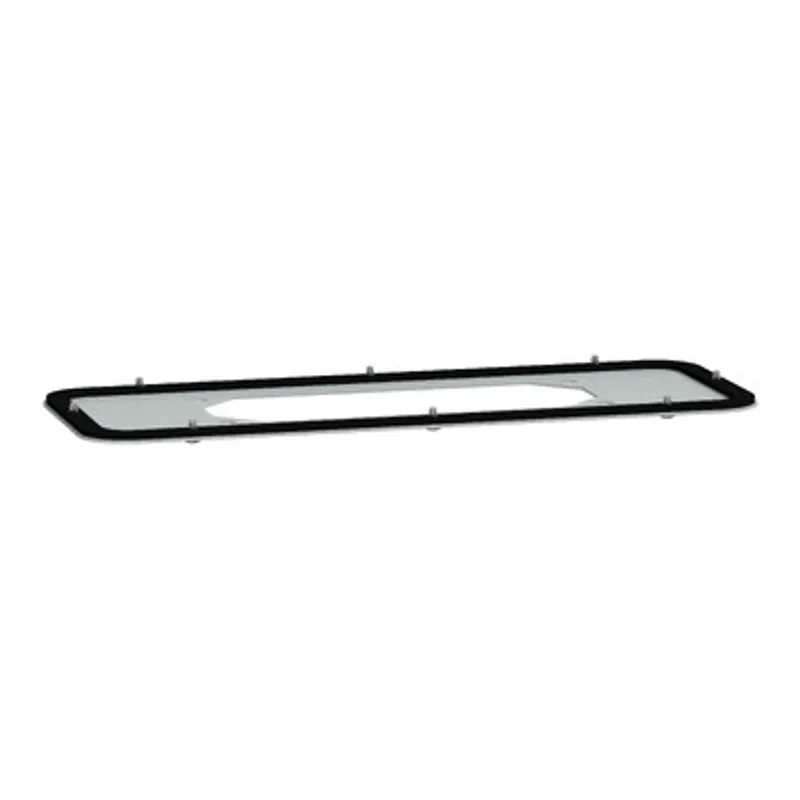

What is the Schneider Electric NSYTLDFL?

Multi-purpose cable gland plate for PanelSeT S3D and PanelSeT CRNG enclosures The enclosure nominal depth is 200mm or 250mm The product is made of steel plate and polyethylene (PE) foam seal The plate is 1,5mm thick The width is 345mm and real width is 360mm The height is 345mm and height is 5mm The depth is 130mm The set contains fixing elements, 1 plate and 1 separate gasket The cable gland plate is to be mounted on enclosure bottom 1 cut-out 194 x 62,5mm Anti-corrosion protection is ensured by an epoxy-polyester powder coating Suitable for FL21 membranes

Specifications

Range	PanelSeT
Product or component type	Cable gland plate
Accessory / separate part category	Cable management accessory
Application	Multi-purpose
Nominal width of the housing	400 mm
Nominal depth of the housing	200 mm, 250 mm
Range compatibility	PanelSeT S3D, PanelSeT PanelSeT CRNG
Mounting location	Enclosure bottom
Cable gland type	With FL cut-out
Device composition	Fixing elements, 1 plate, 1 separate gasket
Quantity per set	Set of 1
Material	Plate: steel, Seal: polyethylene (PE) foam
Colour	Plate: grey (RAL 7035)
Surface finish	Epoxy-polyester powder
Height	345 mm, 5 mm
Width	345 mm, Real: 360 mm
Depth	130 mm
Net weight	0.72 kg
thickness	1.5 mm
Number of cut-out	1 cut-out
Accessory / separate part destination	For FL21 membranes
Cut-out dimensions	194 x 62.5 mm

Packaging

Package 1	1 PCE, 36.000 cm × 14.000 cm × 0.500 cm (L × W × H), 396.000 g
Package 2	15 CAR, 40.000 cm × 30.000 cm × 20.000 cm (L × W × H), 6.040 kg
Package 3	480 P12, 120.000 cm × 80.000 cm × 80.000 cm (L × W × H), 205.280 kg
