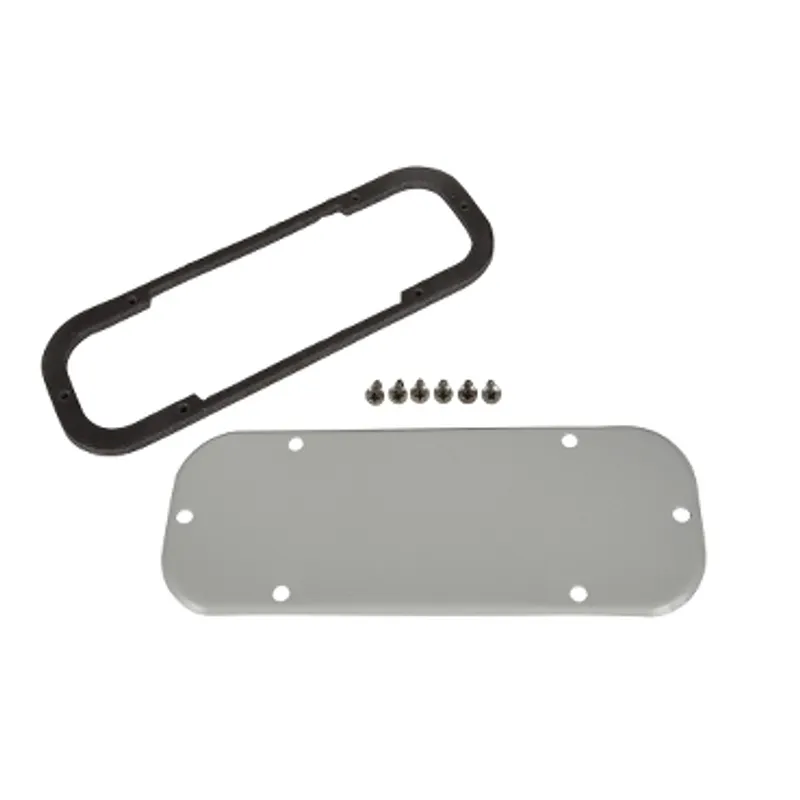

Std for CRN WM To be coupled with cable entry O. L130xW60
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.12 kg |
Shipping & availability
When can NSYTLCRNO be shipped?
NSYTLCRNO is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTLCRNO in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTLCRNO and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTLCRNO, subject to availability and destination.
Schneider Electric Std for CRN WM To be coupled with cable entry O. L130xW60, manufacturer part number NSYTLCRNO. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Multi-purpose |
| Range compatibility | PanelSeT CRN PanelSeT CRN |
| Mounting location | Enclosure bottom |
| Cable gland type | Standard |
| Device composition | Fixing elements, 1 plate, 1 separated seal |
| Quantity per set | Set of 1 |
| Material | Plate: steel, Seal: polyethylene (PE) foam |
| Colour | Plate: grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Height | 10 mm |
| Depth | Real : 165 mm |
| Net weight | 0.12 kg |
| thickness | 1 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 16.500 cm |
| Package 1 Width | 9.500 cm |
| Package 1 Length | 1.000 cm |
| Package 1 Weight | 120.000 g |
| Warranty | 18 months |
