Schneider Electric NSYTLE
Standard for PanelSeT S3D encl. RAL7035, L445xW130.
- MPN
- NSYTLE
- EAN
- 3606480168383
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYTLE?

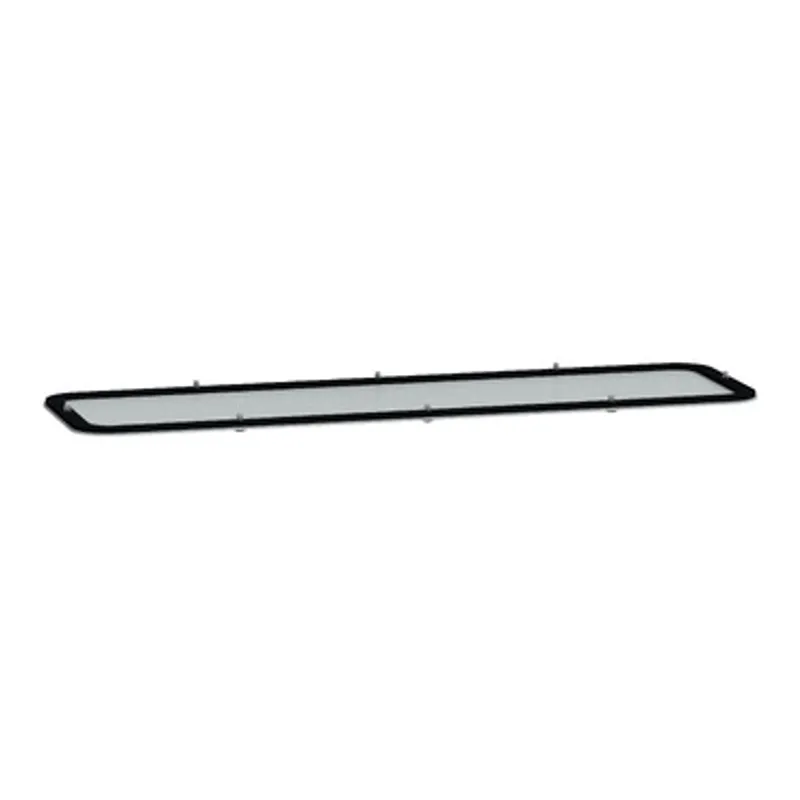

Multi-purpose cable gland plate for PanelSeT S3D and PanelSeT CRNG enclosures The product is made of steel plate and polyethylene (PE) foam seal The plate is 1,5mm thick The width is 445mm and real width is 450mm The height is 445mm and height is 5mm The depth is 130mm The set contains fixing elements, 1 plate and 1 separate gasket The cable gland plate is to be mounted on enclosure bottom The cable gland has 45 markings 25mm Anti-corrosion protection is ensured by an epoxy-polyester powder coating
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Multi-purpose |
| Range compatibility | PanelSeT S3D, PanelSeT PanelSeT CRNG |
| Mounting location | Enclosure bottom |
| Cable gland type | Standard |
| Device composition | Fixing elements, 1 plate, 1 separate gasket |
| Quantity per set | Set of 1 |
| Material | Plate: steel, Seal: polyethylene (PE) foam |
| Colour | Plate: grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Number of cut-out | 45 markings 25 mm |
| Height | 445 mm, 5 mm |
| Width | 445 mm, Real: 450 mm |
| Depth | 130 mm |
| Net weight | 0.774 kg |
| thickness | 1.5…2.0 mm |
Packaging
| Package 1 | 1 PCE, 0.500 cm × 15.000 cm × 45.000 cm (L × W × H), 774.000 g |
| Package 2 | 200 PAM, 120.000 cm × 100.000 cm × 80.000 cm (L × W × H), 164.800 kg |
