Schneider Electric NSYTLD

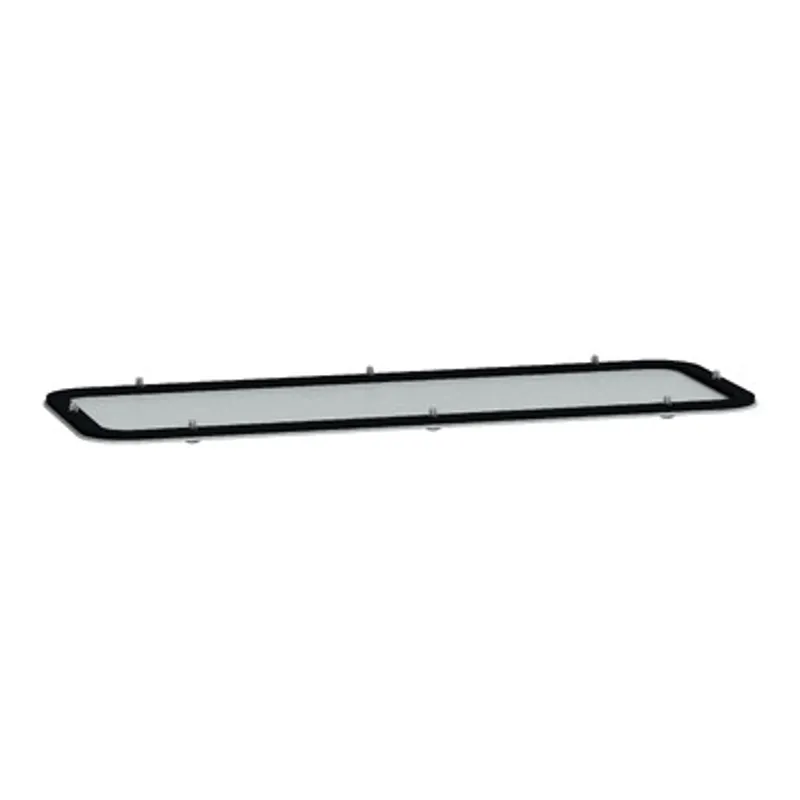

Standard for PanelSeT S3D encl. RAL7035, L345xW130.

MPN: NSYTLD
EAN: 3606480168420
Category: PanelSeT CRN

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYTLD?

Multi-purpose cable gland plate for PanelSeT S3D and PanelSeT CRNG enclosures The product is made of steel plate and polyethylene (PE) foam seal The plate is 1,5mm thick The width is 345mm and real width is 350mm The height is 345mm and height is 10mm The depth is 130mm The set contains fixing elements, 1 plate and 1 separate gasket The cable gland plate is to be mounted on enclosure bottom The cable gland has 33 markings 25mm Anti-corrosion protection is ensured by an epoxy-polyester powder coating

Specifications

Range	PanelSeT
Product or component type	Cable gland plate
Accessory / separate part category	Cable management accessory
Application	Multi-purpose
Range compatibility	PanelSeT S3D, PanelSeT PanelSeT CRNG
Mounting location	Enclosure bottom
Cable gland type	Standard
Device composition	Fixing elements, 1 plate, 1 separate gasket
Quantity per set	Set of 1
Material	Plate: steel, Seal: polyethylene (PE) foam
Colour	Plate: grey (RAL 7035)
Surface finish	Epoxy-polyester powder
Number of cut-out	33 markings 25 mm
Height	345 mm, 10 mm
Width	345 mm, Real: 350 mm
Depth	130 mm
Net weight	0.78 kg
thickness	1.5…2.0 mm

Packaging

Package 1	1 PCE, 35.000 cm × 15.000 cm × 0.500 cm (L × W × H), 612.000 g
Package 2	15 CAR, 32.000 cm × 20.000 cm × 41.000 cm (L × W × H), 9.180 kg
Package 3	120 P12, 120.000 cm × 80.000 cm × 69.000 cm (L × W × H), 90.000 kg
