Schneider Electric NSYSPV6100

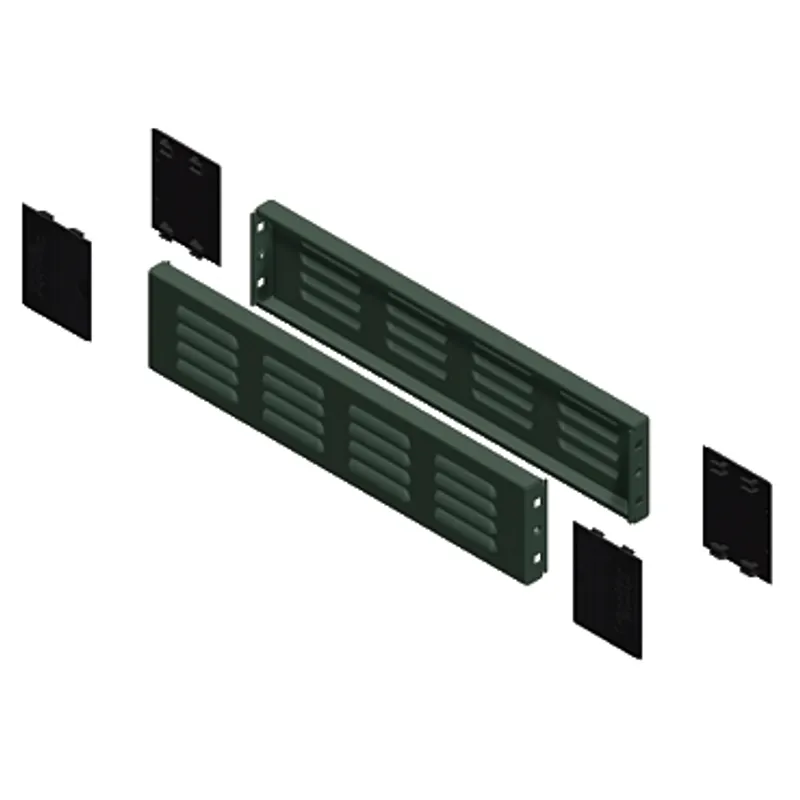

Plinth ventilated side panels, PanelSeT SFN, SF, SM, for electrical enclosure D600mm, set of 2, H100mm

MPN: NSYSPV6100
EAN: 3606485132570
Category: PanelSeT SM

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSPV6100?

Ventilated side plinth panels for PanelSeT, PanelSeT and PrismaSeT electrical enclosures. The product is made of folded sheet steel. It is suitable for enclosures with a nominal depth of 600 mm and its height is 100 mm. The set contains 4 corners covers, 2 side and the fixing elements. The color is grey RAL7022. The ingress protection rating is IP20 (complete plinth) and the mechanical protection rating is IK10. The permanent permissible load is 1300kg. Anti-corrosion protection is ensured by an epoxy-polyester powder coating. .

Specifications

Range	PanelSeT
Accessory / separate part category	Enclosure accessory
Product or component type	Ventilated plinth side panel
Application	Electronic application, Multi-purpose
Nominal dimensions of the housing	-
Device composition	Fixing elements, 4 corner cover, 2 side panel
Range compatibility	PanelSeT PanelSeT SF SF, PanelSeT SM PanelSeT SM
Mounting support	Front plinth
Fixing mode	By screws
Colour	Grey (RAL 7022)
Surface finish	Epoxy-polyester powder
Height	100 mm
Width	Nominal: 600 mm
IP degree of protection	IP20 (complete plinth)
IK degree of protection	IK10

Packaging

Package 1

1 PCE, 45.0 cm × 11.0 cm × 6.0 cm (L × W × H), 4.62 kg
