Schneider Electric NSYSPV8100

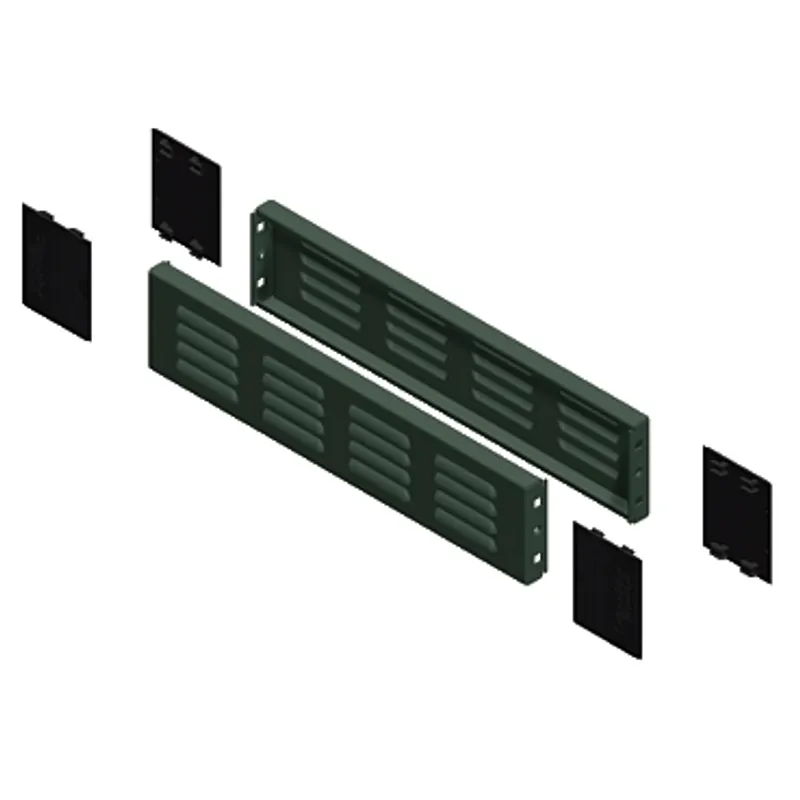

Plinth ventilated side panels, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure D800mm, set of 4, H200mm

MPN: NSYSPV8100
EAN: 3606485132600
Category: PanelSet SF

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSPV8100?

Ventilated side plinth panels for PanelSeT, PanelSeT and PrismaSeT electrical enclosures. The product is made of folded sheet steel. It is suitable for enclosures with a nominal depth of 800 mm and its height is 100 mm. The set contains 4 corners covers, 2 side and the fixing elements. The color is grey RAL7022. The ingress protection rating is IP20 (complete plinth) and the mechanical protection rating is IK10. The permanent permissible load is 1300kg. Anti-corrosion protection is ensured by an epoxy-polyester powder coating. .

Specifications

Range	PanelSeT
Accessory / separate part category	Enclosure accessory
Product or component type	Ventilated plinth side panel
Application	Electronic application, Multi-purpose
Nominal dimensions of the housing	-
Device composition	Fixing elements, 4 corner cover, 2 side panel
Range compatibility	PanelSeT SM PanelSeT SM
Mounting support	Front plinth
Fixing mode	By screws
Colour	Grey (RAL 7022)
Surface finish	Epoxy-polyester powder
Height	100 mm
Width	Nominal: 800 mm
IP degree of protection	IP20 (complete plinth)
IK degree of protection	IK10

Packaging

Package 1	1 PCE, 65.500 cm × 11.500 cm × 6.000 cm (L × W × H), 2.512 kg
Package 2	70 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 190.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYSPV8100PDF
