Schneider Electric NSYSPSX6200H

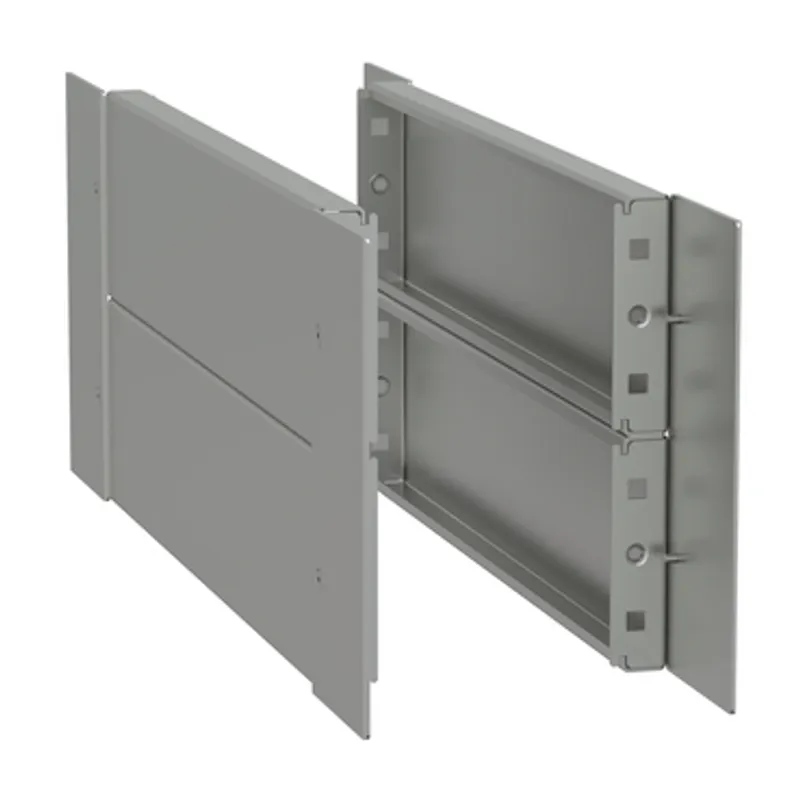

PanelSeT -side plinth - H200 D600 stainless steel 316L

MPN: NSYSPSX6200H
EAN: 3606480626418
Category: PanelSeT SFX

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSPSX6200H?

Plinth side panel to be used with PanelSeT SD, PanelSeT S3HD, PanelSeT SMX and PanelSeT SFX enclosures The plinth side panel is to be used in multi-purpose applications The height is 200mm The nominal depth is 600mm The kit is made of fixing elements, 4 corner covers and 2 side panels The product is made of Material : Stainless steel Net weight is 3,63kg Ingress protection rating is IP30 (complete plinth) Mechanical protection rating is IK10

Specifications

Range	PanelSeT
Accessory / separate part category	Enclosure accessory
Product or component type	Plinth side panel
Application	Multi-purpose
Nominal dimensions of the housing	-
Device composition	Fixing elements, 4 corner cover, 2 side panel
Range compatibility	PanelSeT PanelSeT SD SD, PanelSeT S3HD, PanelSeT SMX PanelSeT SMX, PanelSeT SFX PanelSeT SFX
Mounting support	Front plinth
Fixing mode	By screws
Material	Stainless steel 316L
Surface finish	Untreated
Height	200 mm
Depth	Nominal : 600 mm
Net weight	3.63 kg
IP degree of protection	IP30 (complete plinth)
IK degree of protection	IK10

Packaging

Package 1	1 PCE, 40.500 cm × 20.500 cm × 6.000 cm (L × W × H), 4.354 kg
Package 2	20 PAM, 120.000 cm × 100.000 cm × 27.000 cm (L × W × H), 102.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYSPSX6200HPDF

NSYSPSX6200H: frequently asked questions

When can NSYSPSX6200H be shipped?

NSYSPSX6200H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYSPSX6200H in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYSPSX6200H and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSPSX6200H, subject to availability and destination.
