Schneider Electric NSYSPMP2560

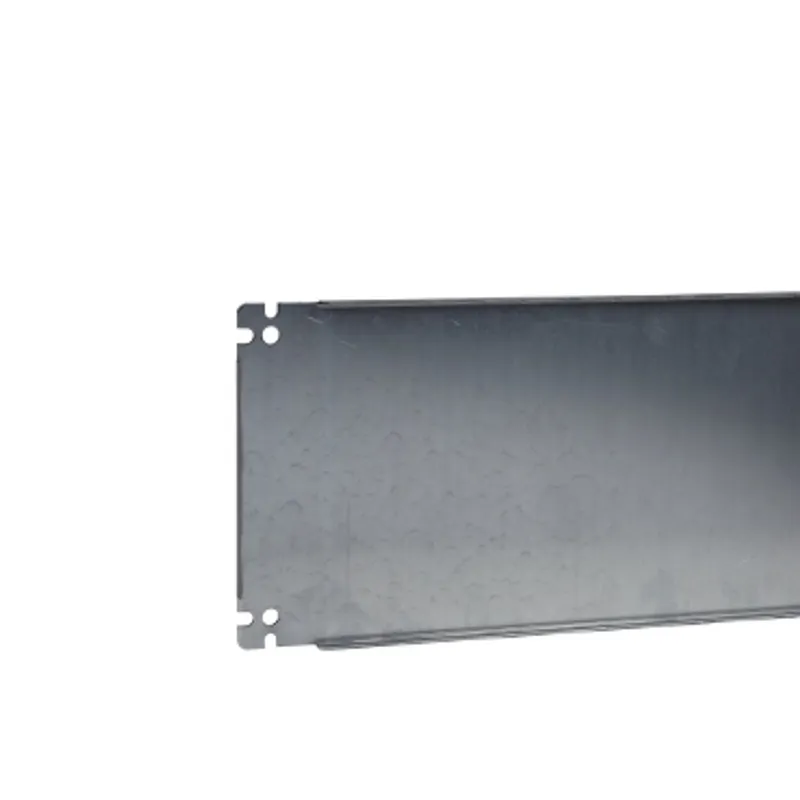

Partial mounting plate, PanelSeT SFN, SF, SM, for electrical enclosure W600mm, galvanized steel, H247mm
- MPN
- NSYSPMP2560
- EAN
- 3606485132419
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSPMP2560?
Partial mounting plate for PanelSeT SFN, and PanelSeT SM and SFX electrical enclosures. It has nominal height and width of 247 and 500 mm respectively. This plate is provided with reinforcement flange on its four sides. The maximum admisible load on the plate is 250 kg/m2. They are made of galvanised steel. The set includes 1 plate and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting plate description | Partial plain |
| Range compatibility | PanelSeT PanelSeT SF SF, PanelSeT SM PanelSeT SM, PanelSeT SFX PanelSeT SFX |
| Device composition | 1 mounting plate, fixing elements |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing element - on structure location |
| Height | Nominal: 250 mm, 247 mm |
| Width | Nominal: 600 mm, 505 mm |
| Variant particularity | Horizontal fixing on cross rails |
Packaging
| Package 1 | 1 PCE, 52.000 cm × 27.000 cm × 2.500 cm (L × W × H), 2.946 kg |
| Package 2 | 72 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 225.000 kg |
