Schneider Electric
NSYSPLVX6200PanelSeT S3HD - outdoor heavy duty - side ventilated plinth - H200 D600 IP55
Schneider Electric NSYSPMP25120
Serrated quarter-turn sliding nut - M6. Supply: 10 units
- MPN
- NSYSPMP25120
- EAN
- 3606485132402
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSPMP25120?

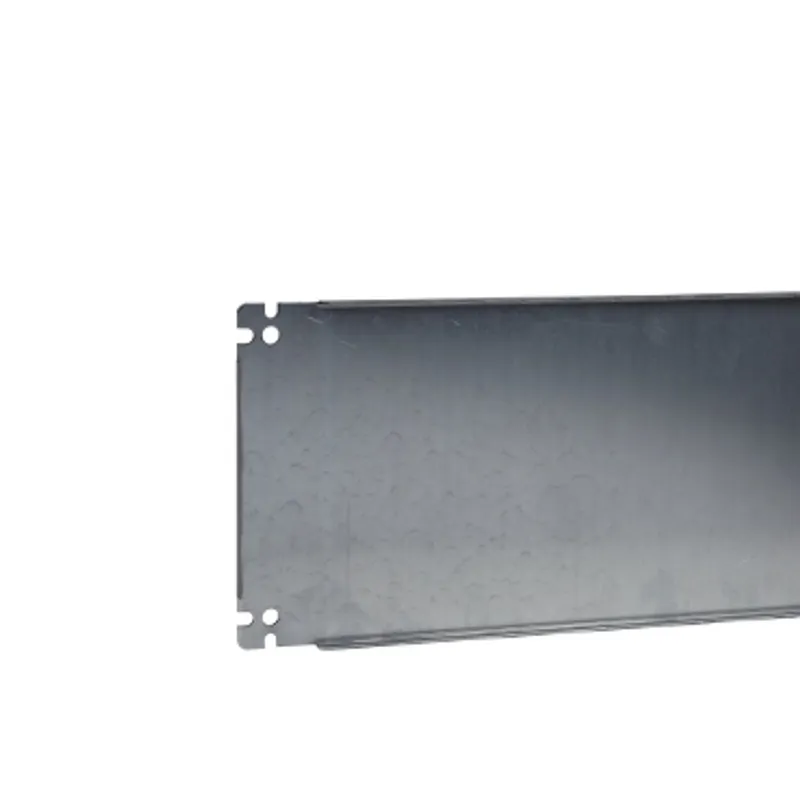

Partial mounting plate for PanelSeT SFN, and PanelSeT SM and SFX electrical enclosures. It has nominal height and width of 247 and 1100 mm respectively. This plate is provided with reinforcement flange on its four sides. The maximum admisible load on the plate is 250 kg/m2. They are made of galvanised steel. The set includes 1 plate and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting plate description | Partial plain |
| Range compatibility | PanelSeT PanelSeT SF SF, PanelSeT SM PanelSeT SM, PanelSeT SFX PanelSeT SFX |
| Device composition | 1 mounting plate, fixing elements |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing element - on structure location |
| Height | Nominal: 250 mm, 247 mm |
| Width | Nominal: 1200 mm, 1105 mm |
| Variant particularity | Horizontal fixing on cross rails |
Packaging
| Package 1 | 1 PCE, 112.500 cm × 27.500 cm × 3.000 cm (L × W × H), 6.300 kg |
| Package 2 | 40 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 267.000 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSPMP25120: frequently asked questions
When can NSYSPMP25120 be shipped?
NSYSPMP25120 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSPMP25120 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSPMP25120 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSPMP25120, subject to availability and destination.
