Schneider Electric NSYSPMP25100

Quarter-turn sliding nut - M8. Supply: 10 units

MPN: NSYSPMP25100
EAN: 3606485132396
Category: PanelSeT SM

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSPMP25100?

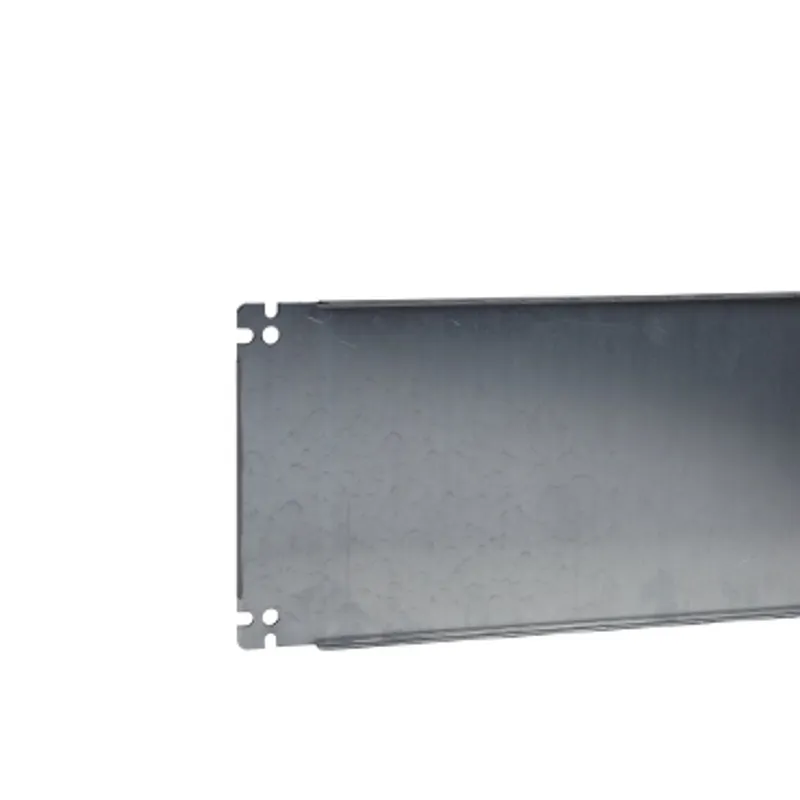

Partial mounting plate for PanelSeT SFN, and PanelSeT SM and SFX electrical enclosures. It has nominal height and width of 247 and 900 mm respectively. This plate is provided with reinforcement flange on its four sides. The maximum admisible load on the plate is 250 kg/m2. They are made of galvanised steel. The set includes 1 plate and fixing elements.

Specifications

Range	PanelSeT
Accessory / separate part category	Mounting accessory
Product or component type	Mounting plate
Device application	Multi-purpose
Enclosure nominal dimensions	-
Mounting plate description	Partial plain
Range compatibility	PanelSeT PanelSeT SF SF, PanelSeT SM PanelSeT SM, PanelSeT SFX PanelSeT SFX
Device composition	1 mounting plate, fixing elements
Quantity per set	Set of 1
Material	Galvanised steel
Fixing mode	By fixing element - on structure location
Height	Nominal: 250 mm, 247 mm
Width	Nominal: 1000 mm, 905 mm
Variant particularity	Horizontal fixing on cross rails

Packaging

Package 1	1 PCE, 92.000 cm × 27.000 cm × 3.000 cm (L × W × H), 5.160 kg
Package 2	48 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 261.000 kg
