Schneider Electric NSYSPLA150

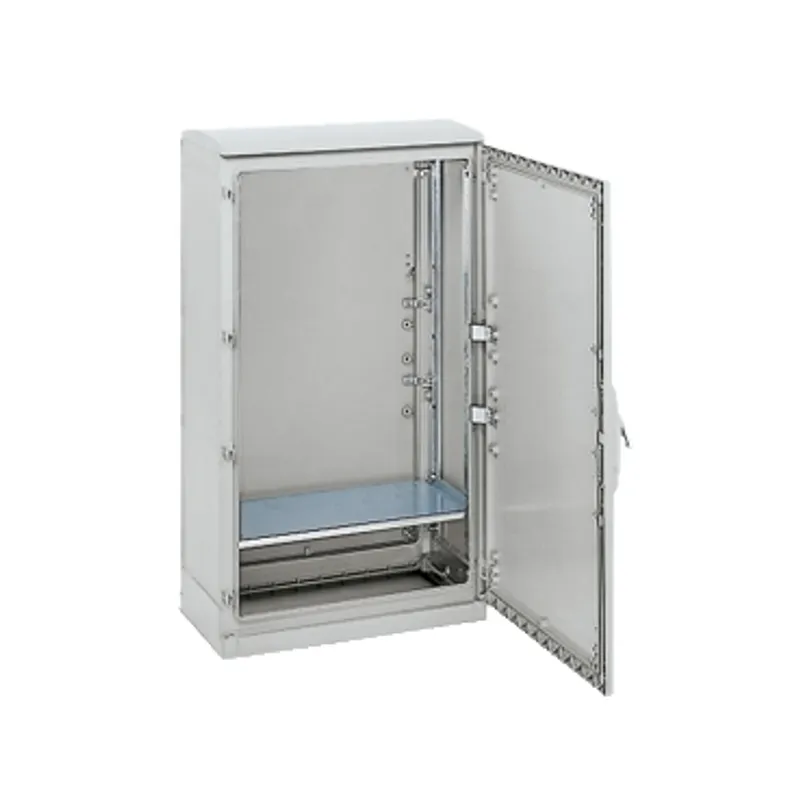

Set of 2 uprights for mount. hor.support plate or 19"chassis in PLAencl.H1500mm
- MPN
- NSYSPLA150
- EAN
- 3606480194573
- Category
- PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSPLA150?
Galvanised steel upright for PanelSeT PLA enclosures The nominal height is 1500mm and real height is 1335mm The uprights are used for mounting chassis and fixing wiring accessories Mounting is adjustable in depth every 25mm with caged nuts and adjustable in height every 2,5mm with quarter-turn nuts Fixed by fixing element on sides of enclosure location Cut-out dimension is 11 x 13mm The product is made of fixing elements, 1 right upright and 1 left upright
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Upright |
| device application | Multi-purpose |
| enclosure nominal dimensions | - H: 1500 mm |
| Mounting support | Intermediate support in the 2-door enclosures |
| Range compatibility | PanelSeT PLA |
| Device composition | Fixing elements, 1 right upright, 1 left upright |
| Material | Galvanised steel |
| Fixing mode | By fixing element - sides of enclosure location |
| Adjustment | Adjustable in depth every 25 mm with caged nuts, Adjustable in height every 2.5 mm with quarter-turn nuts |
| Height | Nominal: 1500 mm, Real: 1335 mm |
| Cut-out dimensions | 11 x 13 mm |
Packaging
| Package 1 | 1 PCE, 133.500 cm × 7.000 cm × 3.000 cm (L × W × H), 2.124 kg |
| Package 2 | 25 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 53.100 kg |
