Schneider Electric NSYSPLA75

Set of 2 uprights for mount. hor.support plate or 19"chassis in PLAencl.H750mm

MPN: NSYSPLA75
EAN: 3606480194542
Category: PanelSeT PLA

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSPLA75?

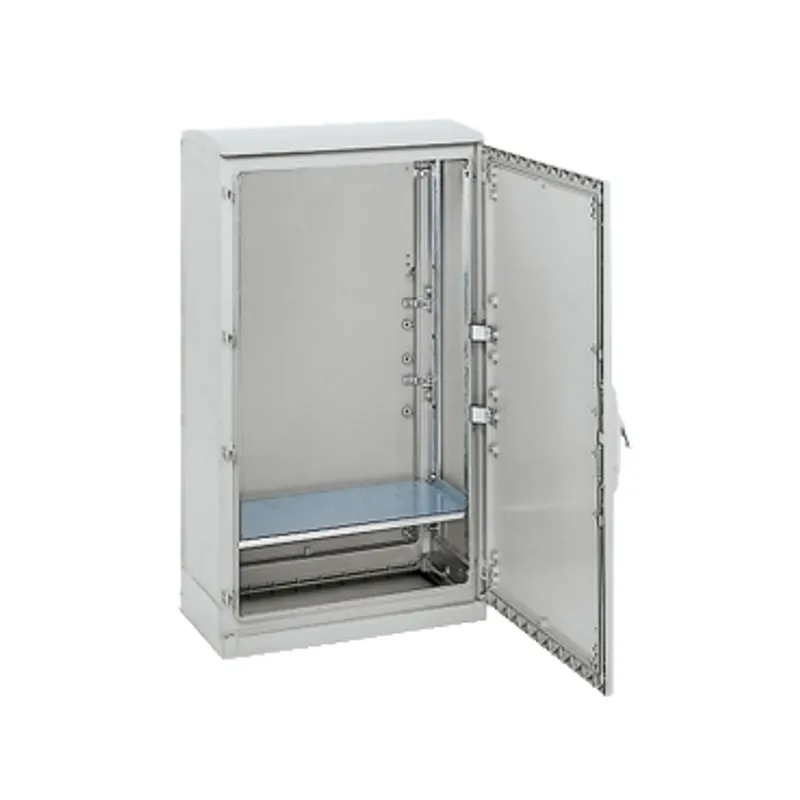

Galvanised steel upright for PanelSeT PLA enclosures The nominal height is 750mm The depth is 70mm The uprights are used for mounting chassis and fixing wiring accessories Mounting is adjustable in depth every 50mm with caged nuts Fixed by fixing element on sides of enclosure location Cut-out dimension is 11 x 13mm The product is made of fixing elements, 1 right upright and 1 left upright

Specifications

Range	PanelSeT
Accessory / separate part category	Mounting accessory
Product or component type	Upright
device application	Multi-purpose
enclosure nominal dimensions	- H: 750 mm D: 320 mm, - H: 750 mm D: 420 mm
Mounting support	Intermediate support in the 2-door enclosures
Range compatibility	PanelSeT PLA
Device composition	Fixing elements, 1 right upright, 1 left upright
Material	Galvanised steel
Fixing mode	By fixing element - sides of enclosure location
Adjustment	Adjustable in depth every 50 mm with caged nuts
Height	Nominal: 750 mm
Depth	70 mm
Cut-out dimensions	11 x 13 mm

Packaging

Package 1	1 PCE, 58.000 cm × 5.500 cm × 2.500 cm (L × W × H), 1.018 kg
Package 2	20 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 20.360 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYSPLA75PDF
