Schneider Electric NSYSPFX8200

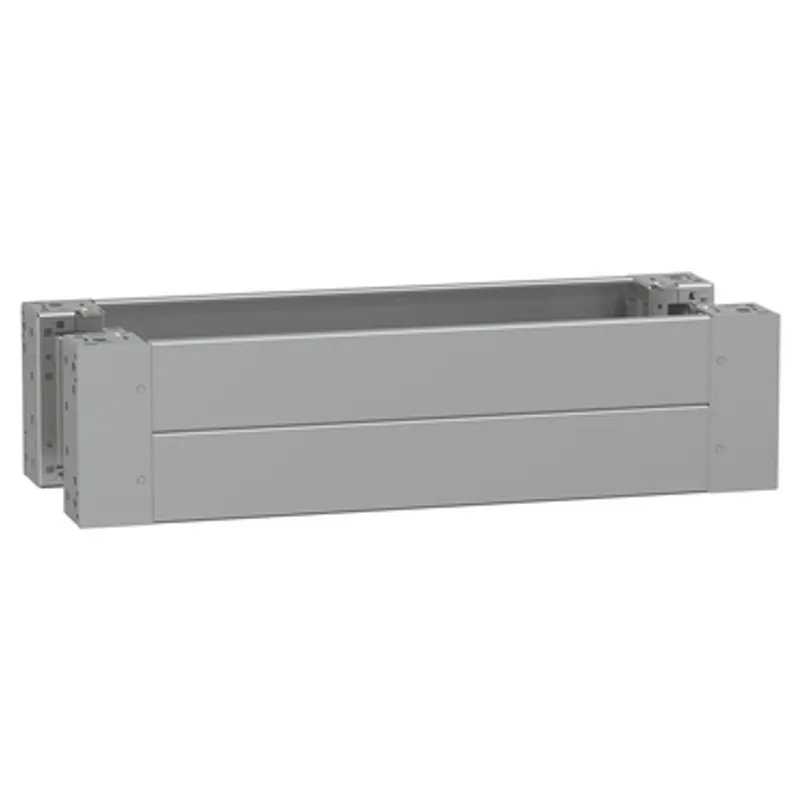

PanelSeT S3HD SFHD - outdoor heavy duty - front plinth - H200 W800 IP55

MPN: NSYSPFX8200
EAN: 3606480626210
Category: PanelSeT SFX

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSPFX8200?

Plinth front for outdoor heavy duty applications to be used with PanelSeT SF, PanelSeT SFX, PanelSeT SDX, PanelSeT CRNG, PanelSeT SM, PanelSeT SD, PanelSeT S3D, PanelSeT CRN, PanelSeT SFHD, PanelSeT S3HD, PanelSeT S3X and PanelSeT SMX enclosures The plinth front is to be used in multi-purpose applications The nominal width is 800mm and real width is 815mm The height is 200mm The kit is made of fixing elements, 4 corner covers, 1 front panel, 1 rear panel and 4 corners The product is made of Material : Stainless steel Net weight is 9kg Ingress protection rating is IP55 (complete plinth) Mechanical protection rating is IK10

Specifications

Range	PanelSeT
Application	Multi-purpose
Accessory / separate part category	Enclosure accessory
Product or component type	Plinth front
Nominal dimensions of the housing	-
Device composition	Fixing elements, 4 corner cover, 1 front panel, 1 rear panel, 4 corner
Range compatibility	PanelSeT PanelSeT SF SF, PanelSeT SM PanelSeT SM, PanelSeT S3D PanelSeT S3D, PanelSeT CRN PanelSeT CRN, PanelSeT PanelSeT SFHD SFHD, PanelSeT PanelSeT CRNG, PanelSeT S3HD, PanelSeT S3X PanelSeT S3X, PanelSeT SMX PanelSeT SMX, PanelSeT SFX PanelSeT SFX, PanelSeT PanelSeT SDX SDx
Mounting support	Fixing kit S3HD, Set plinth side panels SFHD
Fixing mode	By fixing element - on structure location
Surface finish	Untreated
Height	200 mm
Width	Nominal: 800 mm, Real: 815 mm
Net weight	9 kg
IP degree of protection	IP20 (complete plinth)
IK degree of protection	IK10

Packaging

Package 1	1 PCE, 80.500 cm × 20.500 cm × 19.500 cm (L × W × H), 10.098 kg
Package 2	21 PAM, 120.000 cm × 100.000 cm × 85.000 cm (L × W × H), 230.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYSPFX8200PDF
