Schneider Electric NSYSPFVX6200
PanelSeT S3HD SFHD - outdoor heavy duty - front ventilated plinth- H200 W600 IP55
- MPN
- NSYSPFVX6200
- EAN
- 3606480652844
- Category
- PanelSeT for outdoors operation
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSPFVX6200?

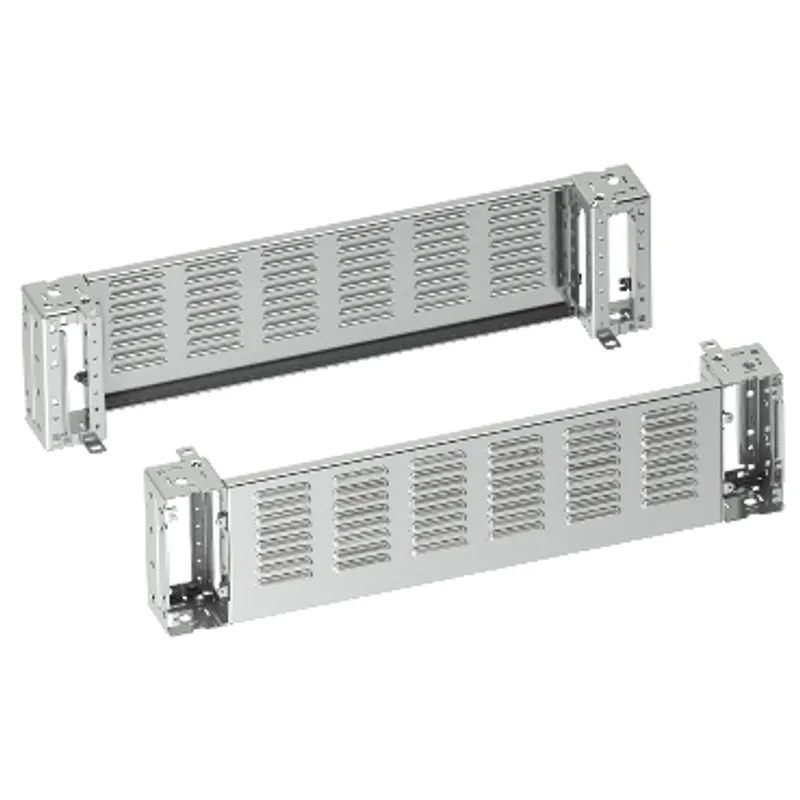

Ventilated front plinth for outdoor heavy duty applications to be used with PanelSet SFHD and PanelSet S3HD enclosures The ventilated front plinth is to be used in multi-purpose applications The nominal width is 600mm The height is 200mm The kit is made of fixing elements, 4 corner covers, 1 front panel, 1 rear panel and 4 corners The product is made of Material : Stainless steel Net weight is 7,52kg Ingress protection rating is IP55 (completed plinth with grille and filter) Mechanical protection rating is IK10
Specifications
Specifications
| Range | PanelSeT |
| Application | Multi-purpose |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Ventilated front plinth |
| Nominal dimensions of the housing | - |
| Device composition | Fixing elements, 4 corner cover, 1 front panel, 1 rear panel, 4 corner |
| Range compatibility | PanelSeT SFHD, PanelSeT S3HD |
| Mounting support | Fixing kit S3HD, Set plinth side panels SFHD |
| Fixing mode | By fixing element - on structure location |
| Surface finish | Untreated |
| Height | 200 mm |
| Width | Nominal: 600 mm |
| Net weight | 7.52 kg |
| IP degree of protection | IP55 (completed plinth with grille and filter) |
| IK degree of protection | IK10 |
Packaging
| Package 1 | 1 PCE, 61.000 cm × 21.000 cm × 20.000 cm (L × W × H), 8.426 kg |
| Package 2 | 32 PAM, 120.000 cm × 100.000 cm × 98.000 cm (L × W × H), 283.000 kg |
