Schneider Electric NSYSPF6100

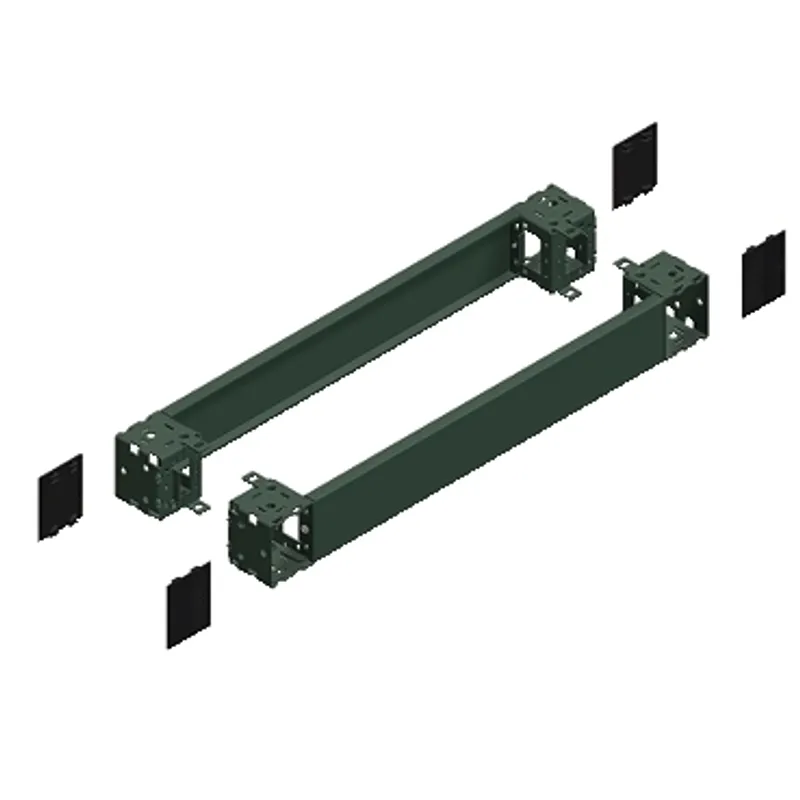

Front & rear plinth, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W600mm, plinth H100mm
- MPN
- NSYSPF6100
- EAN
- 3606485126562
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSPF6100?
Plain front and back plinth panels for PanelSeT, PanelSeT and PrismaSeT electrical enclosures. The product is made of folded sheet steel. It is suitable for enclosures with a nominal width of 600 mm and its height is 100 mm. The set contains 4 corners with its covers, 1 front panel, 1 rear panel and the fixing elements. The color is grey RAL7022. The ingress protection rating is IP30 (complete plinth) and the mechanical protection rating is IK10. The permanent permissible load is 1300kg. Anti-corrosion protection is ensured by an epoxy-polyester powder coating. .
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Front and rear plinth |
| Application | PC application, Electronic application, Multi-purpose, Compartmentalised application |
| Nominal dimensions of the housing | - |
| Device composition | Fixing elements, 4 corner cover, 1 front panel, 1 rear panel, 4 corner |
| Range compatibility | PanelSeT PanelSeT SF SF, PanelSeT SM PanelSeT SM, PanelSeT S3D PanelSeT S3D, PanelSeT CRN PanelSeT CRN, PanelSeT SFN |
| Mounting support | Plinth side panels |
| Fixing mode | By fixing element - on structure location |
| Colour | Grey (RAL 7022) |
| Surface finish | Epoxy-polyester powder |
| Permanent permissible load | 1300 kg |
| Height | 100 mm |
| Width | Nominal: 600 mm |
| IP degree of protection | IP20 (complete plinth) |
| IK degree of protection | IK10 |
Packaging
| Package 1 | 1 PCE, 61.000 cm × 20.000 cm × 11.000 cm (L × W × H), 4.300 kg |
| Package 2 | 64 PAM, 120.000 cm × 100.000 cm × 103.000 cm (L × W × H), 285.000 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSPF6100: frequently asked questions
When can NSYSPF6100 be shipped?
NSYSPF6100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSPF6100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSPF6100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSPF6100, subject to availability and destination.
