Schneider Electric NSYSPF7200

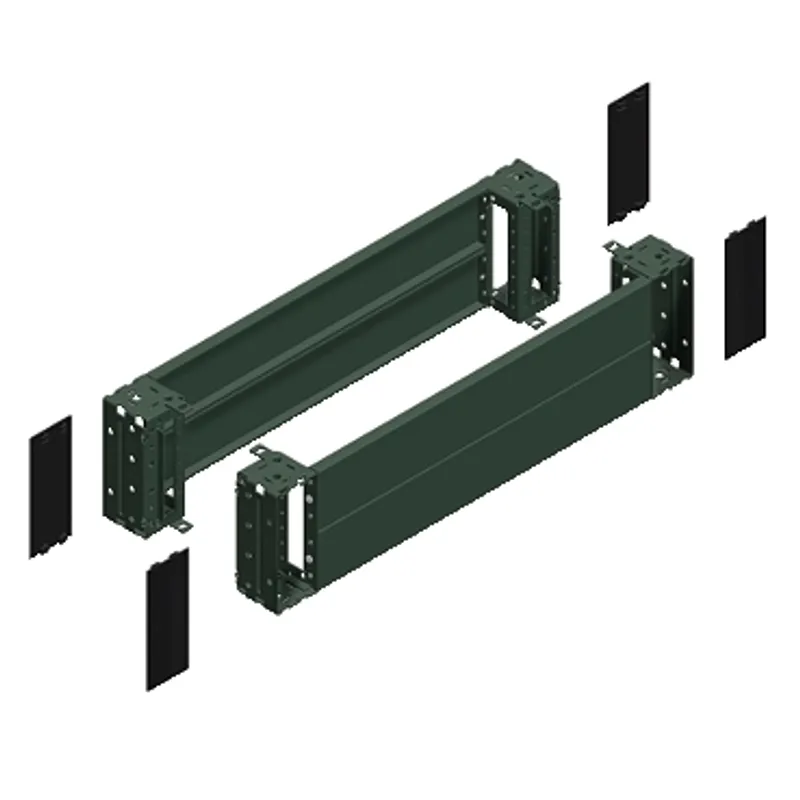

Front & rear plinth, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W700mm, plinth H200mm
- MPN
- NSYSPF7200
- EAN
- 3606480169243
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSPF7200?
Plain front and back plinth panels for PanelSeT, PanelSeT and PrismaSeT electrical enclosures. The product is made of folded sheet steel. It is suitable for enclosures with a nominal width of 700 mm and its height is 200 mm. The set contains 4 corners with its covers, 2 front panels, 2 rear panels and the fixing elements. The color is grey RAL7022. The ingress protection rating is IP30 (complete plinth) and the mechanical protection rating is IK10. The permanent permissible load is 1300kg. Anti-corrosion protection is ensured by an epoxy-polyester powder coating. .
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Plinth front |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Device composition | Fixing elements, 4 corner cover, 4 corner, 2 front panel, 2 rear panel |
| Range compatibility | Prisma Prisma PH PH, PanelSeT SFN |
| Mounting support | Plinth side panels |
| Fixing mode | By fixing element - on structure location |
| Colour | Grey (RAL 7022) |
| Surface finish | Epoxy-polyester powder |
| Permanent permissible load | 1300 kg |
| Height | 200 mm |
| Width | Nominal: 700 mm |
| IP degree of protection | IP20 (complete plinth) |
| IK degree of protection | IK10 |
Packaging
| Package 1 | 1 PCE, 81.500 cm × 21.000 cm × 19.500 cm (L × W × H), 8.390 kg |
| Package 2 | 28 PAM, 120.000 cm × 100.000 cm × 110.500 cm (L × W × H), 247.000 kg |
