Schneider Electric NSYSPF4100

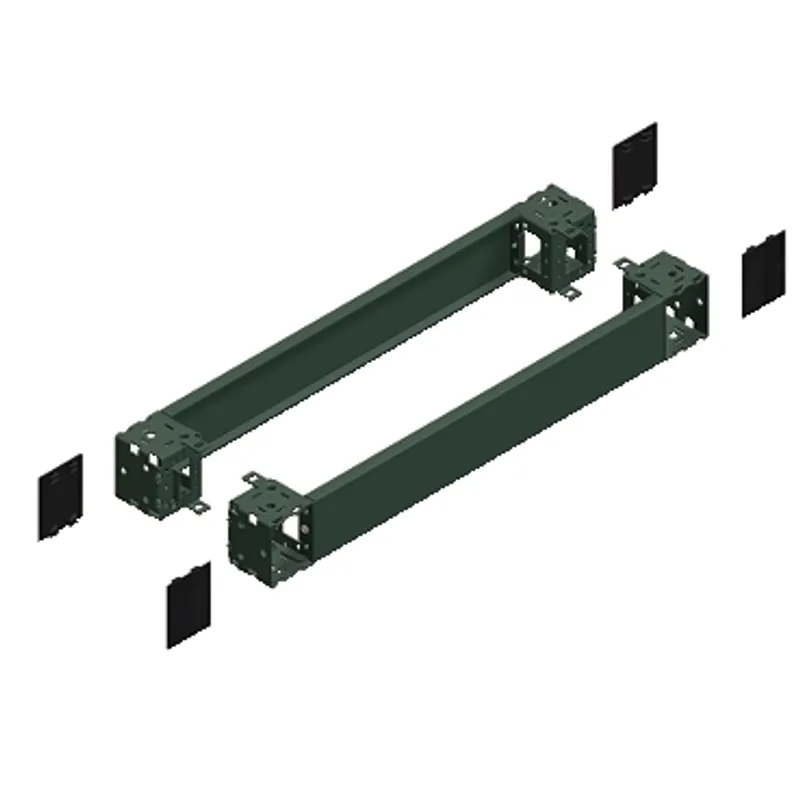

Front & rear plinth, PanelSeT SFN, PanelSeT SF, for electrical enclosure W400mm, plinth H100mm
- MPN
- NSYSPF4100
- EAN
- 3606485126555
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSPF4100?
Plain front and back plinth panels for PanelSeT, PanelSeT and PrismaSeT electrical enclosures. The product is made of folded sheet steel. It is suitable for enclosures with a nominal width of 400 mm and its height is 100 mm. The set contains 4 corners with its covers, 1 front panel, 1 rear panel and the fixing elements. The color is grey RAL7022. The ingress protection rating is IP30 (complete plinth) and the mechanical protection rating is IK10. The permanent permissible load is 1300kg. Anti-corrosion protection is ensured by an epoxy-polyester powder coating. .
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Plinth front |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Device composition | Fixing elements, 4 corner cover, 1 front panel, 1 rear panel, 4 corner |
| Range compatibility | PanelSeT PanelSeT SF SF, PanelSeT SM PanelSeT SM, PanelSeT S3D, PanelSeT CRN, PanelSeT SFN |
| Mounting support | Plinth side panels |
| Fixing mode | By fixing element - on structure location |
| Colour | Grey (RAL 7022) |
| Surface finish | Epoxy-polyester powder |
| Permanent permissible load | 1300 kg |
| Height | 100 mm |
| Width | Nominal: 400 mm |
| IP degree of protection | IP20 (complete plinth) |
| IK degree of protection | IK10 |
Packaging
| Package 1 | 1 PCE, 42.000 cm × 20.500 cm × 11.000 cm (L × W × H), 3.800 kg |
| Package 2 | 100 PAM, 120.000 cm × 100.000 cm × 100.000 cm (L × W × H), 380.000 kg |
