Schneider Electric NSYSMX201660

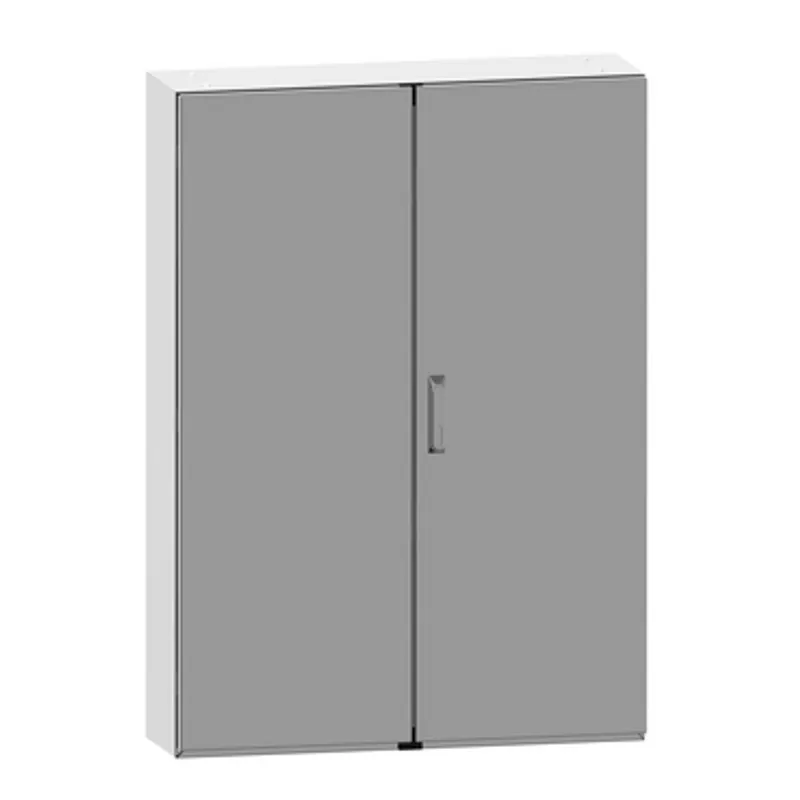

SMX 304L stainless monobloc enclosure, H2000xW1600xD600mm, Scotch Brite® finish.
- MPN
- NSYSMX201660
- EAN
- 3606480155888
- Category
- PanelSeT SMX
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSMX201660?
"PanelSeT SMX is a stainless steel 304L floor-standing enclosure designed for multi-purpose applications and resistance to corrosion" "It is designed for use in harsh environments and has an IK10 rating (IEC 62262) for high impact resistance and an IP55 rating (IEC 60529) for dust and water resistance" "This enclosure has a nominal height, width and depth of 2000mm, 1600mm and 600mm respectively" "The enclosure is made with a Scotch-Brite® brushed surface finish and consists of a body, a cable gland plate, two plain doors, four mounting plate brackets, and a locking system with handle on the door" "The doors can be opened up to 120°, allowing easy access to the equipment inside" "The enclosure has a three-point lock with a handle with 5mm double-bar insert" "The doors and the mounting plate brackets can be removed for maintenance purposes" "The net weight of the enclosure is 200kg and it complies with IEC 62208 standards"
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SMX |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 2000 mm |
| nominal width | 1600 mm |
| nominal depth | 600 mm |
| product installation | Floor-standing |
| Device composition | 1 body, 2 door, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket |
| Body type | Single piece body folded and welded |
| Door type | Plain |
| Door opening side | Reversible (120 °) |
| Number of doors | Front face: 2 door(s) |
| Lock type | 3 points lock, handle with 5 mm double-bar insert |
| Type of gland plate | Plain |
| Accessibility for operation | Front |
| Mounting plate description | Without mounting plate |
| Material | Body and door: stainless steel 304L, Handle: zamak, Hinge: stainless steel |
| Removable parts | Door by hinges, Mounting plate bracket by screws, Cable gland plate by clips |
| Surface finish | Enclosure: Scotch-Brite® brushed, Handle: painted |
| Net weight | 200 kg |
| Standards | IEC 62208, UL, CUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Product certifications | CAN/CSA 22, UL 508 |
| Environmental characteristic | Specific hygiene, Corrosive |
Packaging
| Package 1 | 1 PCE, 69.000 cm × 165.000 cm × 213.000 cm (L × W × H), 212.000 kg |
