Schneider Electric NSYSM18640T

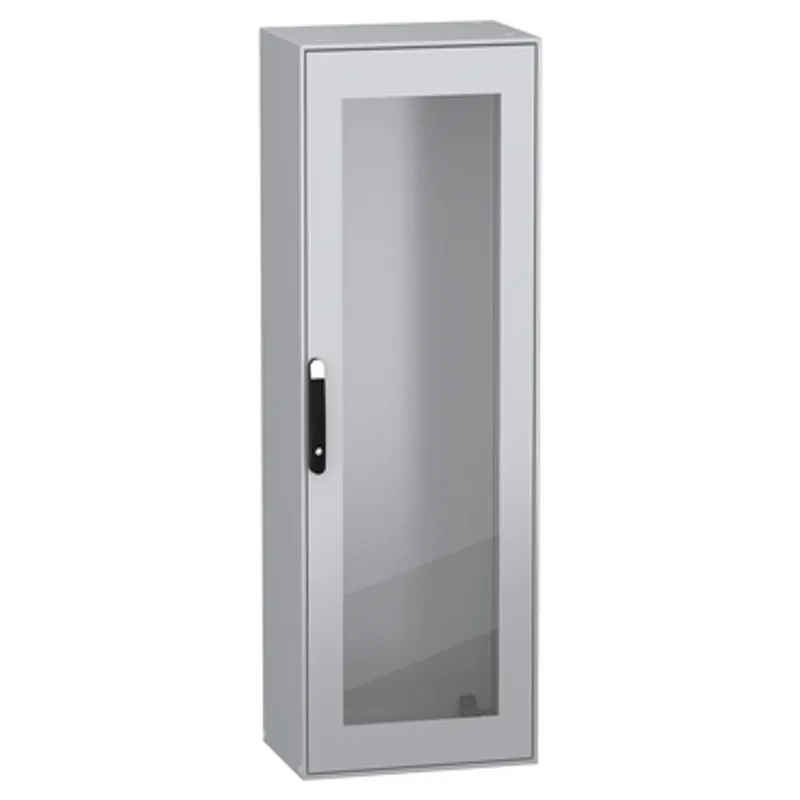

PanelSeT SM compact enclosure with glazed door - 1800x600x400 mm
- MPN
- NSYSM18640T
- EAN
- 3606485120959
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYSM18640T (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSM18640T?
Spacial SM monobloc compact steel enclosure with glazed front door. 1799 x 800 x 400 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Sheet steel. Protection IP 55, IK08, Grey RAL 7035. 4 mounting plate support brackets included.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SM |
| Product or component type | Compact enclosure |
| Application | Multi-purpose |
| Installation accessory type | Floor-standing |
| Device composition | 1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 door |
| Removable parts | Door by screws hinge, Mounting plate bracket by screws |

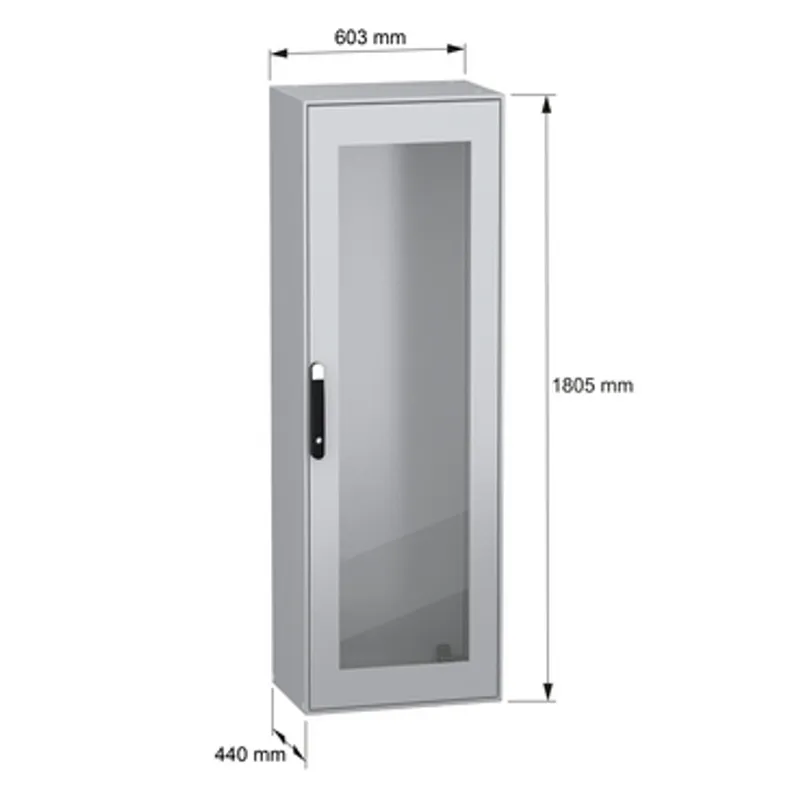

| Enclosure nominal height | 1800 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 400 mm |
| Number of doors | Front: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Door type | Glazed |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Body type | Single piece body with welded rear panel, Front part forming a rigid frame with welded corners |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| cable entry | 1 entry |
| Material | Door: Securit glass, Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation | Front |
| Net weight | 79.5 kg |
| Standards | IEC 62208 |
| Product certifications | DNV, UL, BV |
| IK degree of protection | IK08 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 49.000 cm × 65.000 cm × 193.000 cm (L × W × H), 66.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSM18640T: frequently asked questions
Can I still buy the NSYSM18640T now that it is discontinued?
Yes. Schneider Electric has discontinued the NSYSM18640T, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can NSYSM18640T be shipped?
NSYSM18640T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSM18640T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSM18640T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSM18640T, subject to availability and destination.
