Schneider Electric NSYSM18640
PanelSeT SM compact enclosure without mounting plate - 1800x600x400 mm
- MPN
- NSYSM18640
- EAN
- 3606485120645
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYSM18640 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

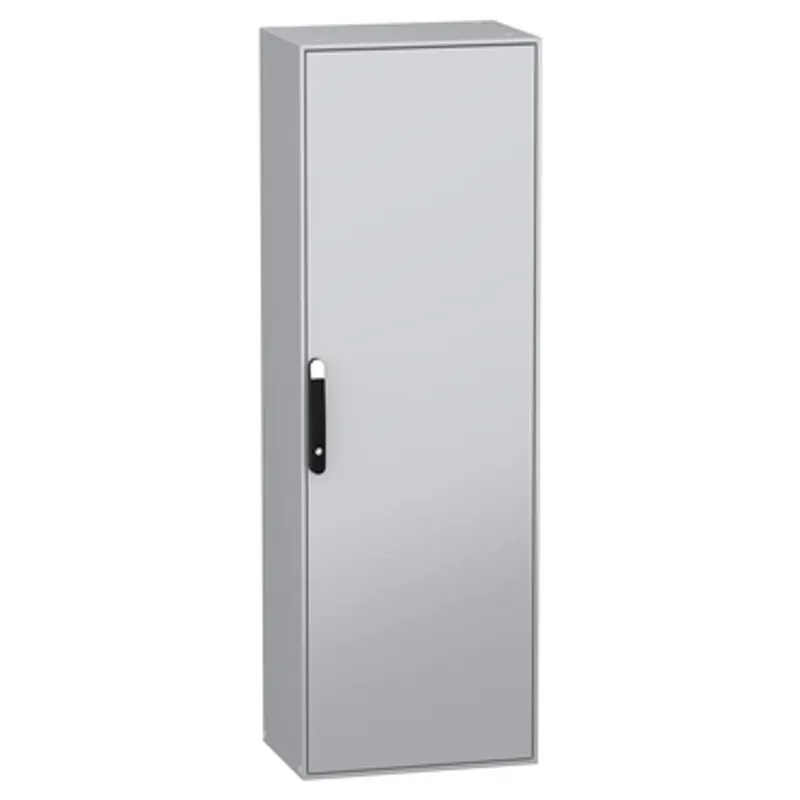

What is the Schneider Electric NSYSM18640?
Spacial SM steel compact floor-standing enclosure for a multi-purpose application It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP55 rating (IEC60529) This enclosure has a nominal height, width and depth of 1800mm, 600mm and 400mm respectively The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) The enclosure consists of a body, one cable gland plate, one plain door, four mounting plate brackets and a locking system with handle on the door The door can be opened up to 120°, allowing easy access to the equipment inside The enclosure has a four-point lock with a handle with 5mm double-bar insert
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SM |
| Product or component type | Compact enclosure |
| Application | Multi-purpose |
| Installation accessory type | Floor-standing |
| Device composition | 1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 door |
| Removable parts | Door by screws hinge, Mounting plate bracket by screws |

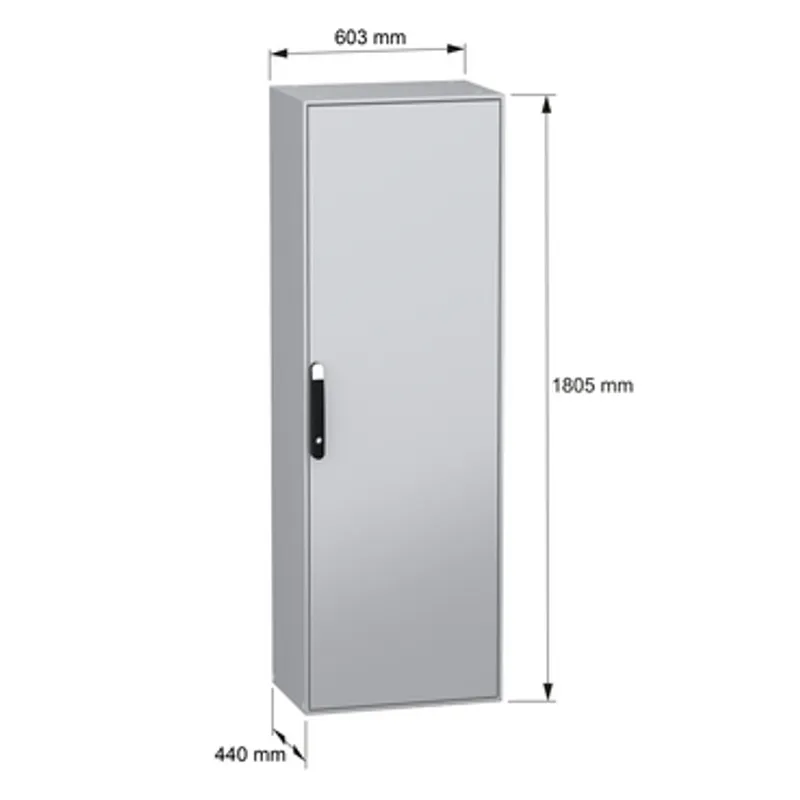

| Enclosure nominal height | 1800 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 400 mm |
| Number of doors | Front: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Door type | Plain |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Body type | Single piece body with welded rear panel, Front part forming a rigid frame with welded corners |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| cable entry | 1 entry |
| Material | Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation | Front |
| Net weight | 79.5 kg |
| Standards | IEC 62208 |
| Product certifications | UL, BV, DNV |
| IK degree of protection | IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 49.000 cm × 65.000 cm × 193.000 cm (L × W × H), 73.000 kg |
| Package 2 | 2 PAL, 98.000 cm × 65.000 cm × 193.000 cm (L × W × H), 146.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSM18640: frequently asked questions
Can I still buy the NSYSM18640 now that it is discontinued?
Yes. Schneider Electric has discontinued the NSYSM18640, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can NSYSM18640 be shipped?
NSYSM18640 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSM18640 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSM18640 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSM18640, subject to availability and destination.
