NSYSM1816402DPPanelSeT SM compact enclosure with mounting plate - 1800x1600x400 mm
Schneider Electric NSYSM18630P
PanelSeT SM compact enclosure with mounting plate - 1800x600x300 mm
- MPN
- NSYSM18630P
- EAN
- 3606485120188
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSM18630P?

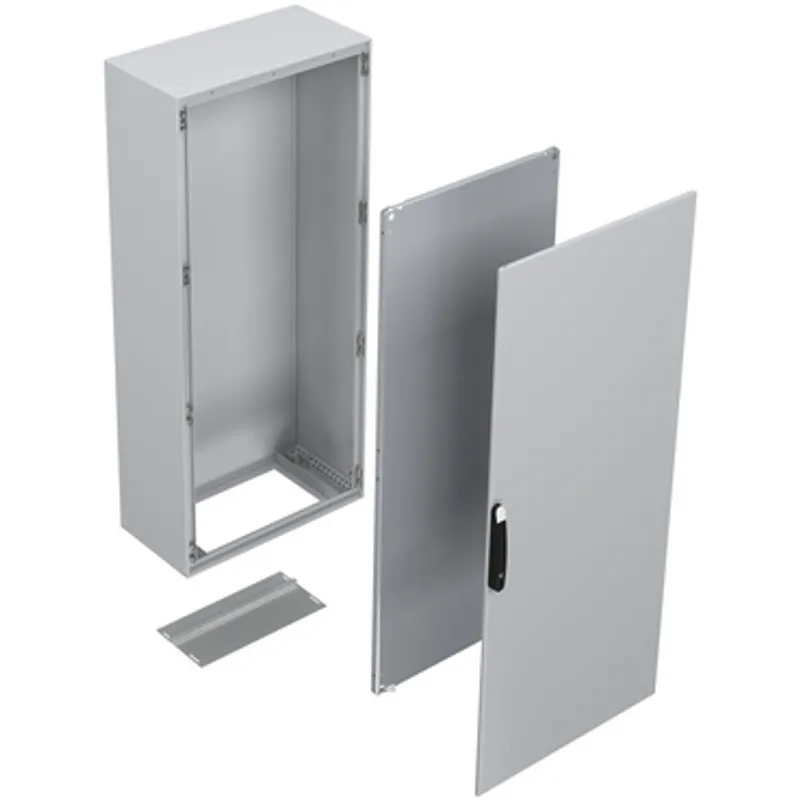

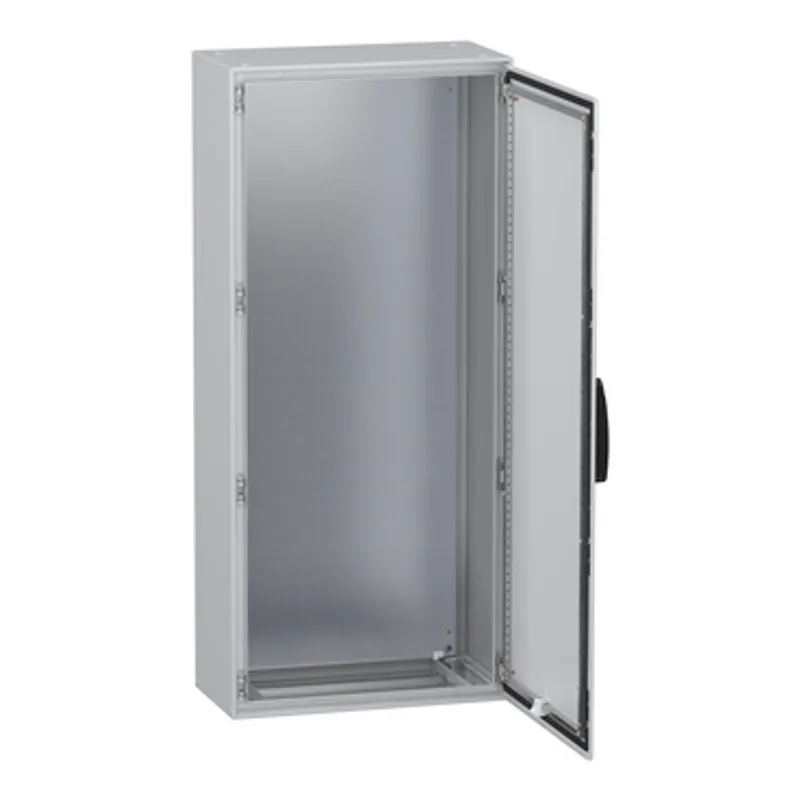

"PanelSeT SM is a multi-purpose steel floor-standing enclosure designed for use in harsh environments" "It has a nominal height, width and depth of 1800mm, 600mm and 300mm respectively" "The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005)" "The enclosure consists of a body, one cable gland plate, four mounting plate brackets, one mounting plate, one plain door and a locking system with handle on the door" "The door can be opened up to 120°, allowing easy access to the equipment inside" "The enclosure has a four-point lock with a handle with 5mm double-bar insert" "The door, mounting plate and mounting plate brackets can be removed for maintenance purposes" "The net weight of the enclosure is 90kg" "It is certified by DNV, BV and UL and conforms to IEC 62208, IK10 (IEC62262) and IP55 (IEC60529)"
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SM |
| Product or component type | Compact enclosure |
| Application | Multi-purpose |
| Installation accessory type | Floor-standing |
| Device composition | 1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 mounting plate, 1 door |
| Removable parts | Door by screws hinge, Mounting plate by screws mounting plate bracket, Mounting plate bracket by screws |

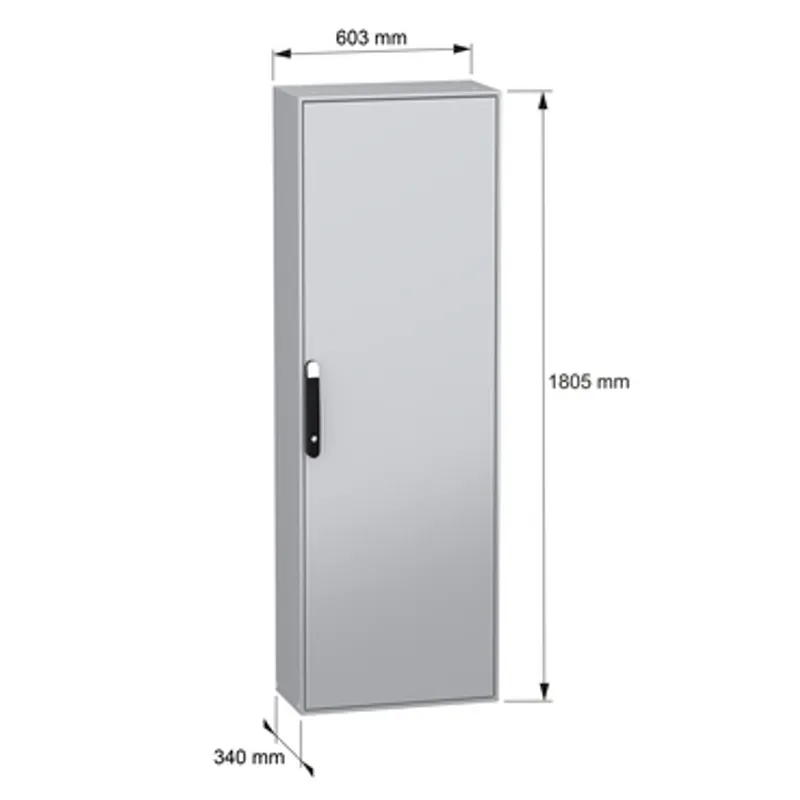

| Enclosure nominal height | 1800 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 300 mm |
| Number of doors | Front: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Door type | Plain |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Body type | Front part forming a rigid frame with welded corners, Single piece body with welded rear panel |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| cable entry | 1 entry |
| Material | Mounting plate: galvanised steel, Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation | Front |
| Net weight | 90 kg |
| Standards | IEC 62208 |
| Product certifications | DNV, BV, UL |
| IK degree of protection | IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 39.000 cm × 65.000 cm × 193.000 cm (L × W × H), 84.000 kg |
| Package 2 | 2 PAL, 78.000 cm × 65.000 cm × 193.000 cm (L × W × H), 168.000 kg |
