Schneider Electric NSYSM14630

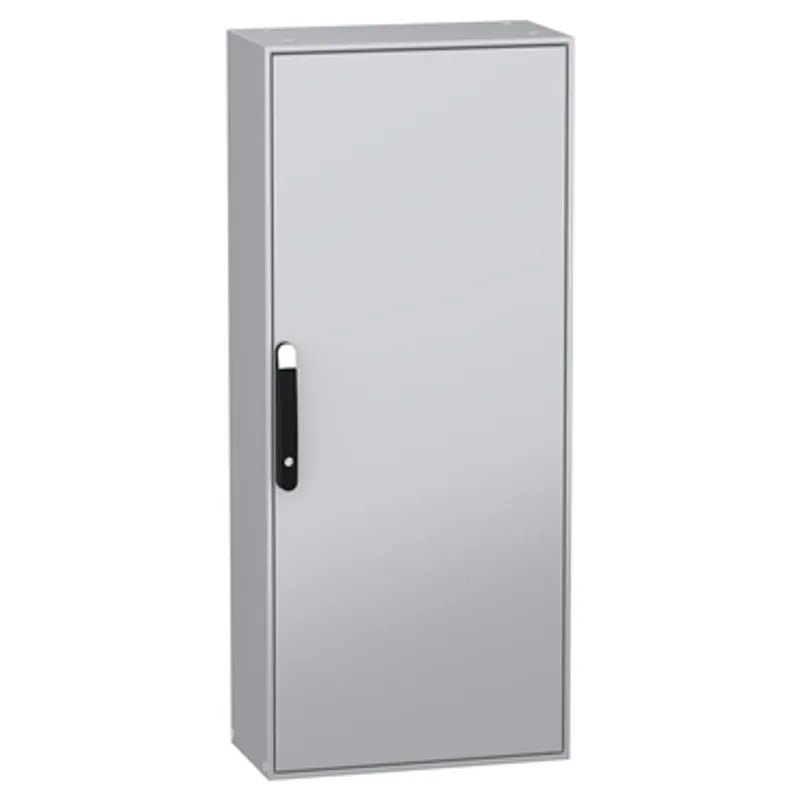

PanelSeT SM compact enclosure without mounting plate - 1400x600x300 mm

MPN: NSYSM14630
EAN: 3606485120492
Category: PanelSeT SM

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSM14630?

Spacial SM is a multi-purpose steel floor-standing enclosure designed for use in harsh environments It has a nominal height, width and depth of 1400mm, 600mm and 300mm respectively The enclosure is made of sheet steel with an epoxy-polyester powder surface finish and comes in grey (RAL7035) for the enclosure and black (RAL9005) for the handle It has a four-point lock with a handle with 5mm double-bar insert The enclosure consists of a body, one cable gland plate, four mounting plate brackets, one reversible door and a locking system with handle on the door The door can be opened up to 120°, allowing easy access to the equipment inside The doors and the mounting plate brackets can be removed for maintenance purposes

Specifications

Range	PanelSeT
Product name	PanelSeT SM
Product or component type	Compact enclosure
Application	Multi-purpose
Installation accessory type	Floor-standing
Device composition	1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 door
Removable parts	Door by screws hinge, Mounting plate bracket by screws

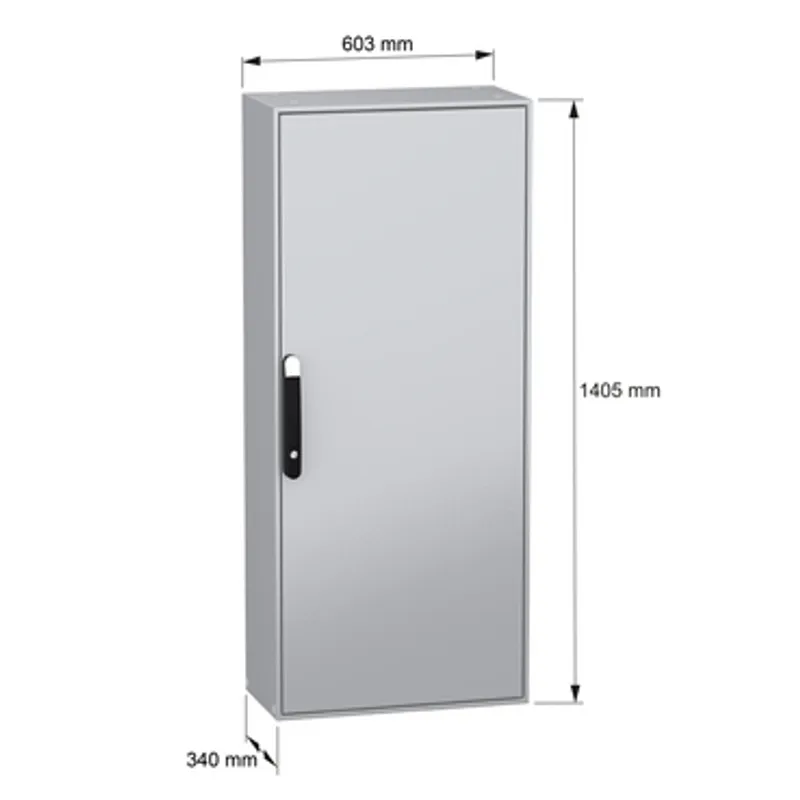

Enclosure nominal height	1400 mm
Enclosure nominal width	600 mm
Enclosure nominal depth	300 mm
Number of doors	Front: 1 door(s)
Door opening side	Reversible (120 °)
Door type	Plain
Lock type	4 points lock, handle with 5 mm double bar insert
Body type	Front part forming a rigid frame with welded corners, Single piece body with welded rear panel
Mounting plate description	Without mounting plate
Type of gland plate	Standard
cable entry	1 entry
Material	Body: sheet steel, Door: sheet steel, Hinge: zamak
Surface finish	Epoxy-polyester powder
Colour	Enclosure: grey (RAL 7035), Handle: black (RAL 9005)
Accessibility for operation	Front
Net weight	58 kg
Standards	IEC 62208
Product certifications	UL, DNV, BV
IK degree of protection	IK10 conforming to IEC 62262, conforming to UL, conforming to cUL
IP degree of protection	IP55 conforming to IEC 60529
Coverage	Core product

Packaging

Package 1	1 PCE, 39.000 cm × 65.000 cm × 153.000 cm (L × W × H), 53.000 kg
Package 2	2 PAL, 78.000 cm × 65.000 cm × 153.000 cm (L × W × H), 106.000 kg
