Schneider Electric

Schneider Electric NSYSM1410402D

PanelSeT SM compact enclosure without mounting plate - 1400x1000x400 mm

MPN: NSYSM1410402D
EAN: 3606485120539
Category: PanelSeT SM

Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original NSYSM1410402D (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSM1410402D?

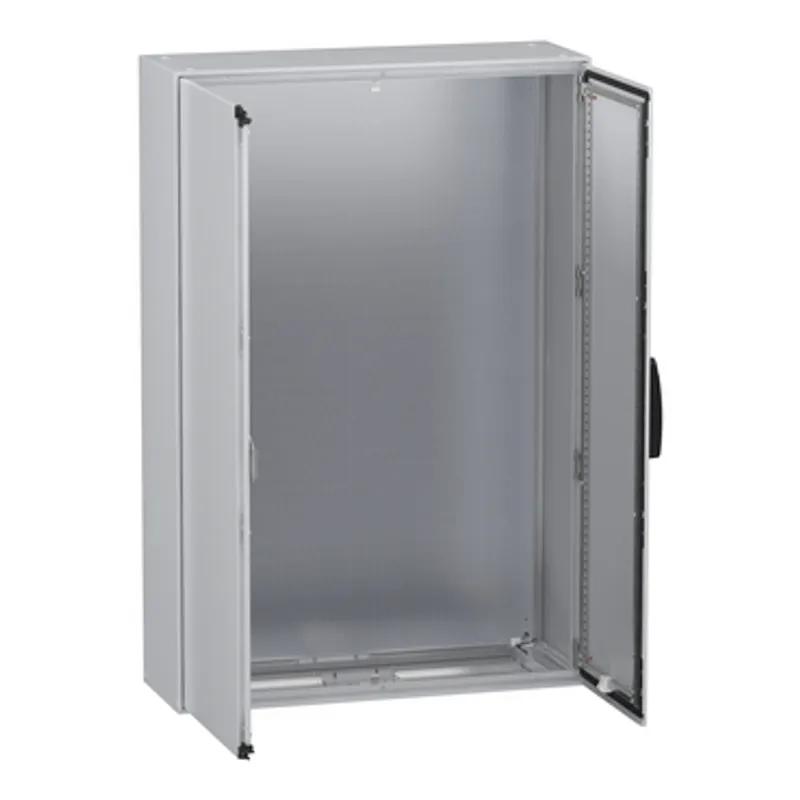

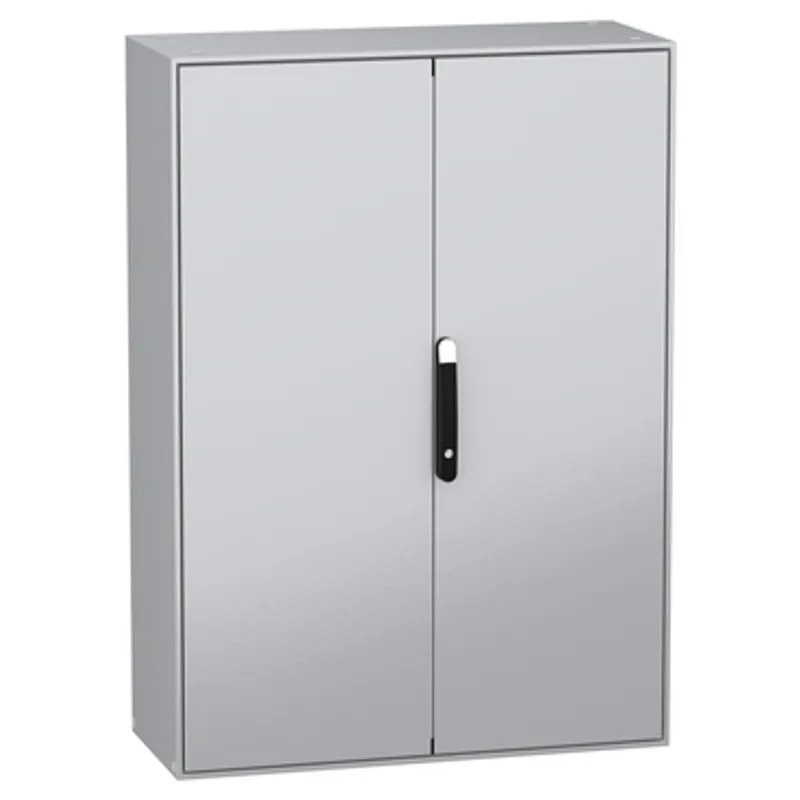

Spacial SM steel compact floor-standing enclosure is designed for multi-purpose applications in harsh environments It has a nominal height, width and depth of 1400mm, 1000mm and 400mm respectively The enclosure is made of sheet steel and the doors and hinge are made of zamak It is certified by DNV, UL and BV and has an IK10 rating (IEC62262) and an IP55 rating (IEC60529) The enclosure is grey (RAL7035) in color with an epoxy-polyester powder surface finish and the handle is black (RAL9005) It has a single-piece body with a welded rear panel and a front part forming a rigid frame with welded corners It consists of two plain doors, one cable gland plate, four mounting plate brackets, a blocking system on left door and a locking system with handle on the door

Specifications

Range	PanelSeT
Product name	PanelSeT SM
Product or component type	Compact enclosure
Application	Multi-purpose
Installation accessory type	Floor-standing

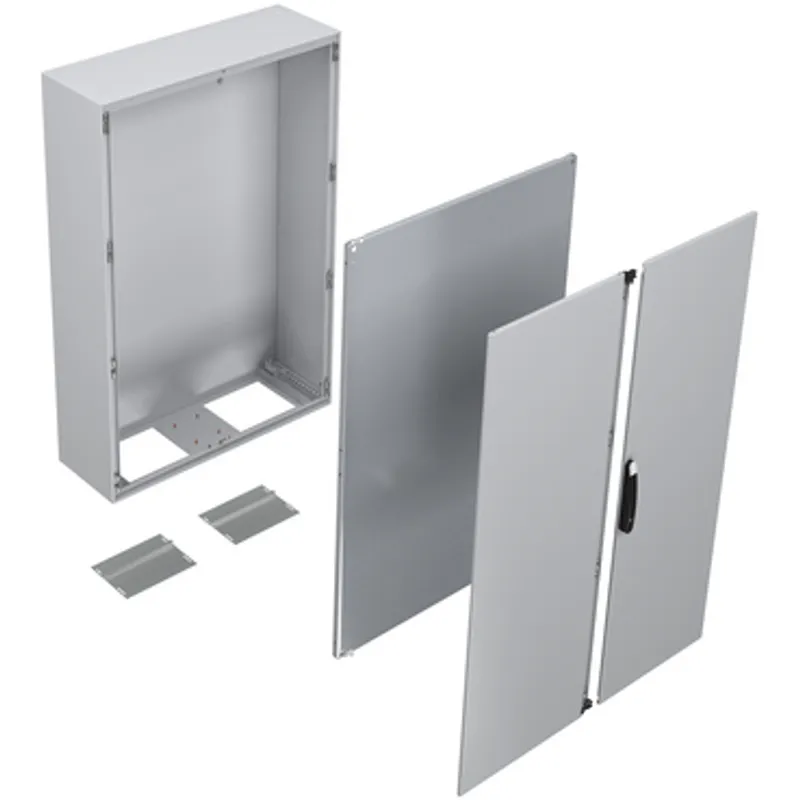

Device composition	1 body, 2 door, 1 cable gland plate, 1 locking system with handle: door, 1 blocking system: left door, 4 mounting plate bracket
Removable parts	Door by screws hinge, Mounting plate bracket by screws

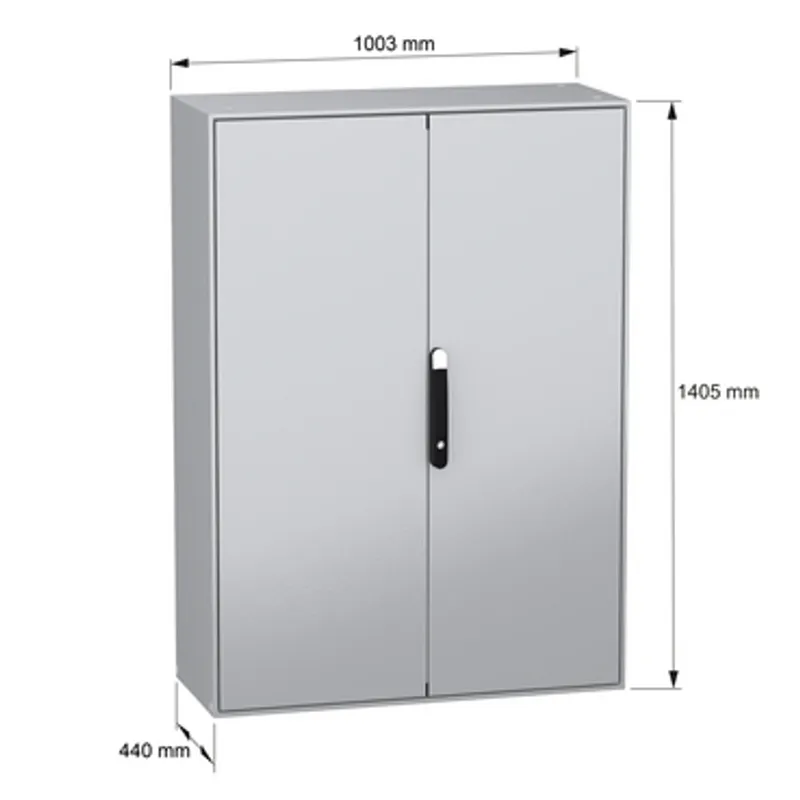

Enclosure nominal height	1400 mm
Enclosure nominal width	1000 mm
Enclosure nominal depth	400 mm
Number of doors	Front: 2 door(s)
Door opening side	Left (120 °), Right (120 °)
Door type	Plain
Lock type	4 points lock, handle with 5 mm double bar insert
Body type	Single piece body with welded rear panel, Front part forming a rigid frame with welded corners
Mounting plate description	Without mounting plate
Type of gland plate	Standard
cable entry	1 entry
Material	Body: sheet steel, Door: sheet steel, Hinge: zamak
Surface finish	Epoxy-polyester powder
Colour	Enclosure: grey (RAL 7035), Handle: black (RAL 9005)
Accessibility for operation	Front
Net weight	78 kg
Standards	IEC 62208
Product certifications	BV, DNV, UL
IK degree of protection	IK10 conforming to IEC 62262, conforming to UL, conforming to cUL
IP degree of protection	IP55 conforming to IEC 60529
Coverage	Core product

Packaging

Package 1	1 PCE, 49.000 cm × 105.000 cm × 153.000 cm (L × W × H), 83.000 kg
Package 2	2 PAL, 98.000 cm × 105.000 cm × 153.000 cm (L × W × H), 166.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYSM1410402DPDF

NSYSM1410402D: frequently asked questions

Can I still buy the NSYSM1410402D now that it is discontinued?

Yes. Schneider Electric has discontinued the NSYSM1410402D, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can NSYSM1410402D be shipped?

NSYSM1410402D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYSM1410402D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYSM1410402D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSM1410402D, subject to availability and destination.
