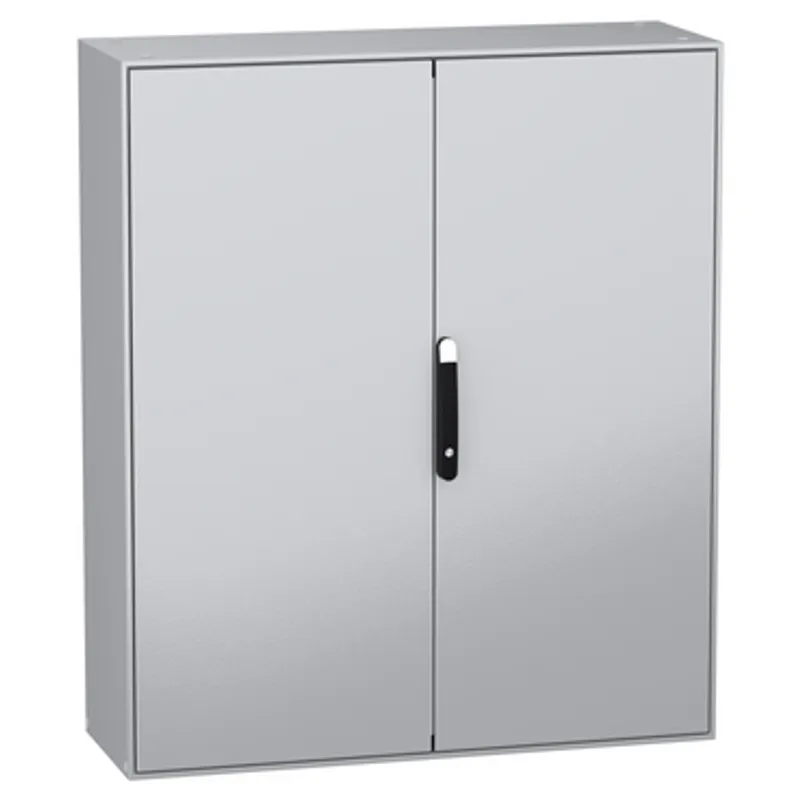

PanelSeT SM compact enclosure without mounting plate - 1400x1200x400 mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 81 kg |
Shipping & availability
When can NSYSM1412402D be shipped?
NSYSM1412402D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSM1412402D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSM1412402D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSM1412402D, subject to availability and destination.

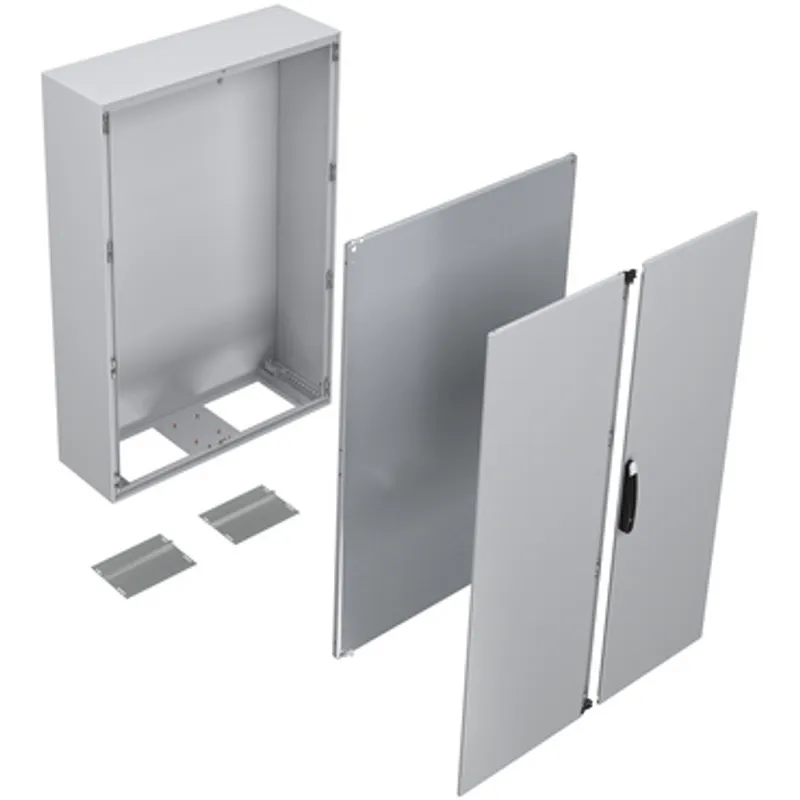

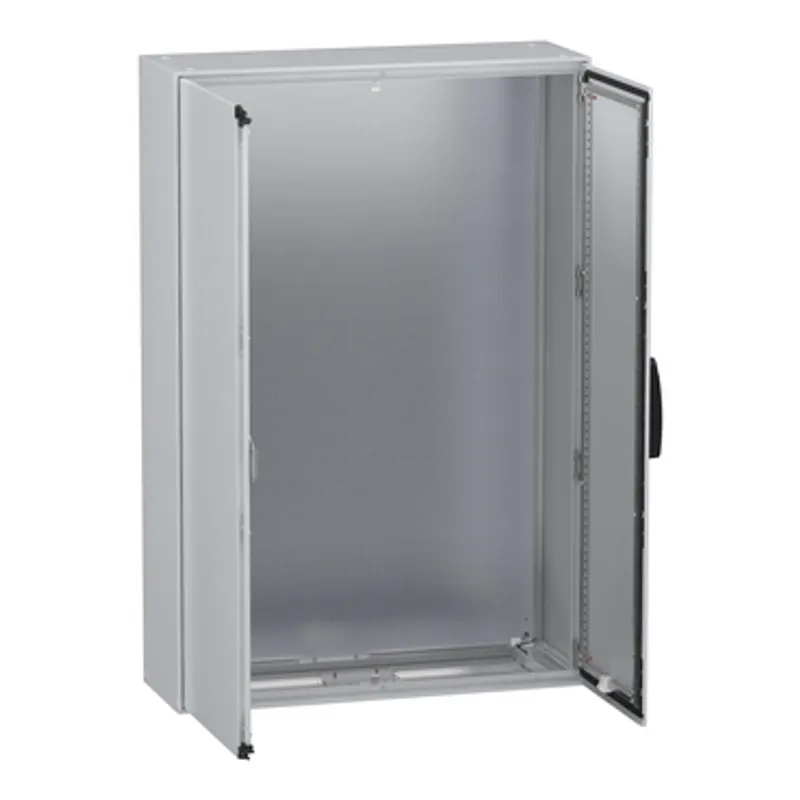

Spacial SM is a multi-purpose floor-standing compact enclosure made of sheet steel with a zamak hinge It is certified by DNV, UL and BV and designed for use in harsh environments with an IK10 rating (IEC 62262) and IP55 rating (IEC 60529) The enclosure has a nominal height, width and depth of 1400mm, 1200mm and 400mm respectively It is finished in grey (RAL 7035) with an epoxy-polyester powder surface finish and the handle is black (RAL 9005) The enclosure consists of a single piece body with a welded rear panel, two plain doors that can open up to 120°, two cable gland plates, four mounting plate brackets, a blocking system on the left door and a locking system with a handle with 5mm double bar insert The doors and the mounting plate brackets are removable for maintenance purposes
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SM |
| Product or component type | Compact enclosure |
| Application | Multi-purpose |
| Installation accessory type | Floor-standing |
| Device composition | 1 body, 2 door, 2 cable gland plate, 1 locking system with handle: door, 1 blocking system: left door, 4 mounting plate bracket |
| Removable parts | Door by screws hinge, Mounting plate bracket by screws |
| Enclosure nominal height | 1400 mm |
| Enclosure nominal width | 1200 mm |
| Enclosure nominal depth | 400 mm |
| Number of doors | Front: 2 door(s) |
| Door opening side | Left (120 °), Right (120 °) |
| Door type | Plain |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Body type | Single piece body with welded rear panel, Front part forming a rigid frame with welded corners |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| cable entry | 1 entry |
| Material | Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation | Front |
| Net weight | 81 kg |
| Standards | IEC 62208 |
| Product certifications | DNV, UL, BV |
| IK degree of protection | IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 153.000 cm |
| Package 1 Width | 125.000 cm |
| Package 1 Length | 49.000 cm |
| Package 1 Weight | 94.500 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 153.000 cm |
| Package 2 Width | 125.000 cm |
| Package 2 Length | 98.000 cm |
| Package 2 Weight | 189.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
