Schneider Electric NSYSFX201060

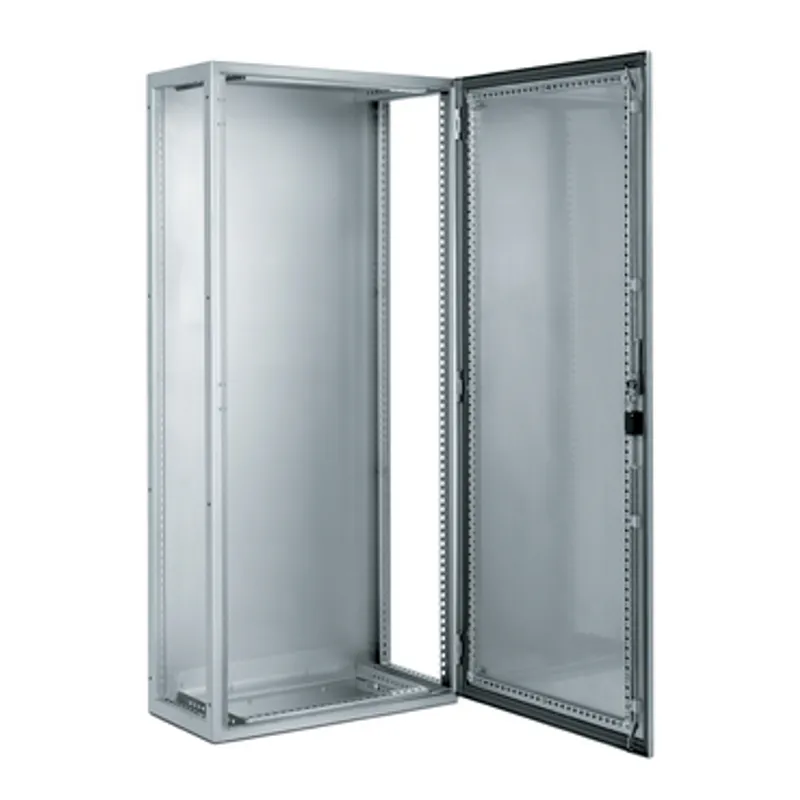

SFX 304L stainless suitable enclosure, H2000xW1000xD600mm, Scotch Brite® finish.
- MPN
- NSYSFX201060
- EAN
- 3606480155659
- Category
- PanelSeT SFX
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSFX201060?
"PanelSeT SFX stainless steel 304L floor-standing enclosure is designed for multi-purpose use and is resistant to corrosion" "It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP55 rating (IEC60529)" "This enclosure has a nominal height, width and depth of 2000mm, 1000mm and 600mm respectively" "The enclosure is made with a Scotch-Brite® brushed surface finish" "The enclosure consists of a structure, two plain doors with reinforcement frames, four mounting plate brackets, a cable gland plate and a locking system with handle on the door" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The enclosure has a three-point lock with a handle with 5mm double-bar insert" "The door, the cable gland plate and the mounting plate brackets can be removed for maintenance purposes" "The net weight of the enclosure is 105kg"
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SFX |
| enclosure type | Multi-purpose |
| category | Suitable enclosure |
| nominal height | 2000 mm |
| nominal width | 1000 mm |
| nominal depth | 600 mm |
| product installation | Floor-standing |
| Device composition | 1 structure, 2 door with reinforcement frame, 1 locking system with handle: door, 4 mounting plate bracket, 1 cable gland plate |
| Body type | Single piece structure folded and welded, Rear panel integrated |
| Door type | Plain |
| Number of doors | Front face: 2 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, handle with 5 mm double-bar insert |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Plain |
| Accessibility for operation | Front, Side |
| Removable parts | Door by hinges, Mounting plate bracket by screws, Cable gland plate by clips |
| Material | Structure and door: stainless steel 304L, Handle: zamak, Hinge: stainless steel |
| Surface finish | Enclosure: Scotch-Brite® brushed, Handle: painted |
| Net weight | 105 kg |
| Standards | IEC 62208 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Corrosive, Specific hygiene |
Packaging
| Package 1 | 1 PCE, 69.000 cm × 105.000 cm × 213.000 cm (L × W × H), 112.000 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSFX201060: frequently asked questions
When can NSYSFX201060 be shipped?
NSYSFX201060 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSFX201060 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSFX201060 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSFX201060, subject to availability and destination.
