Schneider Electric NSYSFX20840
SFX 304L stainless suitable enclosure, H2000xW800xD400mm, Scotch Brite® finish.
- MPN
- NSYSFX20840
- EAN
- 3606480155680
- Category
- PanelSeT SFX
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

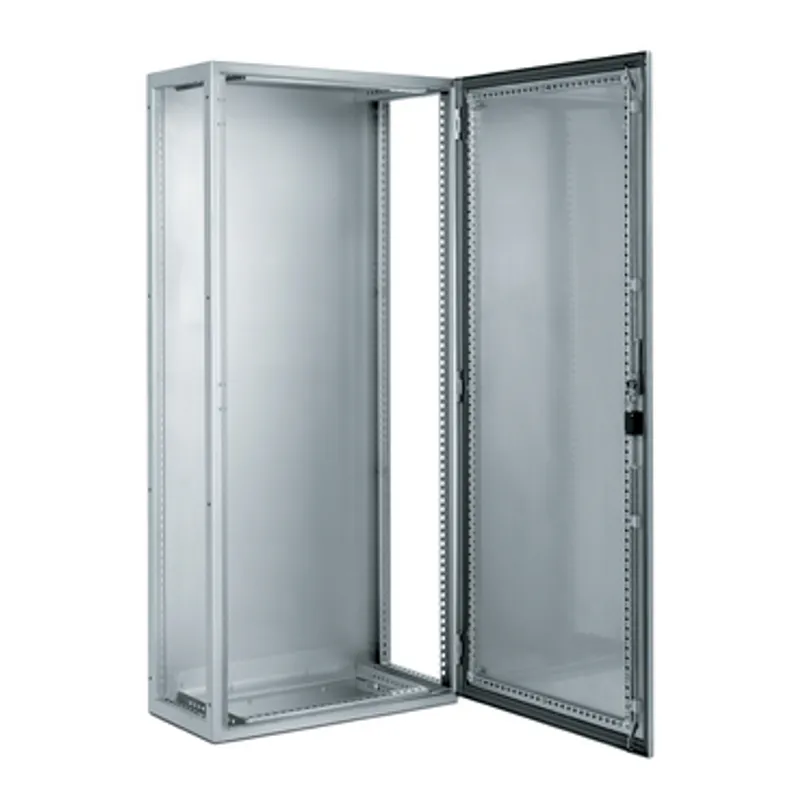

What is the Schneider Electric NSYSFX20840?
"PanelSeT SFX stainless steel 304L multi-purpose floor-standing enclosure is designed for use in harsh environments," "it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP55 rating (IEC60529)" "This enclosure has a nominal height, width and depth of 2000mm, 800mm and 400mm respectively" "The enclosure is made with a Scotch-Brite® brushed surface finish" "The enclosure consists of a structure, a cable gland plate, a plain door with reinforcement frame, four mounting plate brackets, and a locking system with handle on the door" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The enclosure has a three-point lock with a handle with 5mm double-bar insert" "The door, the cable gland plate and the mounting plate brackets can be removed for maintenance purposes" "The net weight of the enclosure is 90kg" "It is UL certified and meets the standards of IEC 62208 and NEMA 4X" "The enclosure is resistant to corrosive and specific hygiene environments" "It is accessible from the front and side for operation"
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SFX |
| enclosure type | Multi-purpose |
| category | Suitable enclosure |
| nominal height | 2000 mm |
| nominal width | 800 mm |
| nominal depth | 400 mm |
| product installation | Floor-standing |
| Device composition | 1 structure, 1 locking system with handle: door, 4 mounting plate bracket, 1 cable gland plate, 1 door with reinforcement frame |
| Body type | Rear panel integrated, Single piece structure folded and welded |
| Door type | Plain |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, handle with 5 mm double-bar insert |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Plain |
| Accessibility for operation | Front, Side |
| Removable parts | Door by hinges, Mounting plate bracket by screws, Cable gland plate by clips |
| Material | Structure and door: stainless steel 304L, Handle: zamak, Hinge: stainless steel |
| Surface finish | Enclosure: Scotch-Brite® brushed, Handle: painted |
| Net weight | 90 kg |
| Standards | IEC 62208, NEMA 4X |
| Product certifications | UL |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Corrosive, Specific hygiene |
Packaging
| Package 1 | 1 PCE, 49.000 cm × 85.000 cm × 213.000 cm (L × W × H), 91.000 kg |
