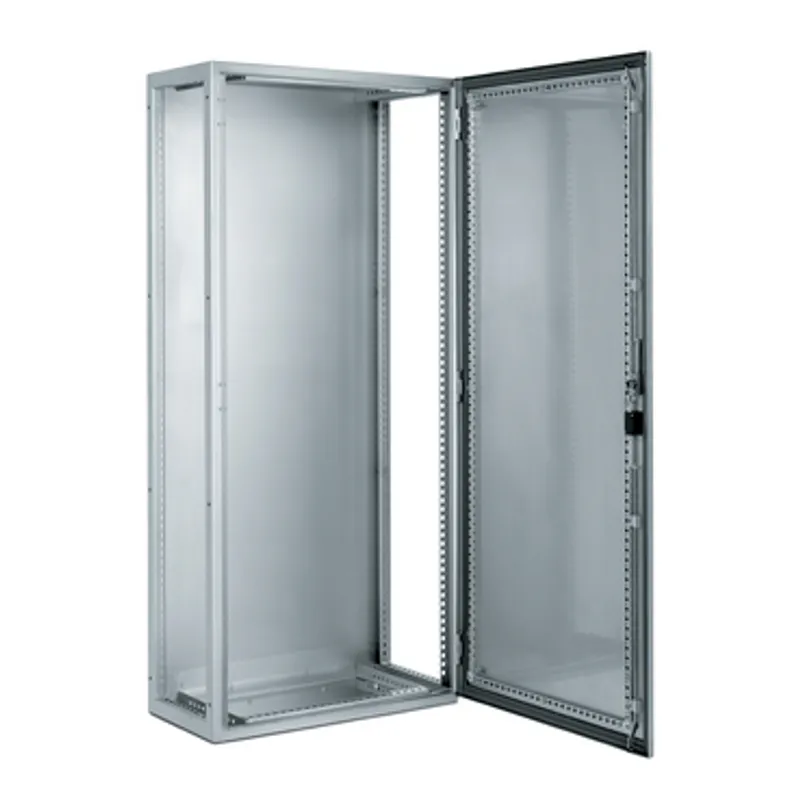

Schneider Electric NSYSFX20860
SFX 304L stainless suitable enclosure, H2000xW800xD600mm, Scotch Brite® finish.
- MPN
- NSYSFX20860
- EAN
- 3606480155697
- Category
- PanelSeT SFX
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSFX20860?
"PanelSeT SFX is a versatile, multi-purpose floor-standing enclosure made of stainless steel 304L with a Scotch-Brite® brushed surface finish for superior corrosion resistance" "It is designed for use in harsh environments, and can withstand high impact, dust, and water with an IK10 (IEC62262) and IP66 (IEC60529) rating respectively" "This enclosure has a nominal height, width and depth of 2000mm, 800mm and 600mm respectively, and is composed of a single piece structure folded and welded with a rear panel integrated" "It has one plain door with reinforcement frame, four mounting plate brackets, a cable gland plate, and a three-point lock with a handle with 5mm double-bar insert" "The door is reversible, allowing it to open up to 120° for easy access to the equipment inside" "It has removable parts such as the door by hinges, the mounting plate bracket by screws, and the cable gland plate by clips" "The net weight of the enclosure is 81kg, and it is compliant with industry standards such as IEC 62208 and NEMA 4X"
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SFX |
| enclosure type | Multi-purpose |
| category | Suitable enclosure |
| nominal height | 2000 mm |
| nominal width | 800 mm |
| nominal depth | 600 mm |
| product installation | Floor-standing |
| Device composition | 1 structure, 1 locking system with handle: door, 4 mounting plate bracket, 1 cable gland plate, 1 door with reinforcement frame |
| Body type | Rear panel integrated, Single piece structure folded and welded |
| Door type | Plain |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, handle with 5 mm double-bar insert |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Plain |
| Accessibility for operation | Front, Side |
| Removable parts | Door by hinges, Mounting plate bracket by screws, Cable gland plate by clips |
| Material | Structure and door: stainless steel 304L, Handle: zamak, Hinge: stainless steel |
| Surface finish | Enclosure: Scotch-Brite® brushed, Handle: painted |
| Net weight | 81 kg |
| Standards | IEC 62208, NEMA 4X |
| Product certifications | UL |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Specific hygiene, Corrosive |
Packaging
| Package 1 | 1 PCE, 69.000 cm × 85.000 cm × 213.000 cm (L × W × H), 98.000 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSFX20860: frequently asked questions
When can NSYSFX20860 be shipped?
NSYSFX20860 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSFX20860 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSFX20860 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSFX20860, subject to availability and destination.
