Schneider Electric NSYSFX181240

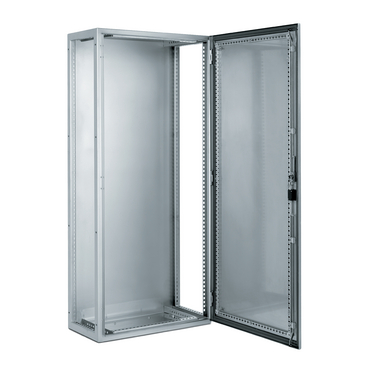

SFX 304L stainless suitable enclosure, H1800xW1200xD400mm, Scotch Brite® finish.

MPN: NSYSFX181240
EAN: 3606480155628
Category: PanelSeT SFX

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSFX181240?

"PanelSeT SFX is a stainless steel 304L multi-purpose floor-standing enclosure designed for use in harsh environments and resistance to corrosion" "It has a nominal height, width and depth of 1800mm, 1200mm and 400mm respectively" "The enclosure is made with a Scotch-Brite® brushed surface finish" "The enclosure consists of a structure, two doors with reinforcement frames, four mounting plate brackets, a cable gland plate and a locking system with handle on the door" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The enclosure has a three-point lock with a handle with 5mm double-bar insert" "The door, the cable gland plate and the mounting plate brackets can be removed for maintenance purposes" "The net weight of the enclosure is 120kg" "It has an IK10 rating (IEC62262) and an IP55 rating (IEC60529) for a high resistance to dust and water" "It is accessible from both the side and front, making it easy to work with"

Specifications

Range	PanelSeT
Product name	PanelSeT SFX
enclosure type	Multi-purpose
category	Suitable enclosure
nominal height	1800 mm
nominal width	1200 mm
nominal depth	400 mm
product installation	Floor-standing
Device composition	1 structure, 2 door with reinforcement frame, 1 locking system with handle: door, 4 mounting plate bracket, 1 cable gland plate
Body type	Single piece structure folded and welded, Rear panel integrated
Door type	Plain
Number of doors	Front face: 2 door(s)
Door opening side	Reversible (120 °)
Lock type	3 points lock, handle with 5 mm double-bar insert
Mounting plate description	Without mounting plate
Type of gland plate	Plain
Accessibility for operation	Side, Front
Removable parts	Door by hinges, Mounting plate bracket by screws, Cable gland plate by clips
Material	Structure and door: stainless steel 304L, Handle: zamak, Hinge: stainless steel
Surface finish	Enclosure: Scotch-Brite® brushed, Handle: painted
Net weight	120 kg
Standards	IEC 62208
IP degree of protection	IP55 conforming to IEC 60529
IK degree of protection	IK10 conforming to IEC 62262
Environmental characteristic	Corrosive, Specific hygiene

Packaging

Package 1

1 PCE, 49.000 cm × 125.000 cm × 193.000 cm (L × W × H), 117.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYSFX181240PDF

NSYSFX181240: frequently asked questions

When can NSYSFX181240 be shipped?

NSYSFX181240 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYSFX181240 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYSFX181240 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSFX181240, subject to availability and destination.
