Schneider Electric NSYSFPSC80

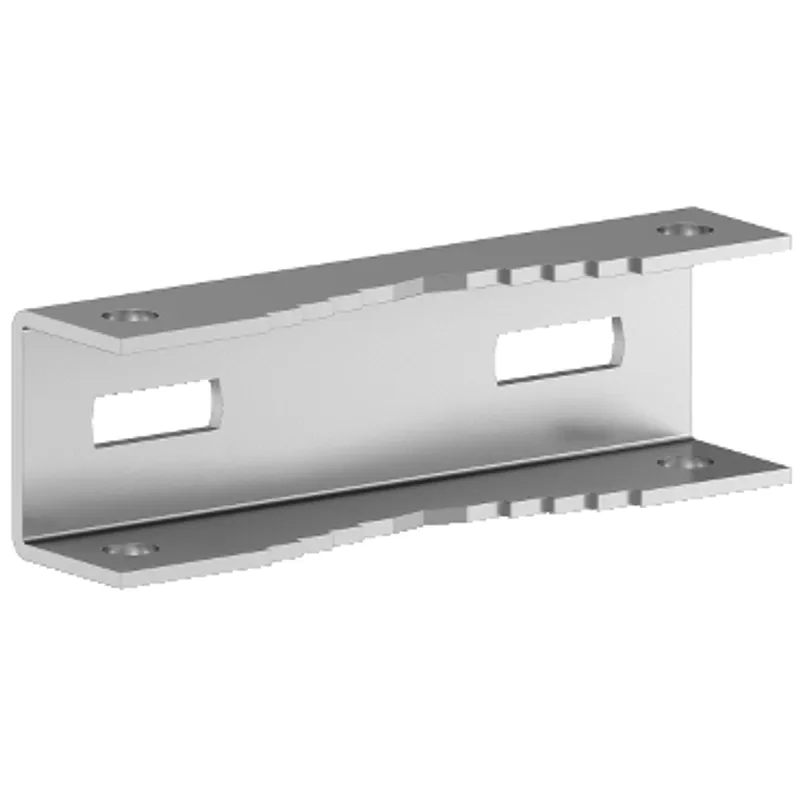

Post fixing device WM PanelSeT, length 800. For post max 675. Max. Load:100kg.
- MPN
- NSYSFPSC80
- EAN
- 3606480198908
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSFPSC80?
Schneider Electric Post fixing device WM PanelSeT, length 800. For post max 675. Max. Load:100kg., manufacturer part number NSYSFPSC80. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Fixing accessory |
| Product or component type | Post fixing device |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting location | Rear of enclosure |
| Range compatibility | PanelSeT PanelSeT S3D, PanelSeT PanelSeT SBM, PanelSeT PanelSeT CRN |
| Device composition | Fixing elements, 2 support rail, 2 strip |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing element - screw type M8 - to the inserts in the rear of the enclosure location, Minimum diameter 150 mm, Maximum diameter 215 mm |
| Permanent permissible load | 100 kg |
| Height | 45 mm |
| Width | 795 mm |
| Depth | 32.5 mm |
| Net weight | 4 kg |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 80.000 cm × 15.000 cm × 5.000 cm (L × W × H), 4.034 kg |
| Package 2 | 10 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 40.340 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSFPSC80: frequently asked questions
When can NSYSFPSC80 be shipped?
NSYSFPSC80 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSFPSC80 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSFPSC80 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSFPSC80, subject to availability and destination.
