Schneider Electric NSYSFTB24

Lifting bar, PanelSeT SFN, PanelSeT SF, L2400mm , steel , set of 2

MPN: NSYSFTB24
EAN: 3606485131856
Category: PanelSet SF

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSFTB24?

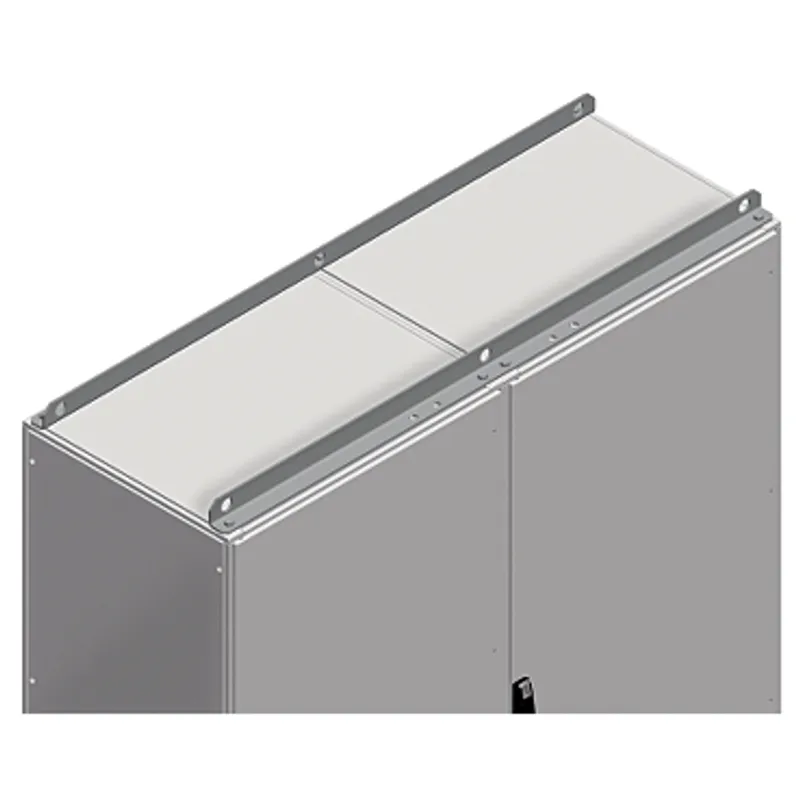

This is a set of bars for lifting and transporting PanelSeT SFN, PanelSeT SFN for motor control centers, PanelSeT SF, PanelSeT SFHD and PanelSeT SFM electrical enclosures. It is designed to be fixed to the structure of the enclosure in the axis of the uprights. The bars are made of zinc-coated steel. The nominal length is 2400mm and the real length is 2395mm. The Maximum load is 3000kg. The kit contains 2 lifting bars and the fixing elements.

Specifications

Area	PanelSeT
category	Lifting accessory
Product or component type	Lifting bar
Application	Multi-purpose
Mounting location	Enclosure top
Mounting support	Directly in the axis of the uprights
Range compatibility	PanelSeT PanelSeT SF, PanelSeT PanelSeT SFHD, PanelSeT PanelSeT SFM
Device composition	2 lifting bars, fixing elements
Quantity per set	Set of 1
Material	Steel
Surface finish	Zinc coated
Fixing mode	By screws - screw type M12
Permanent permissible load	3000 kg
Length	Nominal: 2400 mm, Real: 2395 mm
Height	60 mm
Depth	60 mm
Diameter	32 mm
Coverage	Core product

Packaging

Package 1	1 PCE, 289.000 cm × 12.000 cm × 9.500 cm (L × W × H), 40.000 kg
Package 2	10 PAL, 289.000 cm × 12.000 cm × 95.000 cm (L × W × H), 400.000 kg
