Schneider Electric
NSYSFP500Post fixing device galvanized steel post diam. max 215mm load 100kg for PLM75
Schneider Electric NSYSFPSC40

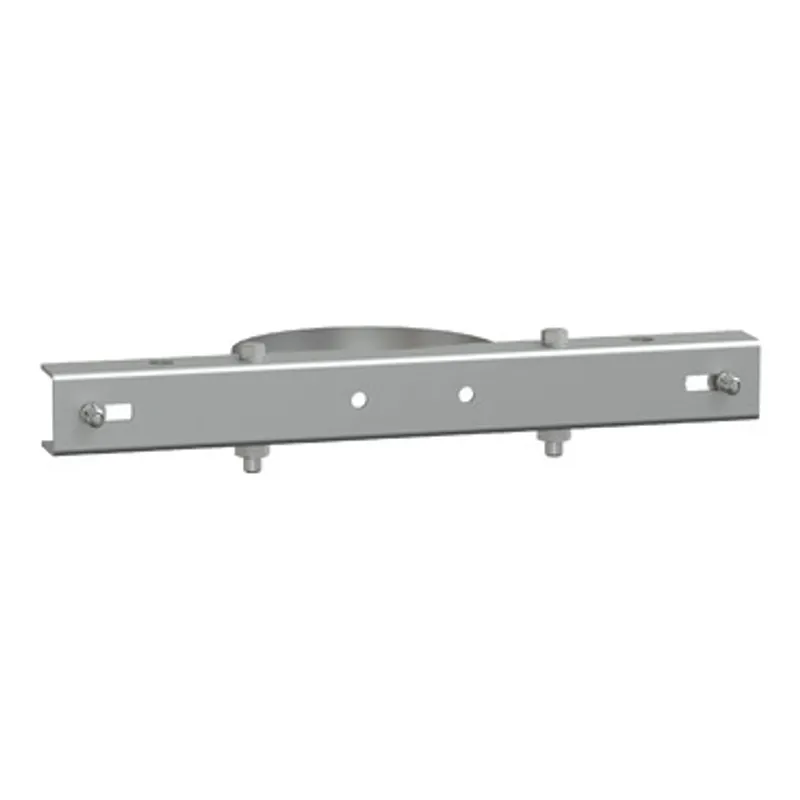

Post fixing device WM PanelSeT, length 400. For post max 675. Max. Load:100kg.
- MPN
- NSYSFPSC40
- EAN
- 3606480198939
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSFPSC40?
Schneider Electric Post fixing device WM PanelSeT, length 400. For post max 675. Max. Load:100kg., manufacturer part number NSYSFPSC40. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Fixing accessory |
| Product or component type | Post fixing device |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting location | Rear of enclosure |
| Range compatibility | PanelSeT S3D, PanelSeT SBM, PanelSeT CRN |
| Device composition | Fixing elements, 2 support rail, 2 strip |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing element - screw type M8 - to the inserts in the rear of the enclosure location, Minimum diameter 150 mm, Maximum diameter 215 mm |
| Permanent permissible load | 100 kg |
| Height | 45 mm |
| Width | 395 mm |
| Depth | 32.5 mm |
| Net weight | 2.4 kg |
Packaging
| Package 1 | 1 PCE, 40.500 cm × 22.000 cm × 5.000 cm (L × W × H), 1.999 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSFPSC40: frequently asked questions
When can NSYSFPSC40 be shipped?
NSYSFPSC40 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSFPSC40 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSFPSC40 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSFPSC40, subject to availability and destination.
