Schneider Electric NSYSFPSC50

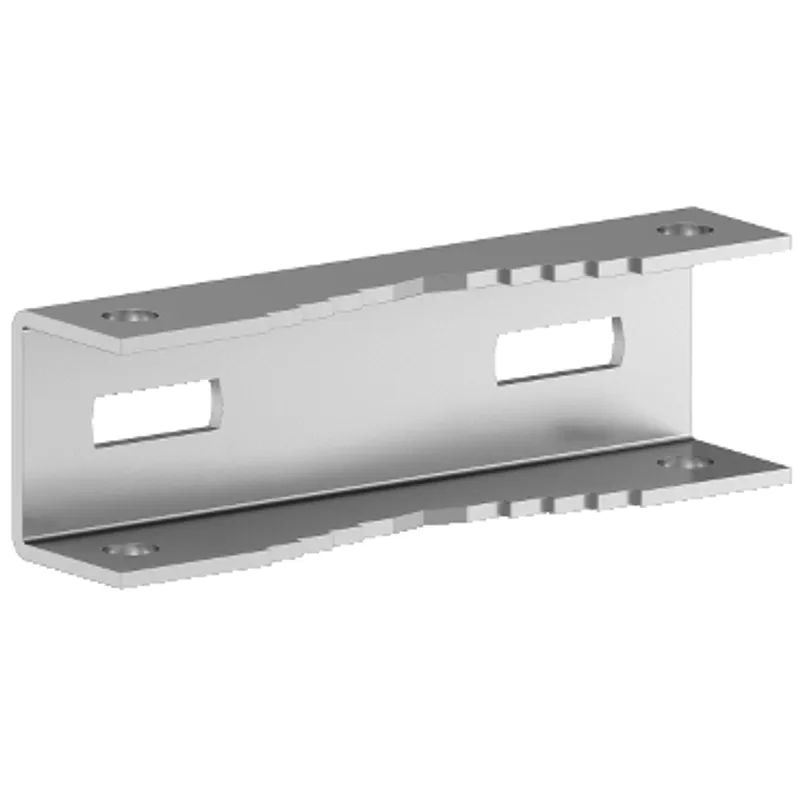

Post fixing device WM PanelSeT, length 500. For post max 675. Max. Load:100kg.
- MPN
- NSYSFPSC50
- EAN
- 3606480198922
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSFPSC50?
Schneider Electric Post fixing device WM PanelSeT, length 500. For post max 675. Max. Load:100kg., manufacturer part number NSYSFPSC50. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Fixing accessory |
| Product or component type | Post fixing device |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting location | Rear of enclosure |
| Range compatibility | PanelSeT PanelSeT S3D, PanelSeT PanelSeT SBM, PanelSeT PanelSeT CRN |
| Device composition | Fixing elements, 2 support rail, 2 strip |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing element - screw type M8 - to the inserts in the rear of the enclosure location, Minimum diameter 150 mm, Maximum diameter 215 mm |
| Permanent permissible load | 100 kg |
| Height | 45 mm |
| Width | 495 mm |
| Depth | 32.5 mm |
| Net weight | 2.588 kg |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 51.000 cm × 20.000 cm × 3.500 cm (L × W × H), 2.588 kg |
| Package 2 | 200 PAM, 120.000 cm × 100.000 cm × 120.000 cm (L × W × H), 520.000 kg |
